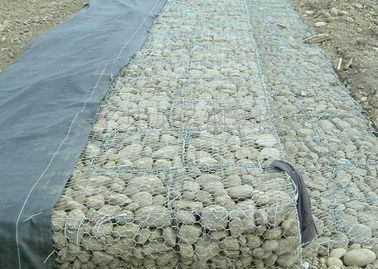

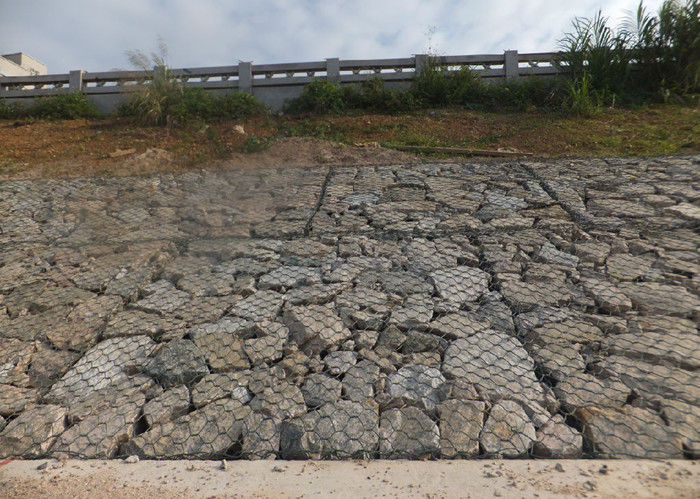

Erosion Control Reno Gabion Mattress / Woven Mesh Gabions Pvc Coated

Erosion Control Reno Gabion Mattress / Woven Mesh Gabions Pvc Coated
Erosion Control Reno Gabion Mattress / Woven Mesh Gabions Pvc Coated Erosion Control Reno Gabion Mattress / Woven Mesh Gabions Pvc Coated

Large Image :  Erosion Control Reno Gabion Mattress / Woven Mesh Gabions Pvc Coated

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-028
Payment & Shipping Terms:
Minimum Order Quantity: 1000 sets
Price: Negotiable
Packaging Details: Covered with plastic, in pallet.
Delivery Time: 5-10 days, according to buyer's requirement
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets per week
Detailed Product Description
Wire Diameter: 2.0-4.0mm Mesh Size: 60*80,80*100,100*120,120*150mm Etc
Size: 3x2x0.17m 3x2x0.23m 3x2x0.30m Etc Feature: Flexible And Easy Install
Type: Woven Mesh Material: Pvc Coated Wire Etc
Surface: PVC Or PE
High Light:

metal welded wire mesh

,

gabions and es

Pvc coated erosion control reno gabion mattress / woven mesh gabions



Product Description:



Gabions and rock mattresses are baskets or cages manufactured from heavily galvanized wire, The compartment or cells of the are of equal size and dimension and are formed by internal diaphragms



Sizes of gabion mattress/:



Standard sizes: 6x2x0.17m 6x2x0.23m 6x2x0.30m 3x2x0.17m 3x2x0.23m 3x2x0.30m
Mesh size(mm): 60x80mm,80x100mm,100x120mm,120x150mm
Wire diameter: 2.2mm/3.2mm,2.4mm/3.4mm,2mm/3.0mm



Gabion Mattress/Reno Gabion Mattress



Length(m) Width(m) Height(m) Mesh type(mm)
3m 2m 0.15-0.20-0.25 80x100
4m 2m 0.15-0.20-0.25 80x100
5m 2m 0.15-0.20-0.25 80x100
6m 2m 0.15-0.20-0.25 80x100
3m 2m 0.17-0.23-0.30 60x80
4m 2m 0.17-0.23-0.30 60x80
5m 2m 0.17-0.23-0.30 60x80
6m 2m 0.17-0.23-0.30 60x80



(All sizes and dimensions are nominal. Tolerances of ± 3% of the width, length, and ±2.5 cm of the height shall be permitted.)



How to built gabion mattress?



Step 1 Erosion Control


Individual Mattress is first unfolded on flat, hard ground and stamped to remove all kinks. The two long sides and both end panels are then lifted upright and secured in position by tying the selvedge wires together.



Step 2 Assembly


The vertical edges of all internal diaphragms are attached to the sides and laced with typing wire or approved interlocking wire fastener.



Step 3 Slopes River Beds


The assembled Mattress is then aligned in the required position and tied or fastened to adjacent mattress along the whole length of selvedge wire. Mattress units should be placed in proper position so that movement of rock fill inside the cage -- due to gravity or flowing current -- is minimal. Thus, on slopes, Mattresses should be placed with its internal diaphragms at right angles to the direction of the slope. On river beds, position Mattress with the internal diaphragms at right angles to the direction flow.



Step 4 Hexagonal Mesh


The stone is placed into the compartments (cells). If it's a slope, start from the bottom. One or more Mattresses can be filled at the same time.



Step 5 Erosion Control


Sequence the installation by keeping the stone filling crew well ahead of the lid placement crew. Lids or top panels must be securely tied or fastened to side-tops and end panels and also to the top of the inner partitions.



Step 6 Form Cut Assembly


The Mattresses may be either telescoped or cut to form and tied at required shape when necessary, e.g. when Mattresses are laid on a radius. For a sharp curve, it may be necessary to cut the Mattress diagonally into triangular sections and tie the open side securely to an intact side panel.



Gabion mattress application:



Retaining walls
Weirs and drop structures
Culvert protection
Wing walls
Bridge abutment protection
Channel lining
Chutes and spillways
Landscaping
Rockfall protection netting (mesh)
Erosion control and stabilization.



Packing & Delivery:



Packing Details: In pallet or in bundle, as buyer's requirement.

Delivery Details: 5-10 Days after received the deposit by TT, according to buyer's quantity.
