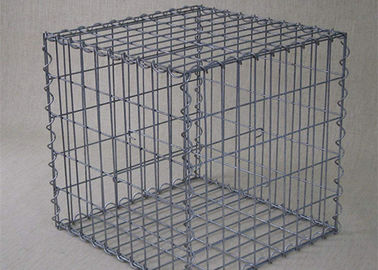

Lightweight Welded Mesh Gabions 50x50 Mm / 75x75 Mm / 100x50 Mm Size

Lightweight Welded Mesh Gabions 50x50 Mm / 75x75 Mm / 100x50 Mm Size
Lightweight Welded Mesh Gabions 50x50 Mm / 75x75 Mm / 100x50 Mm Size Lightweight Welded Mesh Gabions 50x50 Mm / 75x75 Mm / 100x50 Mm Size

Large Image :  Lightweight Welded Mesh Gabions 50x50 Mm / 75x75 Mm / 100x50 Mm Size

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-065
Payment & Shipping Terms:
Minimum Order Quantity: 50 sets
Price: Negotiable
Packaging Details: Covered with plastic and then put on wooden pallet
Delivery Time: 10-15 days, according to buyer's requirement
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets per week
Detailed Product Description
Hole Size: 75*75,50*50,100*100mm Type: Weldeding
Surface: Galvanized, Galfan Coated Color: Silver
Wire Diameter: 3.0-6.0mm Size: 1*1*1,2*1*1,3*1*1m Etc
High Light:

gabion rock wall cages

,

gabion planter box

Galfan coating welded mesh gabions for retaining of riverbank and soils



Product Description:



Welded mesh gabions are made of welded wire mesh fabrics. This type of mesh is more resistant and is hot-dip galvanized wire and Galfan wire, Galfan coating type is the most durable wire coating available internationally, can be ensure gabion structures achieve a far longer design life, Welded mesh gabions are uniformly welded and can be supplied of various sizes.





Welded Gabion specifications
Wire diameter:3.0-6.0mm
Size M Mesh size MM DiaphragmsNo. CBM
1.0*1.0*0.5 50*50 75*75 50*100 100*100 0 0.5
1.0*1.0*1.0 0 1.0
1.5*1.0*0.5 0 0.75
1.5*1.0*1.0 0 1.5
2.0*1.0*0.5 1 1.0
2.0*1.0*1.0 1 2.0
3.0*1.0*0.5 2 1.5
3.0*1.0*1.0 2 3.0
4.0*1.0*0.5 3 2.0
4.0*1.0*1.0 3 4.0
The specifications can be customized.



Material: Low carbon iron wire,steel wire, stainless steel wire etc
Mesh Size: 50x50mm, 75x75mm, 100x50mm, 100x100mm
Box Size: 2x1x0.5m, 1x0.5x0.5m, 1x0.6x0.4m etc.
Diameter: 3.0-6.0mm



How to install welded gabion box:



After checking you have all the components, open out the mesh panels.

Lift the side panels into vertical position and join by feeding the correct length of helical formed spiral into the corner, using a rotating action, until the helical is fully engaged.



When the helical is fully engaged, the formed end should lock in place.



All panel joints (vertical joints) are formed by assembling to the adjacent panel. Each joint is retained with one helical.



Repeat the filling and stiffener wire installation until the gabion is full and then close the lid by joining with the correct helical while ensuring the top mesh bears down on the rock fill.



Welded mesh gabions benefits:



Flexibility: Subjected to alternating forces of tension and compression, the inherent flexibility of a gabion structure enables it to deform rather than break.



Strength: Since gabions are bound together as a monolithic unit, the wire mesh is extremely strong under tension.



Permeability: Interstitial spaces in the stone fill within the baskets provide a great degree of permeability throughout the structure eliminating.



Economy: Wire mesh gabions are less expensive than most construction materials, Gabion structures are virtually maintenance free and very easy to install.



Applications:



Gabions made of welded wire fabrics offer much strength compared with woven wire gabions while they have similar flexibility, Welded gabions can be connected with other similar containers and filled with stone to form flexible and permeable structures for retaining of riverbank and soils.



Packing details



Packing: In pallet or in bundle, put in wooden case or cartons,as buyer's requirement.



Lightweight Welded Mesh Gabions 50x50 Mm / 75x75 Mm / 100x50 Mm Size 0
