Heavy Zinc Coated Wire Mesh 100 * 100 Mm Corrosion Resistant Performance

Heavy Zinc Coated Wire Mesh 100 * 100 Mm Corrosion Resistant Performance
Heavy Zinc Coated Wire Mesh 100 * 100 Mm Corrosion Resistant Performance Heavy Zinc Coated Wire Mesh 100 * 100 Mm Corrosion Resistant Performance

Large Image :  Heavy Zinc Coated Wire Mesh 100 * 100 Mm Corrosion Resistant Performance

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-072
Payment & Shipping Terms:
Minimum Order Quantity: 50 sets
Price: Negotiable
Packaging Details: Covered with plastic and then put on wooden pallet
Delivery Time: 10-15 days, or according to buyer's requirement
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets per week
Detailed Product Description
Hole Size: 75*75,50*50,100*100mm Color: Silver
Wire Diameter: 3.0-6.0mm Size: 1*1*1,2*1*1,3*1*1m Etc
Hole Shape: Square Type: Welded Mesh
Applications: Landscaping Gabion Baskets
High Light:

gabion rock wall cages

,

galvanised steel stone cage

Heavy zinc coated welded gabion / welded mesh gabions for landscaping



Product Description:

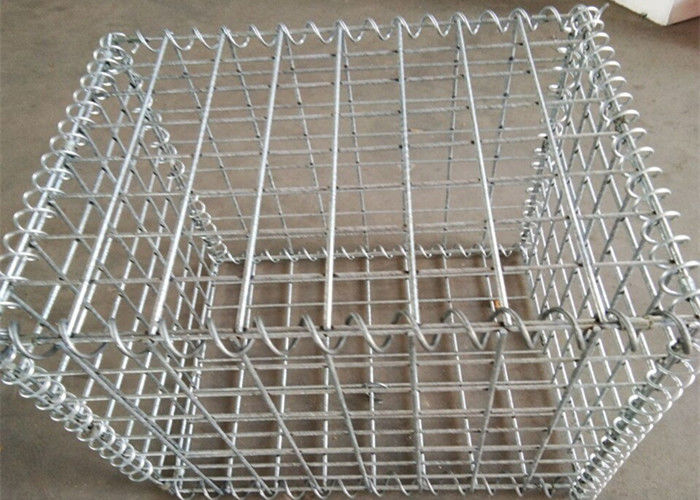

Welded Gabions is made of welded wire mesh panels assembled with spirals, locking pins and stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.



The wire is also available with galfan coated, Welded mesh gabion could be used for prefilled on site construction which is quick and easy. They have a variety of applications such as retaining walls for commercial, industrial and road project, landscaping, erosion control.



Welded Gabion
Wire Diameter 3.0-6.0mm
Mesh Opening 50 x 50mm 75 x 75mm 100 x 100mm
Dimension 1m x 1m x 1m 2m x 1m x 1m 3m x 1m x 1m



Surface Treatment: Zinc Coated Welded Gabion, PVC Coated Welded Gabion,Galfan Coated Welded Gabion



How to install welded gabion box:



After checking you have all the components, open out the mesh panels.

Lift the side panels into vertical position and join by feeding the correct length of helical formed spiral into the corner, using a rotating action, until the helical is fully engaged.



When the helical is fully engaged, the formed end should lock in place.



All panel joints (vertical joints) are formed by assembling to the adjacent panel. Each joint is retained with one helical.



Repeat the filling and stiffener wire installation until the gabion is full and then close the lid by joining with the correct helical while ensuring the top mesh bears down on the rock fill.



Welded mesh stone cage benefits:



Economical
Durable
Modular
Anti-corrosive
Easy installation
Not need maintenance



Applications of welded gabion box:

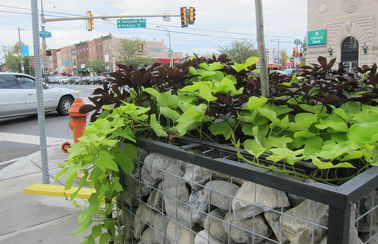

Gabions made of welded wire fabrics offer much strength compared with woven wire gabions while they have similar flexibility, Welded gabions can be connected with other similar containers and filled with stone to form flexible and permeable structures for retaining of riverbank and soils,Gabions are also used extensively as architectural cladding to buildings.



Packing details



Packing: In pallet or in bundle, put in wooden case or cartons, or as buyer's requirement.



Heavy Zinc Coated Wire Mesh 100 * 100 Mm Corrosion Resistant Performance 0
