Product Details:
Payment & Shipping Terms:
|
| Wire Diameter: | 2.0-4.0mm | Hole Size: | 60*80,80*100,100*120 Etc |
|---|---|---|---|
| Hole Shape: | Hexagonal | Surface Treatment: | PVC Or PE Coated |
| Usage: | Coastal Protection | Service Life: | More Than 50 Years |
| Size: | Accroding To Buyer's Requirement | ||
| High Light: | plastic coated wire mesh baskets,pvc coated gabion box |
||

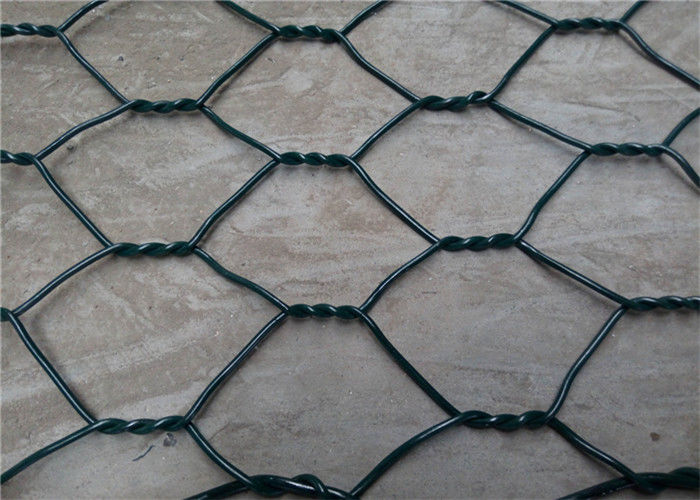

PVC coated gabion box for coastal protection / woven mesh gabions
Gabion is a cage, cylinder, or box filled with rocks, concrete, or sometimes sand and soil for use in civil engineering, road building, and military applications. It is a Double Twisted Hexagonal Steel Wire PVC Coated container of variable sizes, uniformly partitioned into internal cells, inter-connected with other similar units, and filled with stone at the project site to form flexible, permeable monolithic structures, PVC or PE coated can let it more Anti-corrosion, and used in the humid environment, like riverside, seacoast, and rainy places etc.
Advantages
Ease of Handling and transportation
Blends easily with the netural surroundings
Speeds of construction
Flexibility
Higher resistance to natural forces dut to better tensile strength
permeability to water
The size and specifications can be customized
Gabions offer an easy to use method for decreasing water velocity and protecting slopes from erosion
PVC coated gabion mesh box & mattress
| Wire diameter/mm | Mesh size /mm | Size/m | No. of diaphragms | Deviation |
| 2.0-5.0 |
60*80 80*100 90*110 100*120 120*150 |
1*1*0.3 | 0 | ± 5% |
| 1*1*0.5 | 0 | |||
| 1*1*1 | 0 | |||
| 2*1*0.3 | 1 | |||
| 2*1*0.5 | 1 | |||
| 2*1*1 | 1 | |||
| 3*1*0.3 | 2 | |||
| 3*1*0.5 | 2 | |||
| 3*1*1 | 2 | |||
| 4*1*0.3 | 3 | |||
| 4*1*0.5 | 3 | |||
| 4*1*1 | 3 | |||
| 2*0.5*0.5 | 1 | |||
| 3*0.5*0.5 | 2 | |||
| Customized according to buyer's requirement. | ||||
