| Material:: | Galvanized Steel Wire | Type:: | Weave Wire Mesh |
|---|---|---|---|
| Weave Style:: | Plain Weave | Mesh Size:: | 60*80mm |
| Wire Rope:: | 8mm,10mm,11mm... | Wire Diameter：: | 1.5mm |
| Surface Treatment:: | Galvanized | ||
| High Light: | flexible metal netting,metal ring mesh |
||

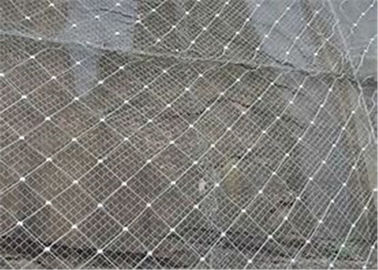

Galvanized Steel Wire Defend Slope Fence Mesh/Protection Wire Mesh Netting for slope
Product description

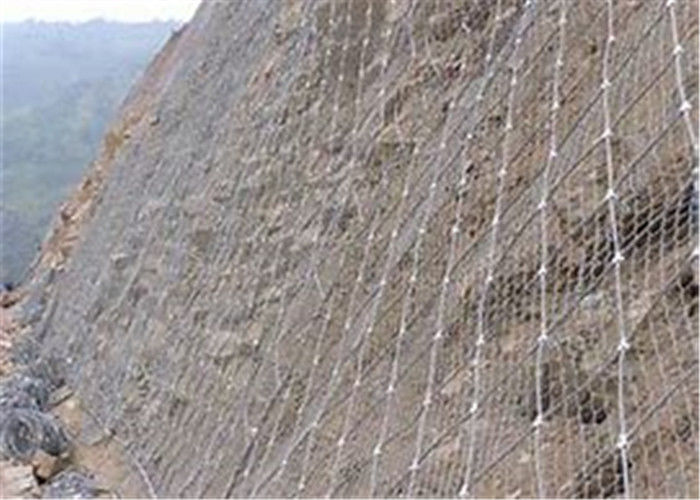

Made with steel wire ropes as major components, the covering protection type is called active system while the holding protection type is called passive system to prevent geological disasters of various slopes and avalanche slope, bank erosion, blasting stone fly, falling objects and other hazards.
Rock fall protective fences protect the formation of the regional slope, and prevent the collapse of the rock fall.
slope protection wire mesh specification
| Opening(mm) | Wire diameter(metal wire)(mm) | Wire diameter(PVC coate)/inner/outside*(mm) | strands |
| 60*80 | Ø2.0-2.8 | Ø2.0/3.0-2.5/3.5 | 3 |
| 80*100 | Ø2.0-3.2 | Ø2.0/3.0-2.8/3.8 | 3 |
| 80*120 | Ø2.0-3.2 | Ø2.0/3.0-2.8/3.8 | 3 |
| 100*120 | Ø2.0-3.4 | Ø2.0/3.0-2.8/3.8 | 3 |
| 100*150 | Ø2.0-3.4 | Ø2.0/3.0-2.8/3.8 | 3 |
| 120*150 | Ø2.0-4.0 | Ø2.0/3.0-3.0/4.0 | 3 |
Advantages:
Original slope geometry is maintained.
Re-vegetation is possible.
Prevents water pressure buildup.
Aesthetically more acceptable than other conventional measures.
Applications:
Local stability of slope
Rockfall protection
Landslide mitigation.
