Stainless Steel spiral rope mesh net system,slope protection Wire Mesh
Product description
Material: SUS302,304,316,316L,310,310S
Woven type:plain, twill, dutch
Wire diameter: 1/8", 3/32", 1/16", 3/64"
Wire Diameter type : 7x7 (Dia.: 1.2 - 2.5mm),
7x19 (Dia.: 3.0 - 4.0mm)

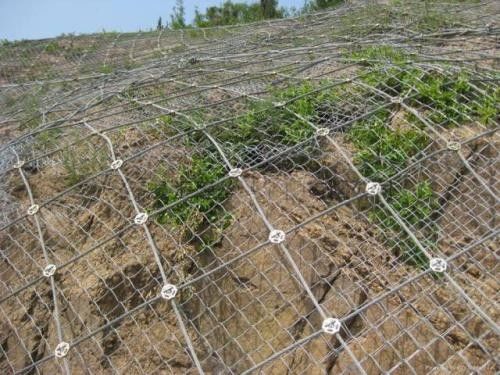

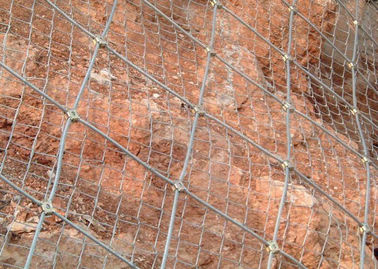

The Spider shaped spiral net of high-tensile 3 mm steel wire strand secures loose rocks, rock spurs and overhangs, also unstable rock formations with a very irregular surface structure and coarse block weathering. Spider shaped net stabilizes large areas of rock with a nail grid and boundary ropes. Isolated unstable blocks are wrapped with the spiral net and anchored all around with boundary ropes.
Stainless Steel spiral rope mesh net system,slope protection Wire Mesh have high tensile strength and are useful for rockfall protection among other applications. It can be used for stabilizing slopes by pinning them with a combination of mesh and rock or soil anchors, as well as installed as a drape to control erosion. Thus, the frequency and magnitude of events such as rockfall and shallow slumps can be controlled.
| Commonly specifications of rockfall barrier system | ||||||
| Item | Net size | Supporting rope | Upper anchor rope | Anchor rope | Sewing rope | Loading capacity |
| RX-025 | Wire diameter: 8 mm. Mesh size: 250 mm × 250 mm |
12 mm double steel wire rope. Each spacer has 3 decompression rings |
16 mm single steel wire rope. 1 decompression ring |
12 mm single steel wire rope | 8 mm | ≤ 250 kJ |
| RX-050 |
Wire diameter: 8 mm. Mesh size: 200 mm × 200 mm |
16 mm double steel wire rope. Each spacer has 6 decompression rings |
14 mm single steel wire rope. 1 decompression ring |
16 mm single steel wire rope | 8 mm | ≤ 500 kJ |
| RX-075 | Wire diameter: 8 mm. Mesh size: 150 mm × 150 mm |
18 mm double steel wire rope. Each spacer has 10 decompression rings |
18 mm single steel wire rope. 2 decompression ring |
18 mm single steel wire rope | 8 mm | ≤ 750 kJ |
| RXI-025 | Circle quantity: 5. Wire diameter: 3 mm. Circle diameter: 300 mm. |
18 mm single steel wire rope | 16 mm single steel wire rope | 16 mm single steel wire rope | 8 mm | ≤ 250 kJ |
| RXI-050 | Circle quantity: 7. Wire diameter: 3 mm. Circle diameter: 300 mm. |
22 mm single steel wire rope | 18 mm single steel wire rope | 18 mm single steel wire rope | 8 mm | ≤ 500 kJ |
| RXI-075 | Circle quantity: 5. Wire diameter: 3 mm. Circle diameter: 300 mm |
16 mm double steel wire rope. Each spacer and each metal column has 1 decompression rings. Total is 6 decompression ring |
14 mm single steel wire rope. 1 decompression ring |
14 mm single steel wire rope | 8 mm | ≤ 750 kJ |
| RXI-100 | Circle quantity: 9. Wire diameter: 3 mm. Circle diameter: 300 mm. |
18 mm double steel wire rope. Each spacer and each metal column has 1 decompression rings. Total is 6 decompression ring |
16 mm single steel wire rope. 1 decompression ring |
16 mm single steel wire rope | 12 mm | ≤ 1000 kJ |
| RXI-150 | Circle quantity: 12. Wire diameter: 3 mm. Circle diameter: 300 mm. |
22 mm double steel wire rope. Each spacer and each metal column has 1 decompression rings. Total is 6 decompression ring. |
18 mm single steel wire rope. 1 decompression ring |
18 mm single steel wire rope | 12 mm | ≤ 1500 kJ |
| RXI-200 | Circle quantity: 19. Wire diameter: 3 mm. Circle diameter: 300 mm. |
18 mm double steel wire rope. Each spacer and each metal column has 1/2 decompression rings. Total is 8 decompression ring. |
18 mm single steel wire rope. 1 decompression ring |
18 mm single steel wire rope | 14 mm | ≤ 2000 kJ |
Standard Specification:
SPIDER spiral rope net:
Rope wire structure:3*3mm,
Hole Inscribed circle diameter: 250mm (+/- 5%)
Roll size: 3.5m x 5/10m
Grid net:
Wire diameter: 2.0mm or 2.2mm
Hole size: 50mm*50mm
Roll size: 2m*20m
Anchors:
Deformed steel bar anchor diameter: 25mm or 28mm
Length:2m -5m
Anchor bearing plate: 320mm x 170/180mm
Rope:
Border rope diameter: 12mm or 16mm
Seaming rope diameter: 8mm
Features:
Free choice of anchor points.
Tensile strength:1770N/mm2.
More than 250g/m2 zinc coated
Fast mounting of the spiral rope net rolls over large areas.
Suitable for reinforcing existing protection measures
Practically invisible when the vegetation is established.
Applications: landslide protection , used for slope erupting,wind corrosive,stock sliping and some other geological disasters.it can be easily installed at variety of terrains.
