Zinc Coated Welded Hesco Wall Type Defensive Barriers For Military Sand Wall Or Flood Control

Zinc Coated Welded Hesco Wall Type Defensive Barriers For Military Sand Wall Or Flood Control
Zinc Coated Welded Hesco Wall Type Defensive Barriers For Military Sand Wall Or Flood Control Zinc Coated Welded Hesco Wall Type Defensive Barriers For Military Sand Wall Or Flood Control Zinc Coated Welded Hesco Wall Type Defensive Barriers For Military Sand Wall Or Flood Control Zinc Coated Welded Hesco Wall Type Defensive Barriers For Military Sand Wall Or Flood Control Zinc Coated Welded Hesco Wall Type Defensive Barriers For Military Sand Wall Or Flood Control

Large Image :  Zinc Coated Welded Hesco Wall Type Defensive Barriers For Military Sand Wall Or Flood Control

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-258
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meters
Price: Negotiable
Packaging Details: In bundles, then be packed on the pallet.
Delivery Time: 10-15 days after received the deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100000 square meters per month
Detailed Product Description
Product Name:: Hesco Wall Type Defensive Barriers Wire Diameter:: 4-5mm
Hole Size:: 50*50, 75*75mm, 100*100mm Or 3*3inch Spiral Distance: 25 Or 50mm
Material: Galvanzed Steel Wire, 245g/m2 Size: See Our Chat Of Size Beow
Geotextile: 250g-400gsm Color Of Geotextile: Beige, Green Or Black
High Light:

flood control hesco barrier wall

,

welded hesco barrier wall

,

welded hesco flood barriers

Zinc Coated Welded Hesco Wall Type Defensive Barriers For Military Sand Wall Or Flood Control

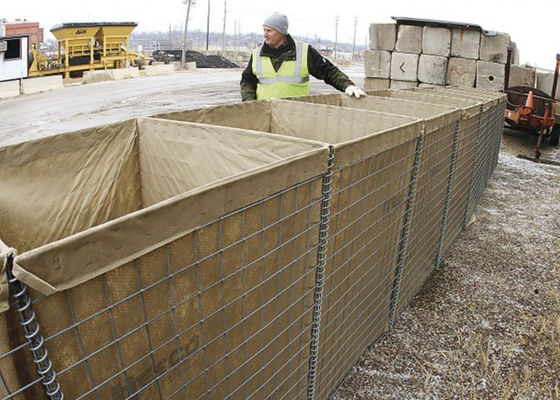

Defensive barriers, also known as bastion barriers, are frequently employed to ensure safe containment in military environments and on construction sites. Defensive barriers can be layered and filled with sand or dirt for a powerful defense against a range of dangers. They are made of collagen mesh fabric and metal frames.



The defensive barrier system is perfect for temporary and mobile use because it is portable and lightweight.



Additionally, it is quite adaptable, enabling users to change the barrier's size and shape as necessary. Defensive barriers provide advantages such as wind protection, dust control, flood control, noise reduction, and privacy screening in addition to their basic defense role. These protective barriers are a powerful approach to separate dangerous substances or generate.



Zinc Coated Welded Hesco Wall Type Defensive Barriers For Military Sand Wall Or Flood Control 0

Specification of Defensive Barriers For Military Sand Wall or Flood Control from Nova:

Product Name Defensive Barriers
Product Type Welded Mesh Type
Material Galvanized Steel Wire or Galfan / zinc-5% Aluminum Wire
Wire Diameter 3mm,4mm,5mm,6mm
Geotextile 250g-400g
Geotextile colour Sand color, Brown, Tan, Gray, and Military Green.
Mesh hole 50mm× 50mm, 75mm× 75mm, 100mm× 100mm



Model Height(M) Width(M) Length(M) Number of cells
No-1(Mil 1) 1.37 1.06 10 5+4=9 cells
No-2(Mil 2) 0.61 0.61 1.21 2 cells
No-3(Mil 3) 1.0 1.0 10 5+5=10 cells
No-4(Mil 4) 1.0 1.5 10 5+5=10 cells
No-5(Mil 5) 0.61 0.61 3.05 5 cells
No-6(Mil 6) 1.68 0.61 3.05 5 cells
No-7(Mil 7) 2.21 2.13 27.74 5+4+4=13 cells
No-8(Mil 8) 1.37 1.22 10 4+5=9 cells
No-9(Mil 9) 1.0 0.76 9.14 6+6=12 cells
No-10(Mil 10) 2.12 1.52 30.5 5+5+5+5=20 cells



The above chart shows the standard size of our product, it can be customized to customers' requirements.



Structure of Defensive Barriers:



Basically there 2 types of defensive barriers:



   1. Fast open type, have spirals in the middle, it can be opened in a short time. see the picture below:



       Zinc Coated Welded Hesco Wall Type Defensive Barriers For Military Sand Wall Or Flood Control 1





   2. Square type, see the reference below,



Zinc Coated Welded Hesco Wall Type Defensive Barriers For Military Sand Wall Or Flood Control 2





Information Needed When Sending Us An Inquiry:


In order to get a fast quotation, the following information is needed when sending us an inquiry:

  - Wire diameter and surface treatment, including gsm of Zn coating.
  - Hole size and tolerance.
  - Box size and diaphragm numbers.

  - Color and gsm of geotextile.
  - Quantity.
  - Destination port of shipping


Example:



    Mil1 with the following information:

    - 4mm hot dip galvanized wire,

    - 50mm spiral distance,

    - 75*75mm hole size,

    - 250g/m2 green geotextile,

    - 1000 pieces, ship to Jeddah port of Saudi.



Features of Nova Defensive Barriers:



    Strong and durable structure.

    Quality geotextile lining.

    Labor-saving design.

    Quick and easy to assemble and deploy.

    Long service life.



Application of Hasco Wall Type Defensive Barriers:



  - Military Training

  - Defensive walls
  - Forward operation base
  - Accommodation bunkers
  - Perimeter security
  - Blast protection

  - Protection of living accommodations

  - Permanent or Semi-permanent Dike

  - Protection Engineering of Seaside Area

  - Protecting Existing Structures

  - Flood Prevention Barrier



About us:



We are a Chinese company that is specialized in the development, manufacturing, and sale of various metal wire mesh products, including woven gabion basket, defensive barrier, razor wire, fence, wire mesh for construction, and more.



The business started its barriers factory in 2013 with automatic welding machinery to make high-quality goods that are suitable for a range of construction projects. WE employs a team of skilled technicians and engineers who specialize in research and development of new products to meet market demands. This provides a guarantee for the supply capacity and quality.



In China, Nova Wire Mesh Co. has established itself as a top producer of wire mesh goods. The company's automatic welding facilities and sophisticated production techniques reflect its dedication to quality and innovation. The customers come from all
over the world, including Europe, America, the Middle East, Southeast Asia, and Africa. We anticipate Nova Gabion's continued growth and are interested to see what the future holds.



Frequency Asked Questions about Hesco Wall Type Defensive Barriers and Other Applications:



Q: I'm interested in your defensive barriers, how to place an order?
A: First step - let us know the detailed specification of defensive barriers and quantity needed, we have a standard inquiry form prepared for you, and we can send it to you if needed.
    Then, we sent you a quotation sheet by email or Whatsapp.
    In the third step, we book material and start production after the deposit is received. I will send you pictures and an updated status for production.
    The fourth step, making the shipment and sending the BOL to you after the balance of payment is received.

Q: What is the MOQ of the hesco wall type defensive barriers products? Can you send the sample first?
A: The MOQ is one set for mass-produced standard products, for custom-made barriers , MOQ is one pallet. The free sample can be sent to you by FedEx.

Q: What is your standard payment term?
A; Our payment term is flexible, our standard term is a 30% deposit, balance paid before shipment or against a copy of BOL, other terms of payment are discussable, like 30% TT+70%LC.



Q: Is there bottoms of the defensive barriers?

A: No, there is no bottom panel, it is empty of the bottom inside in order to set up and move quickly.

Q: How many years can heavy Zine galvanized wire be used? What is the estimated working life?
A:  According to EN standard, heavy Zinc galvanized, class A can last up to 25 years in low aggressive conditions (dry conditions, like a desert, or sub-arctic area), and Zinc coated class A can last more than 10 years in medium addressive condition. If want a longer life, Galfan(Zn90%Al10% alloy) is recommended. Can reach to more that 20 years.





Zinc Coated Welded Defensive Barriers For Military Sand Wall or Flood Control



Zinc Coated Welded Defensive Barriers For Military Sand Wall or Flood Control





Zinc Coated Welded Defensive Barriers For Military Sand Wall or Flood Control



Zinc Coated Welded Defensive Barriers factory
