PP Geotechnical Bags Military Bunker Galfan Metal Gabion Baskets

Certification
China Hebei Nova Metal Wire Mesh Products Co., Ltd. certification
China Hebei Nova Metal Wire Mesh Products Co., Ltd. certification
Hanna..you are FANTASTIC!! I am so happy that I found you.

—— Rich sr

I know I keep repeating myself but words cannot express how grateful we are for your hospitality and generosity. We look forward to doing business with you and helping you build and promote your company and it's capabilities. We are both very excited about the future

—— Craig

I'm Online Chat Now

PP Geotechnical Bags Military Bunker Galfan Metal Gabion Baskets

PP Geotechnical Bags Military Bunker Galfan Metal Gabion Baskets
PP Geotechnical Bags Military Bunker Galfan Metal Gabion Baskets PP Geotechnical Bags Military Bunker Galfan Metal Gabion Baskets PP Geotechnical Bags Military Bunker Galfan Metal Gabion Baskets PP Geotechnical Bags Military Bunker Galfan Metal Gabion Baskets

Large Image :  PP Geotechnical Bags Military Bunker Galfan Metal Gabion Baskets

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-0005
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In bundles
Delivery Time: 7-10 days, according to buyer's requirement
Payment Terms: T/T, Western Union
Supply Ability: 100000 square meters per week
Detailed Product Description
Wire Diameter: 2.0-3.7mm Material Of Geobag: Polypropylene
Size: 2*1*1m Material Of Gabion: Galfan
Hole Size: 8*10mm Use For: Military Bunker
High Light:

weld mesh gabion baskets

,

gabion wire mesh boxes



2*1*1 Galfan Gabion Baskets With PP Geotechnical Bags For Military Bunker



Description:



It is made of Galfan coating gabion lining on the permeable fabric.



The Geotechnical Bags are made of high tensile synthetic geosynthetics with UV resistance. To ensure quality and prevent soil and sand loss, the pockets should be open without seams except at the bottom.

The water-retaining structure can be formed quickly by using local materials and filling sand, gravel, or natural graded gravel.


Geobags Specification:

The raw material of geobags is polypropylene fibers.



                     Item material

                                            PP

        Tensile strength(MD),(KN/M)

                                           >80

       Tensile strength(CMD),(KN/M)

                                           >80

          Breaking enlonggation(%)

                                           <30

 Uv resistance retention rate,(150h/%)

                                            >95

                         Color

                                           green

                         Remark

Special specification and size can be customized according to the requirement of a contract or agreement.



Gabion Box Specifications:



Gabion Size(m) Hole Size
  8x10
Length Width Height Galfan
   Wire diameter 3.05mm
2 1 1 Selvedge wire Dia 3.8mm
3 1 1 Lacing wire 2.2mm
4 1 1 Fastener 3.0mm
6 1 1












Gabion Baskets With PP Geotechnical Bags Application and Advantage:



1. Geobags can be equipped with a drop tank, retaining wall and common geotechnical bag for military bunker

2. Geobags can significantly improve the speed of construction, solve the handling of excess earth and stone, save stone, reduce the cost of the project, in line with the requirements of ecological engineering, and beautiful generous, is often used in modern ecological engineering materials.





Construction technical requirements:

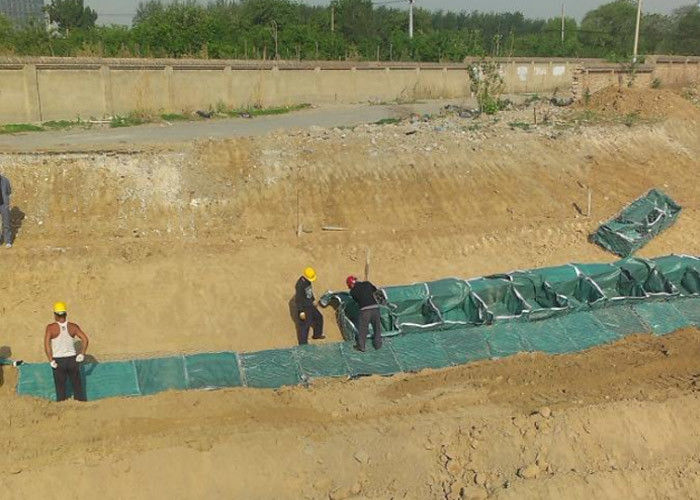

1. PP geotechnical bags and galfan gabion net combination in the bag mouth to pull up 10cm at the bottom of the square evenly open, filling soil and layered filling compacted, the height of 30cm.

2. PP geotechnical bags before sealing should use a small stone bag top about 8 ~ 10cm high, with sticky buckle adhesive, iron bar fixed Angle end, then ligate the borderline and stone cage net sealing.



PP Geotechnical Bags Military Bunker Galfan Metal Gabion Baskets 0
