Product Details:
Payment & Shipping Terms:
|
Material: | Lower Carbon Steel | Steel Grating Size: | 3'x20', 3'x24', 3'x30' |
---|---|---|---|
Steel Bearing: | 30,40,60,100mm | Surface Treatment: | Mild, Galvanized,power Coating |
Application: | Trench Drains,Driveway Road,Garage Trench Drain | Specification: | 19-w-4, 15-w-2, 30/100, 40/50 |
Pitch Of Bearing Bar: | 15-30mm, 40mm, 60mm, 80mm, 90mm Etc. With 30, 40mm Rec | Pitch Of Cross Bar: | 30, 38, 50, 76, 100mm Etc. With 50, 100mm Recommended. |
High Light: | expanded steel bar grating,expanded stainless steel bar grating,15w2 steel bar grating |
stainless expanded steel floor grating/bar grating galvanized grating steel/stainless steel heavy duty steel grating
1.Materials: Mild carbon steel with a variety of grades;Stainless steel 201,304,316.etc.Also customerized steel.
2.Surface Treatment: Hot DIP Galvanizing /electro galvanized
3.specification list
Specifications of steel gratings | ||
No | Item | Description |
1 | Bearing bar | 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50… 75x8mm, etc. |
2 | Bearing bar pitch | 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc. |
3 | Cross bar | 5x5, 6x6, 8x8mm (twisted bar or round bar) |
4 | Cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers' requirement. |
5 | Surface treatment | Untreated, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers' requirement. |
6 | Flat bar type | Plain, Serrated (tooth-like), I bar (I section) |
7 | Material standard | Low carbon steel (CN: Q235, US: A36, UK: 43A) |
8 | Galvanization standard | CN: GB/T13912, US: ASTM (A123), UK: BS729 |
Cross Rod Pitch | load Bar Pitch | load Bar Specification(Width×Thickness) | |||||
20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
Cross Rod Pitch | load Bar Pitch | load Bar Specification(Width×Thickness) | |||||
32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |

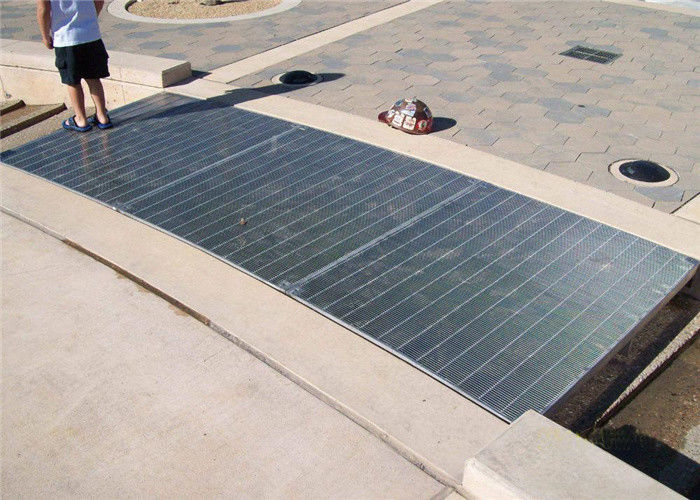

Steel grating used in flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, pedestrian/crowded pedestrian, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy equipment area, office buildings, apartments, train stations, department stores, hospitals,amusement parks,etc.
Packing: normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. there are four or six pieces of M10 long bolt penetrading the gratings and screwing together. it is suitable for loading and unloading by fork-lift and crane.
Q: Why to choose us? Any advantages?
A: The answer is Yes.
1) The most preferential price:Our offer will be reasonable, our price will be cheaper in the
same quality.
2) Customize: We can make the product as your request, specification,size and quality can meet
your request.
3) Mix order: We accept mix order, different specification and small quantity order.
4) Quality assurance:We have professional quality testing team.They will test the products before shipment.
5) After-sales service:Any question is welcome.
Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before order.
