Galvanized Welded Mesh Military Barrier 76.2x76.2mm for Flood Control

Galvanized Welded Mesh Military Barrier 76.2x76.2mm for Flood Control
Galvanized Welded Mesh Military Barrier 76.2x76.2mm for Flood Control Galvanized Welded Mesh Military Barrier 76.2x76.2mm for Flood Control Galvanized Welded Mesh Military Barrier 76.2x76.2mm for Flood Control

Large Image :  Galvanized Welded Mesh Military Barrier 76.2x76.2mm for Flood Control

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-253
Payment & Shipping Terms:
Minimum Order Quantity: 100 sets
Price: 1-50US$/m2
Packaging Details: Defensive barrier were packed on pallets, then wrapped with plastic film
Delivery Time: 10-15 days after received the deposit
Payment Terms: T/T,L/C,Western Union,D/A,D/P,MoneyGram
Supply Ability: 3000 sets per week
Contact Now

Galvanized Welded Mesh Military Barrier 76.2x76.2mm for Flood Control

Description
Material:: Galvanized Wire Hole Shape:: Square
Type:: Welded Mesh Mesh Size:: 76.2*76.2mm
Feature:: Economy
Highlight:

itary barriers

,

bastion wall

Long Life Welded Military Defensive Barriers / Gabion Mesh Box For Flood Control
Product Overview

The defensive bastion is an innovative modular system designed to replace traditional sandbags. This larger body wall and mesh gabion box solution offers superior flood control capabilities with versatile filling options including soil, sand, gravel, crushed stone, and other materials.

Key Benefits
  • Constructed from geotextile and metal mesh baskets with waterproof, fireproof, and moisture-resistant properties
  • High-efficiency installation saves significant time and costs
  • Provides effective security while reducing casualties and equipment losses
Technical Specifications
  • Mesh wire: 3mm-6mm
  • Spiral wire: 3mm, 4mm, 5mm
  • Mesh size: 76.2×76.2mm
  • Panel sizes available: 0.61×0.61m, 1×1m, 1.2×1.2m, 1.5×1.5m, 1.5×2m, 2×2m, 2.21×2.13m or custom sizes
  • Geotextile: Heavy duty non-woven polypropylene
  • Packing: Wrapped with shrink film or packed in pallet
Standard Models
Model Height Width Length Internal Cells
No-1 (DB 1) 54" (1.37m) 42" (1.06m) 32'9" (10m) 5+4=9 cells
No-2 (DB 2) 24" (0.61m) 24" (0.61m) 4' (1.22m) 2 cells
No-3 (DB 3) 39" (1.0m) 39" (1.0m) 32'9" (10m) 5+5=10 cells
No-4 (DB 4) 39" (1.0m) 60" (1.52m) 32'9" (10m) 5+5=10 cells
No-5 (DB 5) 24" (0.61m) 24" (0.61m) 10' (3.05m) 5 cells
No-6 (DB 6) 66" (1.68m) 24" (0.61m) 10' (3.05m) 5 cells
No-7 (DB 7) 87" (2.21m) 84" (2.13m) 91' (27.74m) 5+4+4=13 cells
No-8 (DB 8) 54" (1.37m) 48" (1.22m) 32'9" (10m) 5+4=9 cells
No-9 (DB 9) 39" (1.0m) 30" (0.76m) 30' (9.14m) 6+6=12 cells
No-10 (DB 10) 87" (2.21m) 60" (1.52m) 100' (30.5m) 5+5+5+5=20 cells
No-11 (DB 11) 48" (1.22m) 12" (0.30m) 4' (1.22m) 2 cells
No-12 (DB 12) 84" (2.13m) 42" (1.06m) 108' (33m) 5+5+5+5+5+5=30 cells
No-13 (DB 13) 108" (2.74m) 42" (1.06m) 10'5" (3.18m) 6 cells
Advanced Features
  • Explosion prevention: Made from explosion-resistant steel with international certification
  • Lightweight construction: Weighs less than 50 kg/m² for easier handling and installation
  • Fire resistance: Engineered with fire-retardant properties
Applications

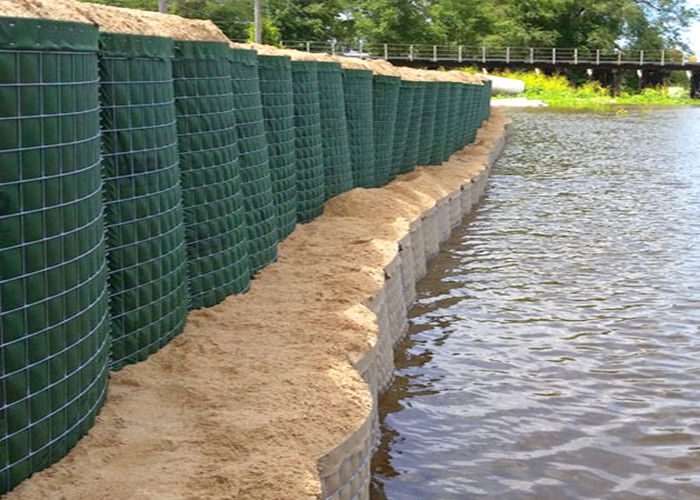

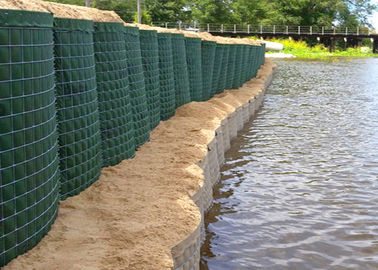

  • Flood prevention barriers
  • Permanent or semi-permanent dikes
  • Flood control retaining walls
  • Seaside area protection engineering
  • Existing structure protection
  • Coastal erosion control
Galvanized Welded Mesh Military Barrier 76.2x76.2mm for Flood Control 0
