|Material:||Iron,steel,stainless Steel||Wire Diameter:||3.0-5.0mm|
|Hole Size:||50*50,75*75,50*100,100*100mm Etc||Hole Shape:||Square|
|Surface Treatment:||Galvanized,galfan Coated||Feature:||Easy To Install|
|Application:||Gabion Fenceing||Size:||Can Be Customized|
wire mesh stone retaining wall,
gabion gravity retaining walls

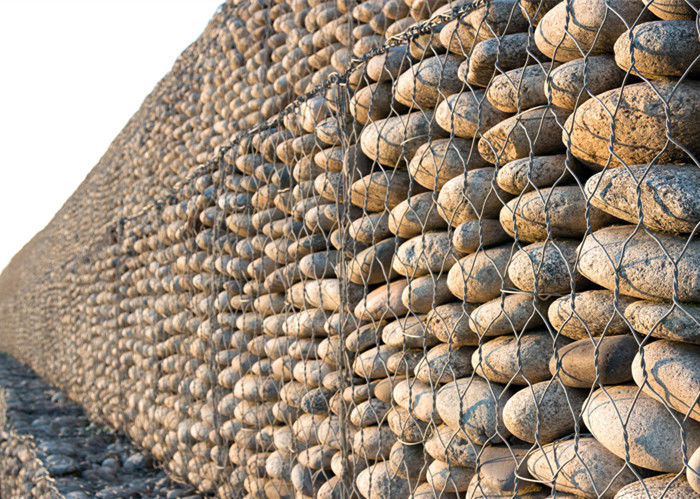

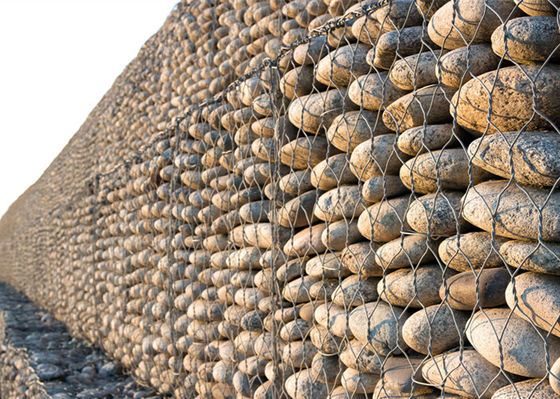

Galvanized or stainless steel gabion walls / retaining walls and fences
It’s the wire cage that allows a gabion wall to retain its shape and structural integrity, a series of wire cages hold rocks in place to form a really solid retaining wall or fence.
|Welded Gabion specifications|
|Size M||Mesh size MM||DiaphragmsNo.||CBM|
|1.0*1.0*0.5||50*50 75*75 50*100 100*100||0||0.5|
|The specifications can be customized.|
The welded mesh stone box system is quick and easy to install, we supply all the necessary fixings required to create the gabion effect. Unlike traditional gabion baskets, the unique design of the stone box system will ensure that the gabion face will not misshape over time.
By using a mesh and stone facing, your retaining wall will have a more natural appearance than a traditional precast concrete wall and will fit better into its surroundings.
How to install welded gabion box:
1) Foundation preparation
The foundation on which the gabions are to be placed shall be cut or filled and graded as required. Surface irregularities, loose material, vegetation, and all foreign matter shall be removed from foundation surface area. Extra care should be taken with foundation preparations in order to ensure a level and smooth surface.
Rotate the gabion panels into position and join the vertical edges with fasteners for gabion assembly. Where spiral fasteners are used, crimp the ends to secure the spirals in place. Where C ring type alternate fasteners are used for basket assembly, install the fasteners at a maximum spacing of 150 mm. Use the same fastening procedures to install interior diaphragms where they are required. Interior diaphragms will be required where any inside dimension exceeds 1m for gabion baskets. Diaphragms will be installed to assure that no open intervals are present that exceeds 1m.
Place the empty gabions on the foundation and interconnect the adjacent gabions along the top, bottom, and vertical edges using spirals or C rings.
Gabion cages can be built in a modular method by eliminating an end panel for each cage so no two panels need be connected together. The same method may also be used for successive courses including lid and base panels. Interconnect each layer of gabions to the underlying layer of gabions along the front, back, and sides.
Staking of the gabions may be done to maintain the established proper alignment prior to the placement of rock. Connecting lacing wire and other fasteners shall be attached during the filling operation to preserve the strength and shape of the structure.
Internal connecting cross-tile (stiffener) wires shall be placed in each unrestrained gabion cell, including gabion cells left temporarily unrestrained. In welded mesh gabions these crossties or stiffeners will be placed across the corners of the gabions providing diagonal bracing. Lacing wire or preformed wire stiffeners may be used.
The gabions shall be carefully filled with rock, ensuring alignment, avoiding bulges, and providing a compact mass that minimizes voids.
The last layer of rock shall be uniformly leveled to the top edges of the gabions. Lids shall be placed over the rock filling using only approved lid closing tools as necessary. The use of crowbars or other single point leverage bars for lid closing is prohibited due to the potential for damage to the baskets. The gabion lid shall then be secured to the sides, ends, and diaphragms with spiral binders, approved alternate fasteners, or lacing wire wrapped with alternating single and double halfhitches in the mesh openings.

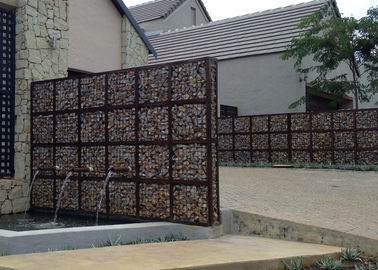

Gabion wall is an increasingly popular fencing solution in residential and commercial landscape settings as well as being effective in erosion control and major infrastructure projects such as railways, bridges, and highways.
Packing: In pallet or in bundle, put in wooden case or cartons,as buyer's requirement.
