Galvanized Welded Mesh Gabions 3.0-6.0mm Wire Diameter 76.2x76.2mm Hole

Galvanized Welded Mesh Gabions 3.0-6.0mm Wire Diameter 76.2x76.2mm Hole
Galvanized Welded Mesh Gabions 3.0-6.0mm Wire Diameter 76.2x76.2mm Hole Galvanized Welded Mesh Gabions 3.0-6.0mm Wire Diameter 76.2x76.2mm Hole Galvanized Welded Mesh Gabions 3.0-6.0mm Wire Diameter 76.2x76.2mm Hole

Large Image :  Galvanized Welded Mesh Gabions 3.0-6.0mm Wire Diameter 76.2x76.2mm Hole

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-032
Payment & Shipping Terms:
Minimum Order Quantity: 50 sets
Price: 1-50US$/m2
Packaging Details: Covered with plastic and then put on wooden pallet
Delivery Time: 10-15 days, according to buyer's requirement
Payment Terms: T/T,Western Union
Supply Ability: 1000 sets per week

Galvanized Welded Mesh Gabions 3.0-6.0mm Wire Diameter 76.2x76.2mm Hole

Description
Material: Galvanized Wire,galfan Wire Wire Diameter: 3.0-6.0mm
Hole Size: 76.2*76.2mm Hole Shape: Square
Surface Treatment: Zinc Coated Feature: High Strength, Long Service Life
Highlight:

galvanised steel stone cage

,

gabion planter box

Flexible Welded Mesh Gabions Zinc Coated Surface Treatment ISO9001 Approved

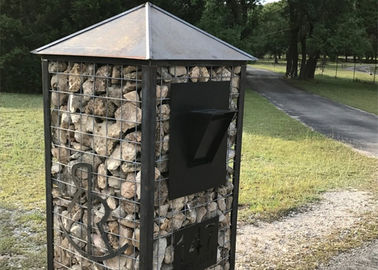

Galfan Welded Mesh Gabions / Galvanized Welded Gabions for Mailbox

Nova gabion baskets are constructed from high-quality welded wire mesh panels with hot-dip galvanized coating. Available in standard sizes or custom specifications, these gabions feature spiral joiners that bind all edges together to form a complete structure.

Welded Gabion Specifications
Size (M) Mesh Size (MM) Diaphragms No. CBM
1.0×1.0×0.5 50×50, 75×75, 50×100, 100×100 0 0.5
1.0×1.0×1.0 0 1.0
1.5×1.0×0.5 0 0.75
1.5×1.0×1.0 0 1.5
2.0×1.0×0.5 1 1.0
2.0×1.0×1.0 1 2.0
3.0×1.0×0.5 2 1.5
3.0×1.0×1.0 2 3.0
4.0×1.0×0.5 3 2.0
4.0×1.0×1.0 3 4.0

Note: All specifications can be customized to meet specific requirements.

Standard Sizes
  • 2m × 1m × 1m
  • 2m × 1m × 0.5m
  • 1m × 1m × 1m
  • 1m × 1m × 0.5m
  • 1.0m × 0.5m × 0.5m
  • 0.5m × 0.5m × 0.5m
  • 3m × 1m × 1m
  • 3m × 1m × 0.5m

Welded mesh gabion baskets can be produced with wire specifications according to buyer requirements.

Installation Guide
  1. Verify all components are present before beginning
  2. Open out the mesh panels
  3. Lift side panels into vertical position and join using helical spiral connectors
  4. Rotate the helical until fully engaged and locked in place
  5. Assemble all panel joints with one helical connector each
  6. Fill the gabion and install stiffener wires
  7. Close the lid using the correct helical while ensuring top mesh bears down on the rock fill
Applications
  • Retaining wall structures
  • Decorative fence walls
  • Erosion control and current scour prevention
  • Bridge protection
  • Hydraulic structures, dams and culverts
  • Embankment protection
  • Rockfall prevention and soil erosion protection

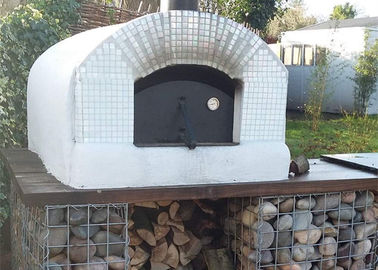

  • Landscaping projects
Packing Details

Packed in pallets or bundles, placed in wooden cases or cartons according to buyer specifications.
