Galfan Coated Metal Gabion Baskets , Gabion Rock Wall Cages Silver Color

Galfan Coated Metal Gabion Baskets , Gabion Rock Wall Cages Silver Color
Galfan Coated Metal Gabion Baskets , Gabion Rock Wall Cages Silver Color Galfan Coated Metal Gabion Baskets , Gabion Rock Wall Cages Silver Color

Large Image :  Galfan Coated Metal Gabion Baskets , Gabion Rock Wall Cages Silver Color

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-069
Payment & Shipping Terms:
Minimum Order Quantity: 50 sets
Price: Negotiable
Packaging Details: Covered with plastic and then put on wooden pallet
Delivery Time: 10-15 days, or according to buyer's requirement
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets per week
Detailed Product Description
Hole Size: 75*75,50*50,100*100mm Color: Silver
Wire Diameter: 3.0-6.0mm Size: 1*1*1,2*1*1,3*1*1m Etc
Hole Shape: Square Feature: Strong And Beautiful
High Light:

gabion rock wall cages

,

gabion planter box

Galfan coated welded mesh stone cages / welded mesh gabion baskets



Product Description:



Galfan is hot-dipped galvanized steel coated with an alloy made of 95% zinc and 5% aluminum or 90% zinc and 10% aluminum. This solid solution improves corrosion resistance by more than 50% compared to traditional galvanization, welded mesh panels can be easily be cut to any size,welded mesh gabions includes 6 panels, spiral binders, very easy and ready to install.



Welded Gabion specifications
Wire diameter:3.0-6.0mm
Size M Mesh size MM DiaphragmsNo. CBM
1.0*1.0*0.5 50*50 75*75 50*100 100*100 0 0.5
1.0*1.0*1.0 0 1.0
1.5*1.0*0.5 0 0.75
1.5*1.0*1.0 0 1.5
2.0*1.0*0.5 1 1.0
2.0*1.0*1.0 1 2.0
3.0*1.0*0.5 2 1.5
3.0*1.0*1.0 2 3.0
4.0*1.0*0.5 3 2.0
4.0*1.0*1.0 3 4.0
The specifications can be customized.



Material: Low carbon iron wire,steel wire, stainless steel wire etc



How to install welded gabion box:



After checking you have all the components, open out the mesh panels.

Lift the side panels into vertical position and join by feeding the correct length of helical formed spiral into the corner, using a rotating action, until the helical is fully engaged.



When the helical is fully engaged, the formed end should lock in place.



All panel joints (vertical joints) are formed by assembling to the adjacent panel. Each joint is retained with one helical.



Repeat the filling and stiffener wire installation until the gabion is full and then close the lid by joining with the correct helical while ensuring the top mesh bears down on the rock fill.



Welded mesh stone cage benefits:



Economical
Durable
Modular
Anti-corrosive
Easy installation
Not need maintenance



Applications of welded gabion box:

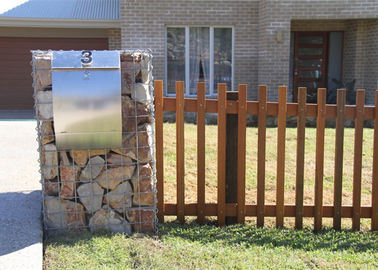

Gabions made of welded wire fabrics offer much strength compared with woven wire gabions while they have similar flexibility, Welded gabions can be connected with other similar containers and filled with stone to form flexible and permeable structures for retaining of riverbank and soils,Gabions are also used extensively as architectural cladding to buildings.



Packing details



Packing: In pallet or in bundle, put in wooden case or cartons, or as buyer's requirement.
