Heavy Galfan Coated Woven Wire Mesh 100 * 120 Mm / 120 * 150 Mm Size

Heavy Galfan Coated Woven Wire Mesh 100 * 120 Mm / 120 * 150 Mm Size
Heavy Galfan Coated Woven Wire Mesh 100 * 120 Mm / 120 * 150 Mm Size Heavy Galfan Coated Woven Wire Mesh 100 * 120 Mm / 120 * 150 Mm Size

Large Image :  Heavy Galfan Coated Woven Wire Mesh 100 * 120 Mm / 120 * 150 Mm Size

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-077
Payment & Shipping Terms:
Minimum Order Quantity: 3000 square meters
Price: Negotiable
Packaging Details: Covered with plastic, in pallet.
Delivery Time: 5-10 days, according to buyer's requirement
Payment Terms: T/T, Western Union
Supply Ability: 100000 square meters per week
Detailed Product Description
Wire Diameter: 2.0-4.0mm Mesh Size: 60*80,80*100,100*120,120*150mm Etc
Type: Woven Mesh Material: Galvanized Wire,pvc Coated Wire
Size: 1*1*1,2*1*1m Etc Color: Silver
Application: Rockfall Mesh Netting
Highlight:

galvanized wall basket

,

welded gabion box

Heavy Galfan Coated Woven Wire Mesh Gabions / hexagonal gabion box

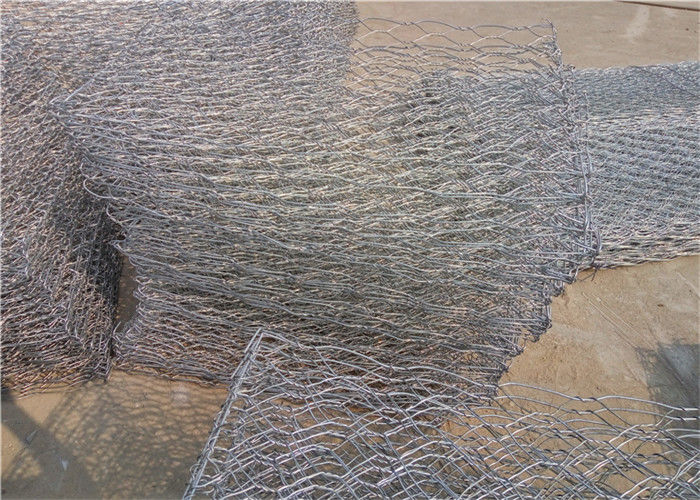

Product Description:



Galfan wire is a kind of zinc-aluminum alloy soft tempered steel wire. Compared with traditional galvanized steel wire gabions with zinc coating, Galfan gabion features a heavy zinc – aluminum coating layer which enables an excellent corrosion resistance. The corrosion resistance of Galfan gabion doubles that of traditional pure zinc plating.



Galfan Coated woven wire mesh gabions, One diaphragm every one meter (or at 3ft center) is positioned to divide the gabions into cells. This structure makes the whole gabion flexible and easy to handle. This type of woven or knitted mesh gabion has selvedge wire and lacing wire for reinforcement. All mesh panel edges are selvedged with a wire having a greater diameter than the woven or knitted wire.



Galfan Gabion Basket Sizes



Length, m



Width, m



Height, m

Number of

Cells, each



Volume, m³

2.0 1.0 1.0 2.0 2.0
3.0 1.0 1.0 3.0 3.0
4.0 1.0 1.0 4.0 4.0
2.0 1.0 0.5 2.0 1.0
3.0 1.0 0.5 3.0 1.5
4.0 1.0 0.5 4.0 2.0
2.0 1.0 0.3 2.0 0.6
3.0 1.0 0.3 3.0 0.9
4.0 1.0 0.3 4.0 1.2



Advantages:



1. FLEXIBLE
The hexagonal mesh construction permits natural adjustment to varying conditions of earth settlement without causing fracture or collapse of the structure.
2. PERMEABLE
A Gabion structure allows water to pass through, water pressure cannot build up behind it and the structure is continuously drained.
3. STRONG
The flexibility of the Gabion structure provides the inherent strength
4. ECONOMICAL
Filling materials are usually found on or near the site. No structural maintenance is needed and foundation work is usually unnecessary.
5. NATURAL APPEARANCE
Natural stone makes the structure aesthetically pleasing especially when subsequent vegetation growth takes place.
6. SIMPLE
Unskilled labour can be used for quick assembly.



Gabion application:



The Galfan gabion boxes or mattresses are filled with stones at the project site to form flexible, permeable, monolithic structures such as retaining walls, channel linings, and weirs for erosion control projects.



Details as following:


1. Earth Retaining Structures
2. Reinforced Soils
3. River Training
4. Coastal Protection
5. Canal Lining
6. Dam Overflows
7. Scour Protection
8. Marine Revetment
9. Rock Fall Protection
10. Headwall Construction
11.Controlling and leading the river and flood.
12. Flood discharge and lead flow.
13. Protecting the bridge.
14. Seaport project.
