Woven wire mesh gabions / woven gabion and mesh reinforced soil systems

Product Description:

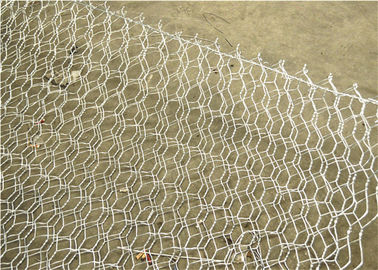

Woven gabions can be made of various corrosive resistant materials and then woven into a series of hexagonal meshes panels. Then the panels are added the thicker selvedge wires for higher loading capacity and durability. Different part of woven gabions are attached together by the lacing wire.

Woven gabions are a type of classical products used in the river bank protection and flood controlling applications. Compared with welded gabions, there are no welding point, which can resist the erosion from flood and sea water. Additional, the twisted structure can supply higher tensile strength to be used in the heavy duty applications.

The material suitable for different applications:

Galvanized woven gabions. According to different zinc coating weight, galvanized woven gabion can be divided into electric galvanized and hot dipped galvanized. Heavier the zinc coating weight, better corrosion resistance performance.

PVC coated woven gabions. The thicker PVC coating supplies outstanding corrosion and rust resistance performance for the gabion box. The inner wire can be carbon steel wire or galvanized wire.

Galfan woven gabions. Galfan woven gabion refers to 5% aluminum - zinc alloy material gabion. When the gabion in the corrosive

environments, the surface will form a oxidation film to resist corrosion and rust.

10% aluminum - zinc woven gabions. Higher aluminum content better corrosion resistance than the Galfan woven gabions. It is suitable for high corrosive environments, though the price is higher than the galvanized woven gabions.

The most popular products and sizes:

6 × 8 mesh, 2.2 mm wire diameter, galvanized and PVC coating 4 m × 2 m × 0.17 m baskets.

PVC coated /galvanized high gabion mattresses 6 Ft wide × 1 Ft high × 9 Ft length (8 × 10 mesh ), with internal wire Dia 2.7 mm with PVC 3.7 mm.

Galfan /PVC gabion baskets 2 m × 1 m × 1 m (8 × 10 mesh ) (internal wire Dia 2.7 mm with PVC 3.7 mm) - double twist hexagonal mesh.

Hot-dipped galvanised gabion box selvedge wire 2.7 mm (zinc 260 g/m2), mesh wire 2.2 mm (zinc 240 g/m2), mesh size 60 × 80 mm, size of boxes 5 × 2 × 0.17, 3 × 2 × 0.3.

Welded gabions 2 m × 1 m × 1 m, mesh 6 × 6 cm, wire diameter 2.7 mm and after GALV + PVC 3.5 mm.

Double twisted gabions size 2 m × 0.5 m × 0.5 m, 8 × 10 cm mesh, 2.7 mm wire, selvedge wire 3.4 mm galvanized 220 grams of zinc + 1 mm PVC coating gray.

Features of woven gabion

Good corrosion and rust resistance.
Can be product various of size and specifications
Different materials for different applications.
Different height for different applications.
Suitable for any harsh environments.
High tensile strength for heavy duty applications.

Applications of woven gabion

Retaining wall.
Riverway controlling.
Slope protection.
Coastal protection.
Bridge protection.
