PVC Coating Gabion Mattress Weaved Mesh Gabion ISO9001 Approved Slope Protection Gabion baskets Mattress

Heavy galfan before PVC coating weaved mesh gabion & rock mattress structures​

Product Description:

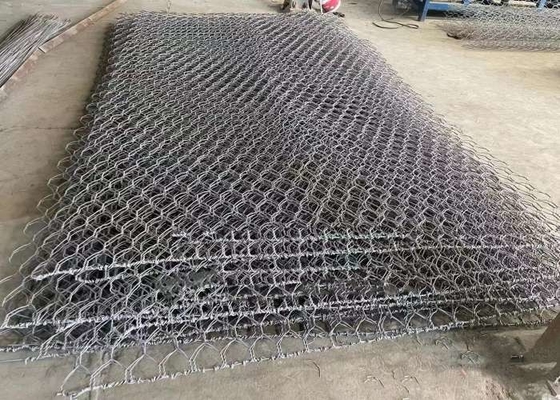

Gabion mattress is known as the material usually used of Galvanized, Galfan and PVC coated wire, Generally, a gabion mattress is composed of hexagonal double twist steel wire mesh or welded wire mesh panels

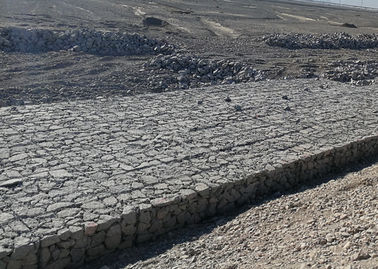

Filled with rocks, gabion mattress creates an integral robust unit for scour protection and erosion control from three aspects. Gabion mattress efficiently improves the stability of river side slopes and protects them from scouring through ensuring a natural convection exchange between water body and earth. Meanwhile, it increases the roughness coefficient of river bank owing to its excellent shear resistance. In addition, green vegetation can be planted to reinforce the slope and create more pleasing landscape.

Sizes of River mattress/:



Features:

Made of high quality low carbon wire, gabion mattress is strong and durable; meanwhile, all edges are reinforced with wire selvage for added strength.

It can bear the heavy weight of dense hard rocks and has high shear resistance than traditional riprap so that it allows for better soil stabilization.

The space between rocks allows for excellent drainage to reduce the hydrostatic pressure as well as ensure natural water exchange and ecological equilibrium.

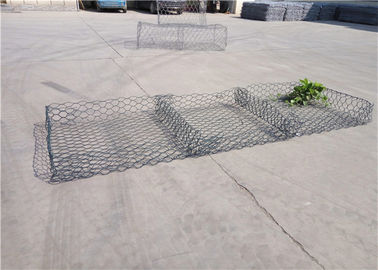

Gabion mattress can be divided into chambers by inserting diaphragms, meanwhile, independent units can be fastened together to form an integral monolithic structure - just using steel tie wire.

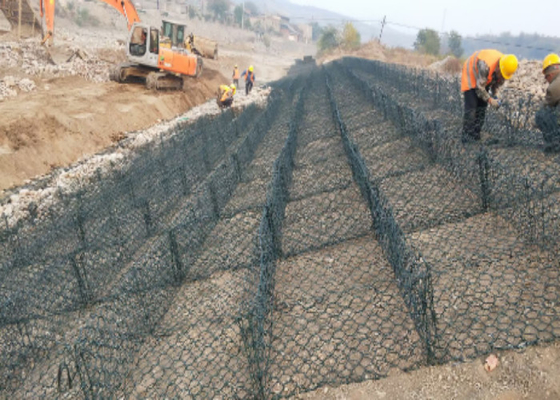

Gabion mattress, mounted on the bank of rivers and streams can effectively prevents soil erosion. Additionally, vegetation on the mattress improves the soil protection as well as decorates the surroundings.

The filling materials such as local rocks and stones are low-cost; meanwhile, they are easy to assembly and install not requiring skilled labor and large equipment.


Applications:
River bank.
Channel lining.
Foreshore foot protection.
Revetments.
Spillways.
Weirs.
Stream banks.
Sea wall.
Stable slopes.
Retaining wall.
Highway embankments.
Railway cuttings.

When requesting a quote, please specify:
size of units (LxWxH)
type of mesh size (60*80,80*100mm)
type of coating (galvanized wire, galfan wire,pvc coated wire)
Wire diameter(2mm,3mm)




Company Introduction

Founded in 2014, Hebei Nova Metal Wire Mesh Products Co., Ltd has been a professional
manufacturer of gabion products in China. Hereare a few things about us.

• Our gabion products are ISO certified.
• Our production ability can reach 30 000m2/d.
• We are a 2 factory corporation with a total of more than 30 weaving machines.
• Our markets are mainly in the middle east, Asia, Europe and America and are expanding. • Our gabion products have passed the test of SGS according to test method of both ASTM975 and EN 10223 standard.

The entire team at Nova metal wire mesh is dedicated to provide excellent service, qualified products and competitive pricing. Nova metal wire mesh is happy to be of service to you at any time.
