Product Details:
Payment & Shipping Terms:
|
| Wire Diameter: | 2.0-4.0mm | Type: | Woven Mesh |
|---|---|---|---|
| Hole Size: | 60*80mm | Surface: | Galvanized Or Pvc Coated |
| Hole Shape: | Hexagonal | Color: | Green,black,blue,gray |
| Sample: | Free Sample | ||
| High Light: | woven gabion baskets,wire rock baskets |
||

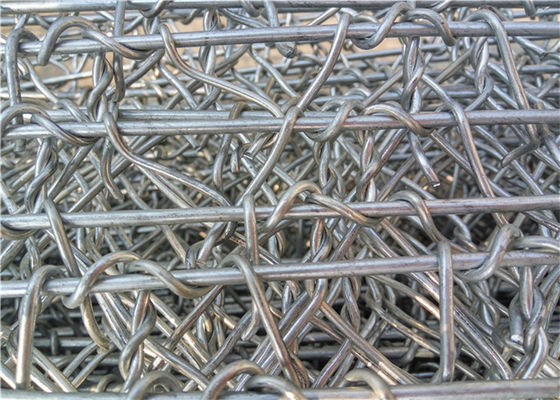

Reinforced gabion wire mesh / galvanized hexagonal gabion wire mesh
Product Description:
Reinforced Gabion Has Solid Structure, High Tensile Strength
Reinforced gabion is made of hexagonal wire mesh and adds parallel reinforced steel wires which can strengthen its loading capacity.
With solid and flexible structure, the hexagonal gabion is easy to install and it is widely used in erosion control and reinforced slope systems, roadworks.
| Hole size (mm) | Mesh wire(mm) | Side wire(mm) | Binding wire(mm) | Max width |
| 60X80 | 2.0~2.8 | 3.0~4.0 | 2.0~2.2 | 4M |
| 80X100 | 2.0~3.0 | 3.0~4.0 | 2.0~2.2 | 4M |
| 80X120 | 2.0~3.0 | 3.0~4.0 | 2.0~2.2 | 4M |
| 100X120 | 2.0~3.0 | 3.0~4.0 | 2.0~2.2 | 4M |
| 100X150 | 2.0~3.0 | 3.0~4.0 | 2.0~2.2 | 4M |
| 120X150 | 2.0~3.0 | 3.0~4.0 | 2.0~2.2 | 4M |
Specifications of reinforced gabion:
Materials: steel wires, stainless steel wires, iron wires.
Wire diameter: 2–4 mm.
Length: 1000–3000 mm.
Width: 300–2000 mm.
Height: 400–1500 mm.
Surface treatment: galvanization, PVC, galfan, aluminum coating.
Reinforced gabion features:
Flexible and solid structure;
High tensile strength and no belly;
Good permeability used for retaining wall;
Easy to installed;
Cost-effective and durable;
Environmentally friendly.
Reinforced gabion applications:
Used for retaining wall, reinforced banks and an important part of reinforced ecologs gabion;
Serve in erosion control and reinforced slope systems, roadworks, railway, constructions.
