Galfan Coated Gabion Wire Mesh Panels Interior Gabion Designs Silver Color

Galfan Coated Gabion Wire Mesh Panels Interior Gabion Designs Silver Color
Galfan Coated Gabion Wire Mesh Panels Interior Gabion Designs Silver Color Galfan Coated Gabion Wire Mesh Panels Interior Gabion Designs Silver Color

Large Image :  Galfan Coated Gabion Wire Mesh Panels Interior Gabion Designs Silver Color

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-181
Payment & Shipping Terms:
Minimum Order Quantity: 3000 square meters
Price: Negotiable
Packaging Details: Covered with plastic, in pallet.
Delivery Time: 5-10 days, according to buyer's requirement
Payment Terms: T/T, Western Union
Supply Ability: 100000 square meters per week
Detailed Product Description
Material: Galfan Coated Wire Color: Silver
Usage: Flood Control Retaining Wall Hole Shape: Hexagonal,Square
Application: Gabion Mattress For River Bank Type: Welded Mesh,Hexagonal Wire Mesh
Wire Gauge: 3-6mm Aperture: 50x50mm 60x60mm 50x100mm 75mm*75mm
High Light:

wire cages rock retaining walls

,

building gabion baskets

Galfan coated gabion baskets modules / interior gabion designs



Product Description:



The modules, units or cages as they are known, are formed from wire mesh fabric panels, jointed to form square, rectangular or trapezoidal shaped units.



These units are part pre-assembled in the factory to form a flat-pack system. These flat-pack units are supplied to the customer and formed into the final shaped module on site with the necessary lacing wire, helicals and/or ‘C’ rings as required. Each module has to be connected to adjacent modules to form a monolithic structure.



The types of mesh used must be of a non-ravelling type such as welded wire mesh or hexagonal woven wire mesh and provided with corrosion protection to suit the required exposure conditions, The mesh can be specified as either Galfan coated or Galfan coated with an external organic polymer powder (PVC) coating.



Typical Applications:



Channel Linings
Drop Structures & Weirs
Gravity Walls
Landscaping & Architectural Features
Rockfall Mitigation
Soil Stabilization



Length (m) Width (m) Height (m) Spacer number Volume (m2) Tolerance range
2.0 1.0 0.15---0.3 1 0.3~0.6


Length :±/-3%
Width :±/-5%
Height :±/-5%
3.0 1.0 0.15---0.3 2 0.45~0.9
4.0 1.0 0.15---0.3 3 0.6~1.2
2.0 1.0 0.5 1 1.0
3.0 1.0 0.5 2 1.5
4.0 1.0 0.5 3 2.0
1.0 1.0 1.0 0 1.0
1.5 1.0 1.0 0 1.5
2.0 1.0 1.0 1 2.0
3.0 1.0 1.0 2 3.0
4.0 1.0 1.0 3 4.0

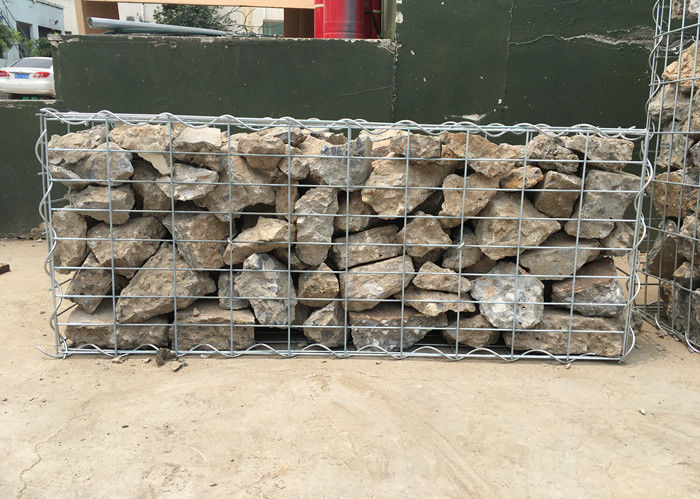

There is an other type of gabion baskets, welded mesh gabions are manufactured from a square mesh, This type of fabric manufacture produces a dimensionally stable mesh. The mesh is produced in standard sheets which are then cut into the required panel sizes to form the flat pack unit.



Welded mesh gabions can be readily modified on site by cutting the mesh back to the next transverse mesh wire. Welded mesh gabions are available in a number of wire diameters to suit the application or can be manufactured in a combination of mesh-wire specifications to provide economy in supply. The resultant gabions’ flexibility is dependant upon the choice of wire diameter.
