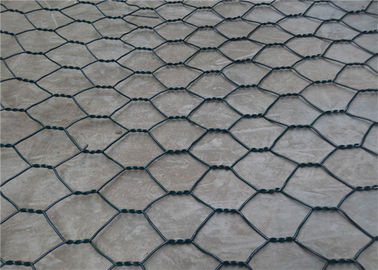

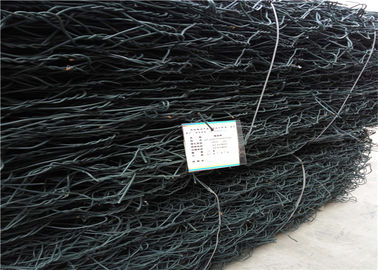

Corrosion-Resistant PVC Coated Gabion Mattress for Flood Control and Ground Movement
PVC Coated Gabion Basket for Flood Protection
Gabions are an ideal choice for river erosion control as well as coastal management. With rising sea levels increasing risks to coastal communities, the PVC coated wire mesh used in gabions is one of the few construction materials that can withstand highly corrosive marine environments.
Gabions offer significant advantages over traditional construction materials like concrete. They are extremely strong, resistant to being washed away, permeable, and flexible enough to conform to ground movement while helping dissipate and slow water flow.
Available Sizes
Gabions basket sizes: 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m, etc.
Mattress sizes: 3m*1m*0.17m, 3m*1m*0.25m, 4m*1m*0.25m, 4m*1m*0.3m, 6m*2m*0.23m, 6m*1m*0.3m, etc.
Specification of River Mattress
| Length (m) |
Width (m) |
Height (m) |
Diaphragm Quantity |
| 3m |
1m |
0.15-0.45 |
2 |
| 4m |
1m |
0.15-0.45 |
3 |
| 5m |
1m |
0.15-0.45 |
4 |
| 6m |
1m |
0.15-0.45 |
5 |
Gabion Mesh Features
- Environmental Friendliness: Gabions and mattresses are environmentally friendly products.
- Permeability: The stone fill allows water to seep through while retaining soil, eliminating the need for additional drainage to relieve hydrostatic pressures.
- Easy to Build: Construction doesn't require skilled labor as they are very easy to assemble.
Gabion Basket and Mattress Applications
- Control and guide of water or flood
- Flood bank or guiding bank
- Preventing of rock breaking
- Water and soil protection
- Bridge protection
- Strengthening structure of soil
- Protection engineering of seaside area
How to Build Gabion Mattress
Step 1: Erosion Control
Unfold individual mattress on flat, hard ground and stamp to remove kinks. Lift the two long sides and both end panels upright and secure by tying the selvedge wires together.
Step 2: Assembly
Attach vertical edges of all internal diaphragms to the sides and lace with typing wire or approved interlocking wire fastener.
Step 3: Slopes & River Beds
Align assembled mattress in required position and tie to adjacent mattress along selvedge wire. Position with internal diaphragms at right angles to slope direction or water flow.
Step 4: Hexagonal Mesh
Place stone into compartments (cells). For slopes, start from bottom. Multiple mattresses can be filled simultaneously.
Step 5: Erosion Control
Keep stone filling crew ahead of lid placement crew. Securely tie lids to side-tops, end panels, and inner partitions.
Step 6: Form Cut Assembly
Telescope or cut mattresses to form when necessary (e.g., for radius placement). For sharp curves, may need to cut diagonally into triangular sections.
When Requesting a Quote, Please Specify:
- Size of units (LxWxH)
- Type of mesh size (60*80, 80*100mm)
- Type of coating (galvanized wire, galfan wire, PVC coated wire)
- Wire diameter (2mm, 3mm)
