Product Details:
Payment & Shipping Terms:
|
| Hole Shape:: | Saquare | Material:: | Galvanized Steel Wire |
|---|---|---|---|
| Type:: | Weave Wire Mesh | Weave Style:: | Plain Weave |
| Color:: | Silver | Length:: | 30m |
| Mesh Size:: | 75cm*75cm | ||
| High Light: | rockfall fence,flexible metal netting |
||

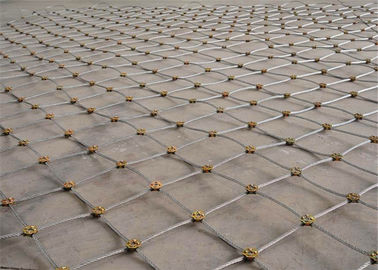

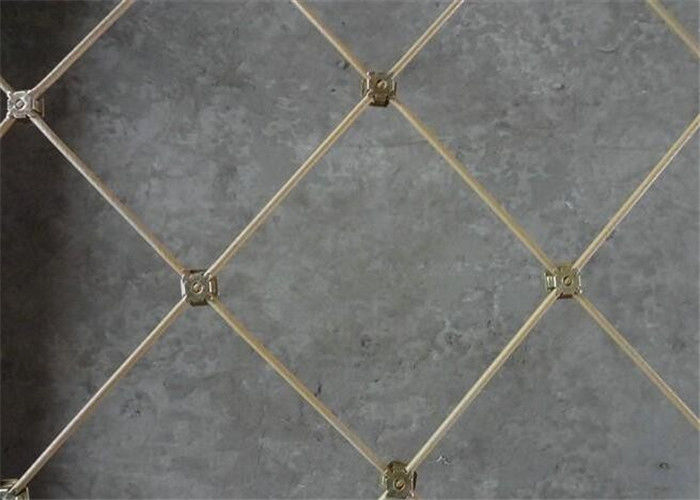

Galvanized steel wire slope protection system rockfall barrier wire rope netting
Product description
Galvanized steel wire slope protection system rockfall barrier wire rope netting are composed of high strength wire grid mesh, the anchor, I-steel column, the drop-down anchor rope, the ring of energy dissipation, and the base of support rope from top to bottom, and other components Rock fall protective fences protect the formation of the regional slope, and prevent the collapse of the rock fall.
Steel rope consisted rock fall barriers defense system is flexible to intercept and strong enough to absorb and spread the rocking, and energy dissipation of the net help the system’s ability to further improve the impact resistance.
Galvanized steel wire slope protection system rockfall barrier wire rope netting Component & Characteristic
| Type | Mesh Type | Structure Configure | Function |
| GAR1 Common Simple Type | Steel Wire Netting | Edge Steel Wire Anchor Rope+ Support Rope t + Oversewed Rope(D0/08/300 Steel netting + Anchor Rope+ Horizontal Supported Rope | Protection, Restriction on the slope of rocks movement,Against the collapse |
| GAR2 Common Type |
Steel Wire Netting |
System Steel Anchor Rope+ Support Rope + Oversewed Rope,Concave Orifice+ Anchor fixed + Horizontal Support Rope (2-16)+Steel Wire Netting(08/300/4*4)+Oversewed Rope(8) | Slope Reinforcement,Protect from collapse and weathering. |
| GPS1 Common Use | Steel Wire Netting+ Steel Wire Grid |
Same to GAR1+ Steel Wire Grid |
Same To GAR1, When there are small rocks. |
| GPS2 Common Use | Steel Wire Netting+Steel Wire Grid | Same To GAR2+Iron Grid + Fixed Anchor + Horizontal Support Rope(2-16)+ Steel Wire Netting(08/300/4*4)+ SO/2.2/50 Steel Wire Grid+System Anchor] |
Same To GAR2, With small unstable rocks or terrene slope. |
|
GER1 |
Steel Wire Grid |
Same To GAR1, But Steel Wire Oversewed Along The Support Rope. | Same to GAR1, But the falling rock is small,mainly protect from broken rock falling. |
| GER2 | Steel Wire Grid | Same To GAR2, But Steel Wire Oversewed Along The Support Rope. | Same To GAR2,But the fall rock is small. |
| GTC-65A | High-Strength Steel Wire Grid | Prestressed Reinforcing Steel Bar+ Concave Orifice + Oversew Rope | Same To GPS2,Guaranteed more than 100 years, but it is not suitable that the vol. of fallrock is bigger than 1 m³. |
| GTC-65B | High-Strength Grid | Reinforcing Steel Bar Anchor Rope | Same To GAR1, Guaranteed more than 100 years,But it is not suiable that the Vol. Of fallrock is bigger than 1m³. |
| MG-GPS2 | Steel Wire Netting+Strongly Fixed Slope Reinforcing Steel Bar Anchor Rope | Same To GPS2, Steel Wire Grid+ Strongly Fixed Slope Reinforcing Steel Bar Anchor Rope + Horizontal Support Rope (16/12)+Steel Wire Netting(08/300/4*4)+Oversewed Rope(8)+SO/2.2/50 Iron Wire Grid + System Anchor fixing | Slope Reinforcement,Protect from collapse and weathering, Restrict the coast and local fallrock.It can be used for small unsafe rock or soil or soil mixed rock. |
| MG-GPS2-L | Same to MG-GPS2 | Same To MG-GPS2+Landscaping of Slope | Same To MG-GPS2+ Landscaping of Slope |
Useage:widely used as protection barrier in railway,expressway,slope,construction,breed,animal,grassland,bridge,port project;preventing water loss and soil erosion.
Features:
1.Reinforcing wires woven into corners to reinforce critical points
2.A diaphragm securely attached at the base that will prevent the shifting of some and reinforce the gabion.
