| 500m south of Cuianpu village, Anping, Hengshui, Hebei, China | anna@nova-wiremesh.com |
|
Product Details:
Payment & Shipping Terms:
|
| Material:: | Galvanized Steel Wire | Type:: | Rope Mesh |
|---|---|---|---|
| Weave Style:: | Twill Weave | Wire Diameter:: | 7mm,8mm,9mm Etc |
| Hole Size：: | As Your Requirement | Color：: | Silver |
| Highlight: | flexible metal netting,metal ring mesh |
||

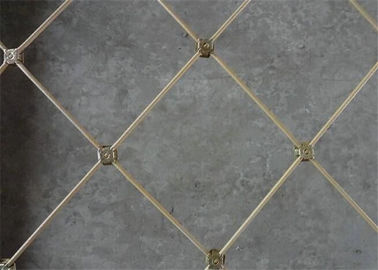

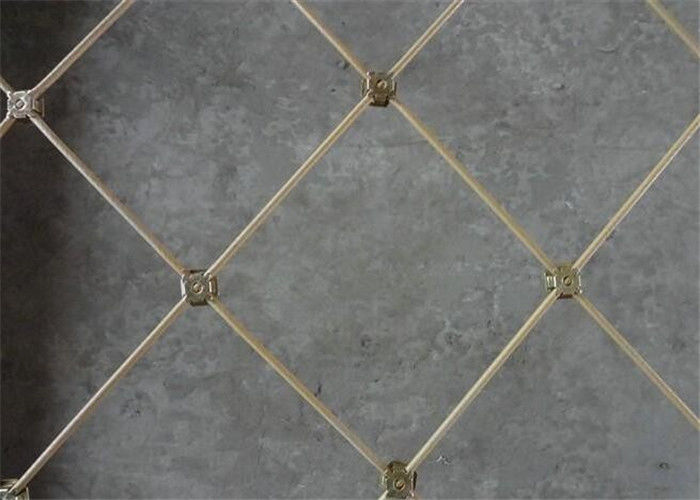

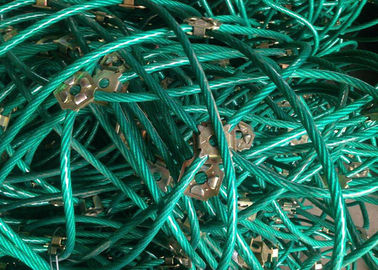

Rockfall mesh Active Slope Protection System Spider Spiral Rope Mesh Net Rockfall Netting
Product description
Flexible high-strength steel wire netting (diamond-shaped steel wire mesh, ring mesh, high-strength steel wire grid) as a major component of protection system is against the rock slope collapsed, dropped, such as flyrock blasting. Slope Stabilization Mesh System have been applied in the geological disasters on the large scale.
Slope Stabilization Mesh System is designed by the latest international standard of rock slope protection system. Compared with traditional construction methods, the system has overcomed many rigid construction defects, and is shorten the duration and cost of construction. The whole system is composed of high-strength steel wire, bolt and other installation components.
Specificiation
Steel rope diameter : |
Ø7mm,Ø7.2mm,Ø7.5mm,Ø7.8mm,Ø8mm |
Rope specification: |
7strandsx 19columns |
Zinc galvanized : |
Over 200g/m2 |
Tensile: |
>1770KPA |
Mesh size: |
300*300mm(GB)330*330mm(Non-standard) |
Size: |
4000*4000mm |
Suture rope : |
material and specification is as the same as the mesh wire. |
Support rope : |
1.Horizontal and vertical rope diameter are 16mm. 2.Horizontal rope diameter is 16mm, vertical rope diameter is 12mm. |
Advantage:
1. The mesh size and diameter can be customized
2. It can be made to customer orders and statically tested.
3. High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
Application Area:
Rockfalls, Avalanches, Tourism and recreation areas, rough and narrow gullies, etc.
