Galvanized Welded Army Barrier itary Sand Wall Defensive Security itary Gabion Box

Galvanized Welded Army Barrier itary Sand Wall Defensive Security itary Gabion Box
Galvanized Welded Army Barrier itary Sand Wall Defensive Security itary Gabion Box Galvanized Welded Army Barrier itary Sand Wall Defensive Security itary Gabion Box Galvanized Welded Army Barrier itary Sand Wall Defensive Security itary Gabion Box Galvanized Welded Army Barrier itary Sand Wall Defensive Security itary Gabion Box

Large Image :  Galvanized Welded Army Barrier itary Sand Wall Defensive Security itary Gabion Box

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-244
Payment & Shipping Terms:
Minimum Order Quantity: 100 sets
Price: 1-50US$/m2

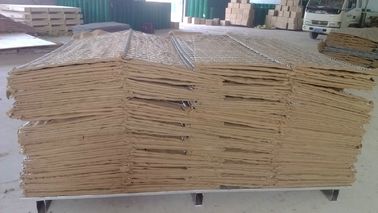

Packaging Details: Defensive barrier were packed on pallets, then wrapped with plastic film
Delivery Time: 10-15 days after received the deposit
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 3000 sets per week
Detailed Product Description
Material:: Hot Dip Galvanized Wire Color:: Sliver
Wire Diameter :: 2-6mm Spring Wire Diameter :: 3mm,4mm,5mm,6mm Etc
Mesh Hole Size :: 50x50mm
Highlight:

welded bastion wall

,

welded army barrier

,

galvanized army barrier

Galvanized Welded itary sand gabion box wall Defensive barrier, Security itary Gabion Box

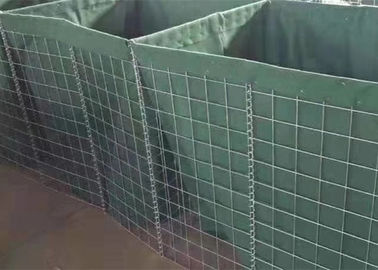

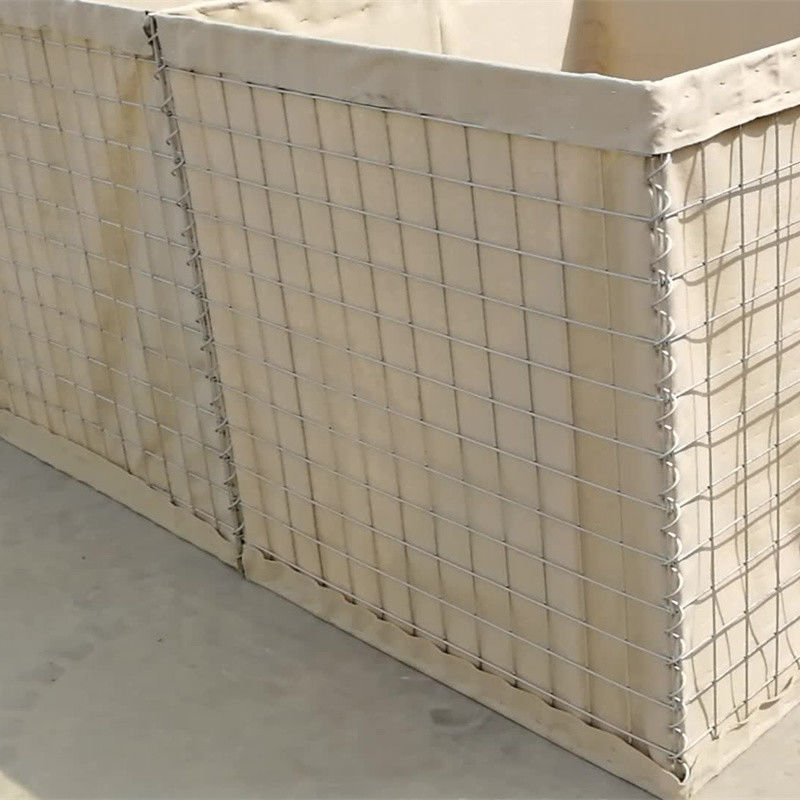

The Welded itary Gabion Box, Security itary Gabion Box unit is a multi-cellular wall system manufactured from welded Zinc-Aluminum coated /hot dipped galvanized steel wire mesh and joined with vertical,helical coil joints.



The units are lined with either beige or green colored heavy-duty non-woven polypropylene geotextile.can be filled with sand, earth, cement,stone, then as a defence wall or bunker and widely used in the itary to protect safety.



Unlike common welded gabion, after set up in the field, Defensive barrier can be filled inside with soil, sand or gravel, to become a protection wall. This means raw material are very easy to get, especially suitable for the coastal area where is abundant in sand.



specification



Material:Galvanized Iron Wire



Type:Welded Mesh



Hole Shape:Square



Aperture:50*50mm



Wire Diameter:2.0-6.0mm



Surface treatment:Galvanized



Usage:Protection



Feature:Easily Assembled



Packing:Pallet



Length:30m



Width:0.5m-3m



Height Width Length Cells
54''(1.37m) 42''(1.06m) 32'9''(10m) 1*4+1*5 cells
24''(0.61m) 24''(0.61m) 4'(1.22m) 2 cells
39''(1.00m) 39''(1.00m) 32'9''(10m) 2*5 cells
39''(1.00m) 60''(1.52m) 32'9''(10m) 2*5 cells
24''(0.61m) 24''(0.61m) 10'(3.05m) 5 cells
66''(1.68m) 24''(0.61m) 10'(3.05m) 5 cells
87''(2.21m) 84''(2.13m) 91'(27.74m) 2*4+1*5 cells
54''(1.37m) 48''(1.22m) 32'9''(9.14m) 1*4+1*5 cells
39'(1.00m) 30''(0.76m) 30'(9.14m) 2*6 cells
87''(2.21m) 60''(1.52m) 100'(30.5m) 4*5 cells
48''(1.22m) 12''(0.3m) 4'(1.22m) 4 cells
84''(2.13m) 42''(1.06m) 108'(33m) 6*5 cells
108''(2.74m) 42''(1.06m) 10'5''(3.18m) 3 cells





Features of itary barriers



Strong and durable structure.



Quality geotextile lining.



Labor saving design.



Quick and easy to assemble and deploy.



Long service life.





Barriers Application



Perimeter security and defense walls



Equipment revetments



Personnel and material bunkers



Observation points



Defensive firing positions



Guard posts



Protection engineering of seaside area



Border crossing checkpoints



Protecting existing structures



Flood control retaining wall



Galvanized Welded Army Barrier itary Sand Wall Defensive Security itary Gabion Box 0
