Product Details:
Payment & Shipping Terms:
|
| Material:: | Galvanized Wire | Hole Shape:: | Square |
|---|---|---|---|
| Type:: | Welded Mesh | Mesh Size:: | 76.2*76.2mm |
| Feature:: | Economy | ||
| High Light: | military hesco barriers,hesco bastion wall |
||

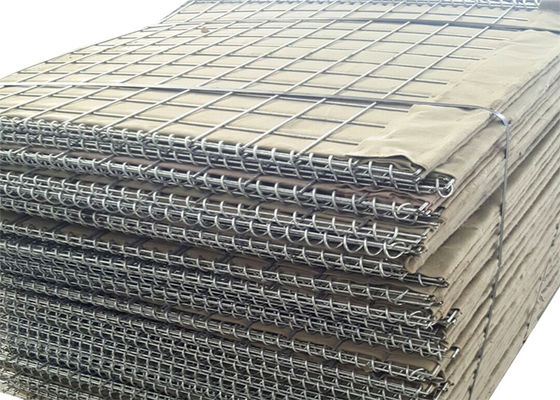

Welded Hesco Barrier / Hesco Bastion / Gabion Mesh Box for flood control
Product Description
Hesco bastion is a new module to replace of sandbags, and is larger body wall, mesh gabion box. Filling material can be varied at will, such as: soil, sand, gravel, crushed stone and garbage, etc. The main constituent materials of Geotextile and metal mesh baskets have waterproof, fireproof, moistureproof and other properties.

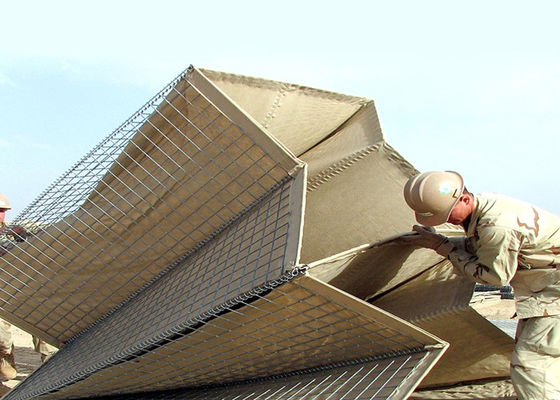

Hesco barrier with high efficient installation, effective security capabilities to savev a lot of time and money, and has a significant reduction in casualties and equipment losses.
Specification
Mesh wire :3mm-6mm
Sprial wire :3mm,4mm,5mm
Mesh size: 76.2*76.2mm
Panel Size: 0.61*0.61m,1*1m,1.2*1.2m,1.5*1.5m,1.5*2m,2*2m, 2.21*2.13m or as your request.
Geotextile:in heavy duty non-woven polypropylene.
Packing: Wrapped with shrink film or packed in pallet.
| Model | Height | Width | Length | Internal Cells |
| No-1(Mil 1) | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| No-2(Mil 2) | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| No-3(Mil 3) | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| No-4(Mil 4) | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| No-5(Mil 5) | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| No-6(Mil 6) | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| No-7(Mil 7) | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| No-8(Mil 8) | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| No-9(Mil 9) | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| No-10(Mil 10) | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| No-11(Mil 11) | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| No-12(Mil 12) | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| No-13(Mil 13) | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Features of Hesco Bation:
1) Preventing from exploding:the prevent exploding wire mesh system which makes from exploding S steel,can do well in preventing exploding,and was authorized in international certificate.
2) Soft quality:the weight can be less than 50 kg/m2,which can make the product more advanced in construction system.
3)Fireproofing:theproduct can be fire-retarda.

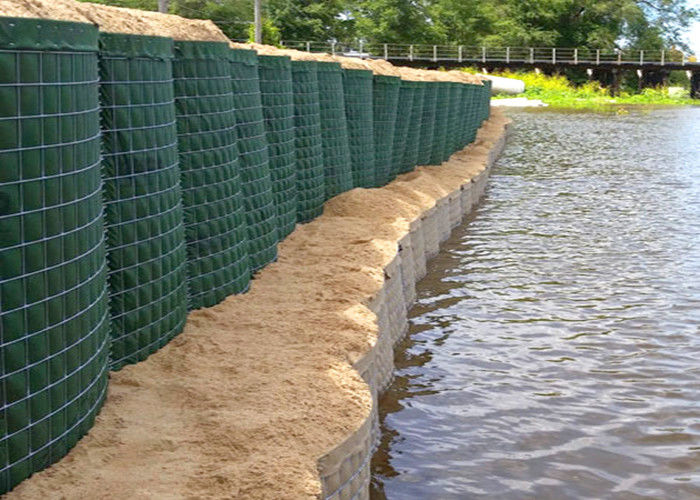

Application of flood Control
Flood Prevention Barrier
Permanent or Semi-permanent Dike
Flood Control Retaining Wall
Protection Engineering of Seaside Area
Protecting Existing Structures
Coastal Erosion Control
