Welded Mesh Military Barrier Gabion Box 50-150mm Aperture

Welded Mesh Military Barrier Gabion Box 50-150mm Aperture
Welded Mesh Military Barrier Gabion Box 50-150mm Aperture Welded Mesh Military Barrier Gabion Box 50-150mm Aperture Welded Mesh Military Barrier Gabion Box 50-150mm Aperture

Large Image :  Welded Mesh Military Barrier Gabion Box 50-150mm Aperture

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-256
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meters
Price: 1-50US$/m2
Packaging Details: Make a roll, and then put in wooden case
Delivery Time: 10-15 days after received the deposit
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 10000 square meters per month
Contact Now

Welded Mesh Military Barrier Gabion Box 50-150mm Aperture

Description
Place Of Origin:: Hebei, China Brand Name:: Nova
Type:: Welded Mesh Hole Shape:: Square
Aperture:: 50-150mm Wire Diameter:: 3-6mm
Highlight:

itary barriers

,

bastion wall

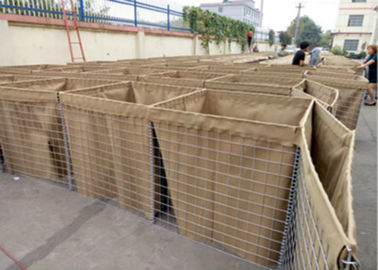

Durable Welded Military Sand Gabion Box Wall Defensive Barrier With Sand For Defence
Defensive barrier, also known as defensive bastion, defense wall, sand cage, or welded gabion box, is a prefabricated, multi-cellular system constructed from zinc-coated steel welded mesh and lined with non-woven geotextile.
The units can be extended and joined using provided joining pins. Designed for easy installation with minimal manpower and commonly available equipment. After extension, it is filled with sand or stone to create a defensive wall or bunker structure, widely used for military fortification and flood control applications.
Specifications
Wire Diameter
3mm, 4mm, 5mm
Mesh Size
50mm×50mm, 75mm×75mm, 76.2mm×76.2mm, 100mm×100mm
Panel Size
2.21m×2.13m, 1.37m×1.06m, 0.61m×0.61m (custom sizes available)
Geotextile
Heavy duty non-woven polypropylene
Standard Models
Model Height (M) Width (M) Length (M) Number of Cells
No-1 (DB 1) 1.37 1.06 10 5+4=9 cells
No-2 (DB 2) 0.61 0.61 1.21 2 cells
No-3 (DB 3) 1.0 1.0 10 5+5=10 cells
No-4 (DB 4) 1.0 1.5 10 5+5=10 cells
No-5 (DB 5) 0.61 0.61 3.05 5 cells
No-6 (DB 6) 1.68 0.61 3.05 5 cells
No-7 (DB 7) 2.21 2.13 27.74 5+4+4=13 cells
No-8 (DB 8) 1.37 1.22 10 4+5=9 cells
No-9 (DB 9) 1.0 0.76 9.14 6+6=12 cells
No-10 (DB 10) 2.12 1.52 30.5 5+5+5+5=20 cells
Key Features
  • Strong and durable welded steel construction
  • High-quality geotextile lining
  • Labor-saving design for efficient deployment
  • Quick and easy assembly process
  • Extended service life with proper maintenance
Applications
  • Perimeter security and defense walls
  • Equipment revetments and protective barriers
  • Explosive and contraband search areas
  • Ammunition storage compounds
  • Personnel and material bunkers
  • Observation points and defensive positions
