Product Details:
Payment & Shipping Terms:
|
| Place Of Origin:: | Hebei, China | Brand Name:: | Nova |
|---|---|---|---|
| Type:: | Welded Mesh | Hole Shape:: | Square |
| Aperture:: | 50-150mm | Wire Diameter:: | 3-6mm |
| Highlight: | military hesco barriers,hesco bastion wall |
||
Welded Military sand gabion box wall Defensive barrier with sand for defence
Product Description

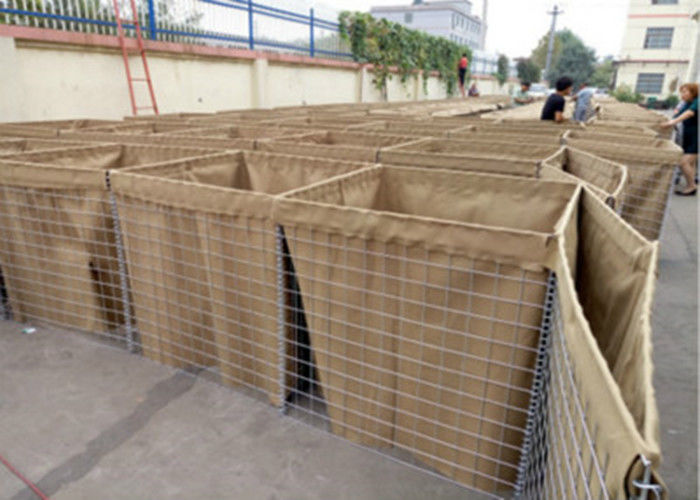

Defensive barrier also named as Defensive bastion, defense wall, sand cage, welded gabion box, etc. It is a prefabricated, multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled with sand,stone,then Defensive barrier like a defence wall or bunker, it is widely used for military fortification and flood control.
Specification
Wire diameter: 3mm, 4mm, 5mm
Mesh size: 50mmx50mm, 75mmx75mm,76.2mmx76.2mm,100mmx100mm
Panel size: 2.21mx2.13m, 1.37mx1.06m, 0.61mx0.61m, it also can be customized according to customers requirement
Geotextile: in heavy duty non-woven polypropylene
| Model | Height(M) | Width(M) | Length(M) | Number of cells |
| No-1(Mil 1) | 1.37 | 1.06 | 10 | 5+4=9 cells |
| No-2(Mil 2) | 0.61 | 0.61 | 1.21 | 2 cells |
| No-3(Mil 3) | 1.0 | 1.0 | 10 | 5+5=10 cells |
| No-4(Mil 4) | 1.0 | 1.5 | 10 | 5+5=10 cells |
| No-5(Mil 5) | 0.61 | 0.61 | 3.05 | 5 cells |
| No-6(Mil 6) | 1.68 | 0.61 | 3.05 | 5 cells |
| No-7(Mil 7) | 2.21 | 2.13 | 27.74 | 5+4+4=13 cells |
| No-8(Mil 8) | 1.37 | 1.22 | 10 | 4+5=9 cells |
| No-9(Mil 9) | 1.0 | 0.76 | 9.14 | 6+6=12 cells |
| No-10(Mil 10) | 2.12 | 1.52 | 30.5 | 5+5+5+5=20 cells |
Features
Strong and durable structure.
Quality geotextile lining.
Labor saving design.
Quick and easy to assemble and deploy.
Long service life.
Application
Perimeter security and defence walls
Equipment revetments
Explosive and contraband search areas
Ammunition compounds
Personnel and material bunkers
Observation points
Defensive
