Product Details:
Payment & Shipping Terms:
|
| Place Of Origin:: | Hebei, China | Brand Name:: | Nova |
|---|---|---|---|
| Type:: | Welded Mesh | Hole Shape:: | Square |
| Aperture:: | 50-150mm | Wire Diameter:: | 3-6mm |
| High Light: | flood control hesco barrier wall,welded hesco barrier wall,welded hesco flood barriers |
||

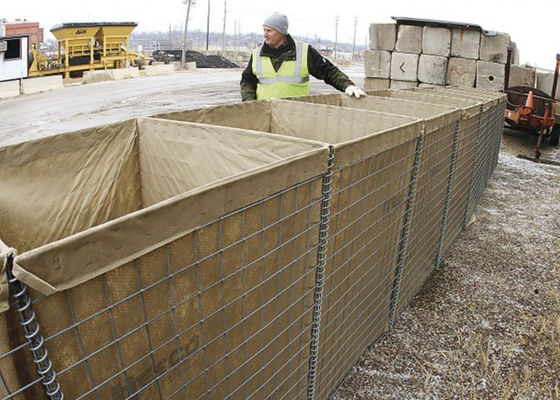

Welded Defensive bastion military sand wall hesco barriers for flood control
Product Description
Hesco Barrier also known as rock basket retaining wall, hesco barrier, flood control barrier, etc. Which is made of the steel welded mesh and lined with non-woven geotextile, can be filled with sand, earth, cement, stone, then as a defensive wall or bunker and widely used in the military to protect safety.
Specification
| Product Name | Hesco Barrier |
| Product Type | Welded Mesh |
| Material | Galvanized Steel Wire or Galfan / zinc-5% Aluminum Wire |
| Wire Diameter | 3mm,4mm,5mm,6mm |
| Geotextile | 250g-400g |
| Geotextile colour | Sand clolor, Brown, Gray,and Military Green. |
| Mesh hole | 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm |
| Model | Height(M) | Width(M) | Length(M) | Number of cells |
| No-1(Mil 1) | 1.37 | 1.06 | 10 | 5+4=9 cells |
| No-2(Mil 2) | 0.61 | 0.61 | 1.21 | 2 cells |
| No-3(Mil 3) | 1.0 | 1.0 | 10 | 5+5=10 cells |
| No-4(Mil 4) | 1.0 | 1.5 | 10 | 5+5=10 cells |
| No-5(Mil 5) | 0.61 | 0.61 | 3.05 | 5 cells |
| No-6(Mil 6) | 1.68 | 0.61 | 3.05 | 5 cells |
| No-7(Mil 7) | 2.21 | 2.13 | 27.74 | 5+4+4=13 cells |
| No-8(Mil 8) | 1.37 | 1.22 | 10 | 4+5=9 cells |
| No-9(Mil 9) | 1.0 | 0.76 | 9.14 | 6+6=12 cells |
| No-10(Mil 10) | 2.12 | 1.52 | 30.5 | 5+5+5+5=20 cells |
Features
Strong and durable structure.
Quality geotextile lining.
Labor saving design.
Quick and easy to assemble and deploy.
Long service life.
Application
Flood Prevention Barrier
Permanent or Semi-permanent Dike
Flood Control Retaining Wall
Protection Engineering of Seaside Area
Protecting Existing Structures
Coastal Erosion Control
