Zinc Coated Welded Defensive Wall Type Defensive Barriers

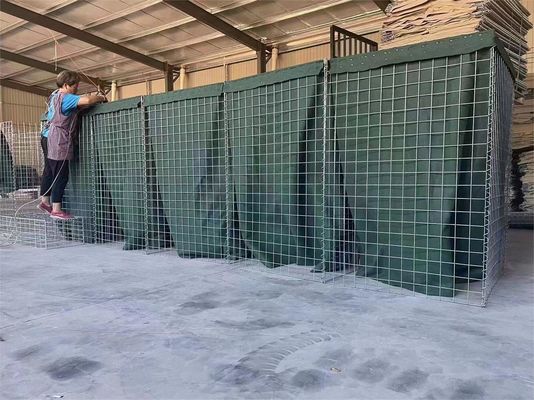

These defensive barriers, also known as bastion barriers, are designed for military environments and construction sites. Constructed with collagen mesh fabric and metal frames, they can be layered and filled with sand or dirt for robust protection against various threats.
The portable and lightweight design makes these barriers ideal for temporary and mobile applications. Their adaptable structure allows for size and shape modifications as needed. Beyond basic defense, these barriers offer wind protection, dust control, flood prevention, noise reduction, and privacy screening.
Product Specifications
| Product Name |
Defensive Barriers |
| Product Type |
Welded Mesh Type |
| Material |
Galvanized Steel Wire or Galfan/Zinc-5% Aluminum Wire |
| Wire Diameter |
3mm, 4mm, 5mm, 6mm |
| Geotextile |
250g-400g |
| Geotextile Color |
Sand color, Brown, Tan, Gray, Military Green |
| Mesh Hole |
50mm×50mm, 75mm×75mm, 100mm×100mm |
Standard Dimensions
| Model |
Height (M) |
Width (M) |
Length (M) |
Number of Cells |
| No-1 |
1.37 |
1.06 |
10 |
5+4=9 cells |
| No-2 |
0.61 |
0.61 |
1.21 |
2 cells |
| No-3 |
1.0 |
1.0 |
10 |
5+5=10 cells |
| No-4 |
1.0 |
1.5 |
10 |
5+5=10 cells |
| No-5 |
0.61 |
0.61 |
3.05 |
5 cells |
| No-6 |
1.68 |
0.61 |
3.05 |
5 cells |
| No-7 |
2.21 |
2.13 |
27.74 |
5+4+4=13 cells |
| No-8 |
1.37 |
1.22 |
10 |
4+5=9 cells |
| No-9 |
1.0 |
0.76 |
9.14 |
6+6=12 cells |
| No-10 |
2.12 |
1.52 |
30.5 |
5+5+5+5=20 cells |
Note: All dimensions can be customized to meet specific requirements.
Barrier Structure Types
1. Fast Open Type
Features spirals in the middle for quick deployment.
2. Square Type
Inquiry Requirements
For accurate quotations, please provide:
- Wire diameter and surface treatment (including GSM of Zn coating)
- Hole size and tolerance
- Box size and diaphragm numbers
- Color and GSM of geotextile
- Quantity required
- Destination shipping port
Example Specification:
Model No-1 with:
- 4mm hot dip galvanized wire
- 50mm spiral distance
- 75×75mm hole size
- 250g/m² green geotextile
- 1000 pieces
- Ship to Jeddah port, Saudi Arabia
Key Features
- Strong and durable welded structure
- High-quality geotextile lining
- Efficient, labor-saving design
- Quick assembly and deployment
- Extended service life
Applications
- Military training facilities
- Defensive perimeter walls
- Forward operation bases
- Accommodation bunkers
- Perimeter security systems
- Blast protection barriers
- Living quarters protection
- Permanent or semi-permanent dikes
- Seaside protection engineering
- Existing structure protection
- Flood prevention barriers
Company Overview
We are a specialized Chinese manufacturer of metal wire mesh products, including defensive barriers, gabion baskets, razor wire, and construction mesh. Established in 2013 with automated welding equipment, we produce high-quality products for diverse construction needs.
Our skilled R&D team continuously develops new products to meet market demands. As a leading wire mesh producer in China, we serve clients worldwide with our advanced manufacturing capabilities and commitment to quality.
Frequently Asked Questions
Q: How do I place an order?
A: Provide specifications and quantity needed. We'll send a quotation, then begin production after deposit receipt. We provide production updates and ship after final payment.
Q: What is the minimum order quantity?
A: One set for standard products, one pallet for custom barriers. Free samples available via FedEx.
Q: What are your payment terms?
A: Standard terms are 30% deposit with balance before shipment. Other arrangements negotiable.
Q: Do the barriers have bottom panels?
A: No, they're open-bottomed for quick setup and mobility.
Q: What is the expected service life?
A: Heavy zinc galvanized wire lasts up to 25 years in dry conditions, 10+ years in moderate conditions. Galfan-coated wire offers 20+ years lifespan.
