Square Hole itary Defensive Barriers Gabion Mesh Box With Green Geotextile

Square Hole itary Defensive Barriers Gabion Mesh Box With Green Geotextile
Square Hole itary Defensive Barriers Gabion Mesh Box With Green Geotextile Square Hole itary Defensive Barriers Gabion Mesh Box With Green Geotextile

Large Image :  Square Hole itary Defensive Barriers Gabion Mesh Box With Green Geotextile

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-261
Payment & Shipping Terms:
Minimum Order Quantity: 100 sets
Price: 1-50US$/m2
Packaging Details: Defensive barrier were packed on pallets, then wrapped with plastic film
Delivery Time: 10-15 days after received the deposit
Payment Terms: T/T, L/C, Western Union, , MoneyGram, D/A, D/P
Supply Ability: 3000 sets per week
Contact Now

Square Hole itary Defensive Barriers Gabion Mesh Box With Green Geotextile

Description
Material:: Galvanized Iron Wire Type:: Welded Mesh
Hole Shape:: Square Wire Diameter:: 3mm, 4mm, 5mm, 6mm Etc
Hole Size:: 76.2*76.2mm, 75mm*75mm Geotexitile:: 200g/m2, 250g/m2, 300g/m2
Highlight:

itary barriers

,

bastion wall

itary Defensive barriers / Defensive Bastion / Gabion Mesh Box with green geotextile for itary



Product Description

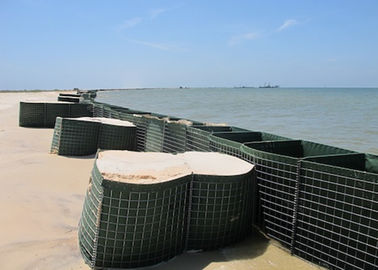

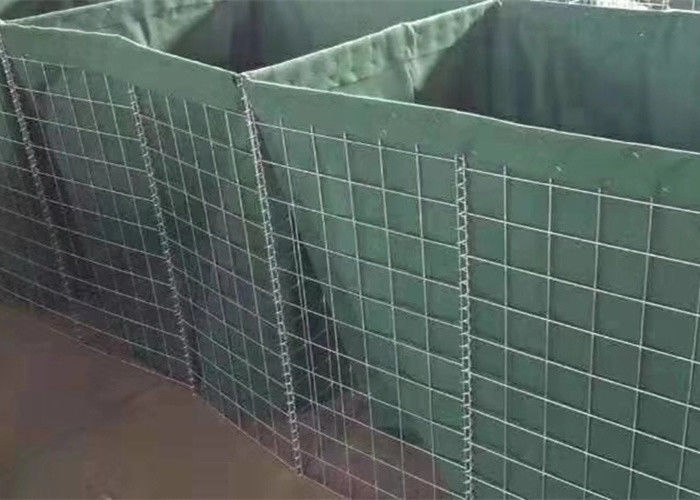

Defensive Barrier also known as Rock basket retaining wall, barrier, flood control barrier, etc. which is made of the steel welded mesh and lined with non-woven geotextile, can be filled with sand, earth, cement, stone, then as a defensive wall or bunker and widely used in the itary to protect safety.



Specification



Mesh wire diameter 3mm,4mm,5mm,6mm etc
Mesh Size 2''x2'', 3''x3'', 4''x4'', etc
Spiral wire diameter 3mm,4mm,5mm,6mm etc
Panel Finish

Hot dipped galvanized
Geotextile Heavy duty non-woven polypropylene, color can be white, beige-sand, olive green, etc
Packing  barrier were packed on pallets, then wrapped with plastic film



Model Height(M) Width(M) Length(M) Number of cells
No-1(DB 1) 1.37 1.06 10 5+4=9 cells
No-2(DB 2) 0.61 0.61 1.21 2 cells
No-3(DB 3) 1.0 1.0 10 5+5=10 cells
No-4(DB 4) 1.0 1.5 10 5+5=10 cells
No-5(DB 5) 0.61 0.61 3.05 5 cells
No-6(DB 6) 1.68 0.61 3.05 5 cells
No-7(DB 7) 2.21 2.13 27.74 5+4+4=13 cells
No-8(DB 8) 1.37 1.22 10 4+5=9 cells
No-9(DB 9) 1.0 0.76 9.14 6+6=12 cells
No-10(DB 10) 2.12 1.52 30.5 5+5+5+5=20 cells







The Advantages for  barrier



Integrated cells to provide internal structural integrity.

Exceptional strength and structural integrity

High tensile and anti-impact capability



Application case



itary Defense



Perimeter Security Barrier and Defence Wall
Temporary Fort and Command Post
Observation Points and Border Checkpoints
itary Barrier Fortification System
Explosives and Contraband Search Areas
Guard Posts



Square Hole itary Defensive Barriers Gabion Mesh Box With Green Geotextile 0
