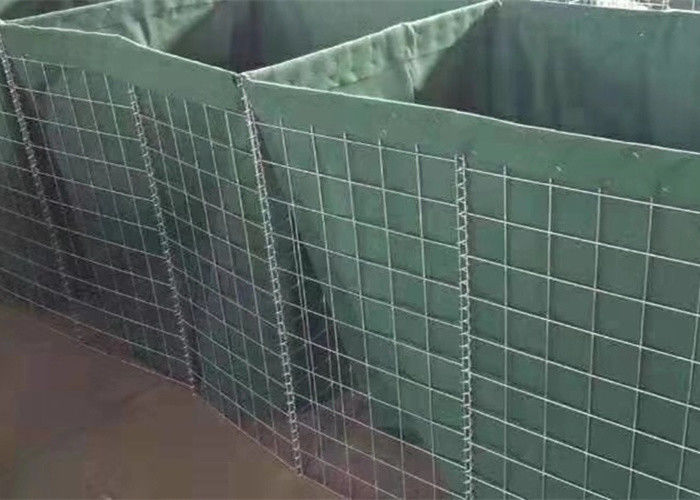

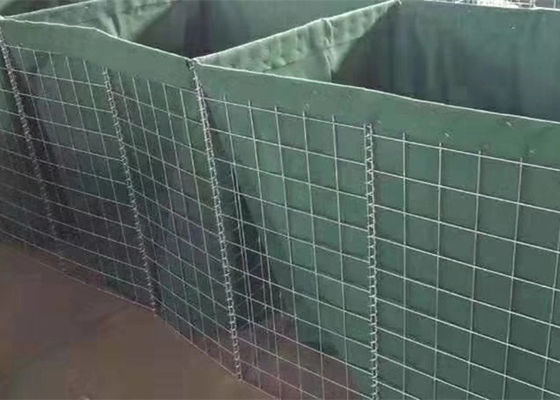

Square Hole Military Defensive Barriers Gabion Mesh Box With Green Geotextile

Name: Square Hole Military Defensive Barriers Gabion Mesh Box With Green Geotextile
Brand: Nova
SKU: Nova-261
Rating: 4.7 (146 reviews)

Large Image : Square Hole Military Defensive Barriers Gabion Mesh Box With Green Geotextile

Product Details:

Place of Origin:	China
Brand Name:	Nova
Certification:	ISO9001
Model Number:	Nova-261

Payment & Shipping Terms:

Minimum Order Quantity:	100 sets
Price:	Negotiable
Packaging Details:	Defensive barrier were packed on pallets, then wrapped with plastic film
Delivery Time:	10-15 days after received the deposit
Payment Terms:	T/T, L/C, Western Union, , MoneyGram, D/A, D/P
Supply Ability:	3000 sets per week

Contact Now

Detailed Product Description

Material::	Galvanized Iron Wire	Type::	Welded Mesh
Hole Shape::	Square	Wire Diameter::	3mm, 4mm, 5mm, 6mm Etc
Hole Size::	76.276.2mm, 75mm75mm	Geotexitile::	200g/m2, 250g/m2, 300g/m2
High Light:	military hesco barriers , hesco bastion wall

Military Defensive barriers / Defensive Bastion / Gabion Mesh Box with green geotextile for military

Product Description

Defensive Barrier also known as Rock basket retaining wall, hesco barrier, flood control barrier, etc. which is made of the steel welded mesh and lined with non-woven geotextile, can be filled with sand, earth, cement, stone, then as a defensive wall or bunker and widely used in the military to protect safety.

Specification

Mesh wire diameter	3mm,4mm,5mm,6mm etc
Mesh Size	2''x2'', 3''x3'', 4''x4'', etc
Spiral wire diameter	3mm,4mm,5mm,6mm etc
Panel Finish	Hot dipped galvanized
Geotextile	Heavy duty non-woven polypropylene, color can be white, beige-sand, olive green, etc
Packing	barrier were packed on pallets, then wrapped with plastic film

Model	Height(M)	Width(M)	Length(M)	Number of cells
No-1(Mil 1)	1.37	1.06	10	5+4=9 cells
No-2(Mil 2)	0.61	0.61	1.21	2 cells
No-3(Mil 3)	1.0	1.0	10	5+5=10 cells
No-4(Mil 4)	1.0	1.5	10	5+5=10 cells
No-5(Mil 5)	0.61	0.61	3.05	5 cells
No-6(Mil 6)	1.68	0.61	3.05	5 cells
No-7(Mil 7)	2.21	2.13	27.74	5+4+4=13 cells
No-8(Mil 8)	1.37	1.22	10	4+5=9 cells
No-9(Mil 9)	1.0	0.76	9.14	6+6=12 cells
No-10(Mil 10)	2.12	1.52	30.5	5+5+5+5=20 cells

The Advantages for hesco barrier

Integrated cells to provide internal structural integrity.

Exceptional strength and structural integrity

High tensile and anti-impact capability

Application case

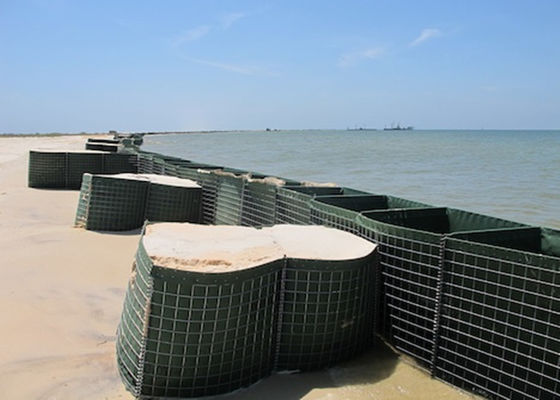

Military Defense

Perimeter Security Barrier and Defence Wall
Temporary Fort and Command Post
Observation Points and Border Checkpoints
Military Barrier Fortification System
Explosives and Contraband Search Areas
Guard Posts
