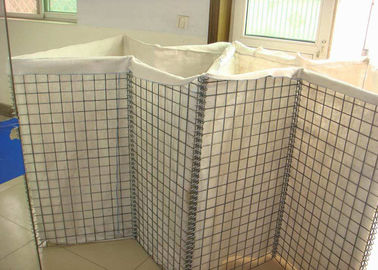

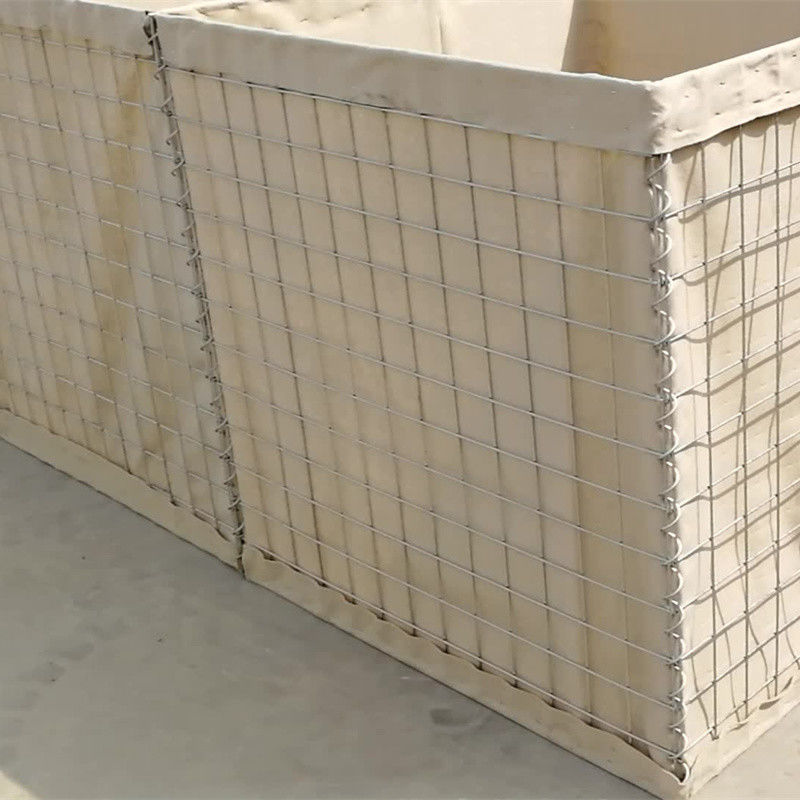

Galfan Welded Mesh Military Barrier 75x75mm Brown Gabion Wall

Galfan Welded Mesh Military Barrier 75x75mm Brown Gabion Wall
Galfan Welded Mesh Military Barrier 75x75mm Brown Gabion Wall Galfan Welded Mesh Military Barrier 75x75mm Brown Gabion Wall Galfan Welded Mesh Military Barrier 75x75mm Brown Gabion Wall

Large Image :  Galfan Welded Mesh Military Barrier 75x75mm Brown Gabion Wall

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-273
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meters
Price: 1-50US$/m2
Packaging Details: Defensive barrier were packed on pallets, then wrapped with plastic film
Delivery Time: 10-15 days after received the deposit
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 10000 square meters per month
Contact Now

Galfan Welded Mesh Military Barrier 75x75mm Brown Gabion Wall

Description
Material:: Galfan Wire Brand Name:: Nova
Type:: Welded Mesh Surface Treatment:: Galfan
Hole Size:: 75*75mm,76.2*76.2mm,100*100mm Color:: Brown
Highlight:

welded wall

,

galfan wire wall

,

welded army

Brown Color Welded Gabion Wall Bastion Or Army Defensive With Galfan Wire
Military Barrier / Defensive Bastion
A modern gabion solution for military fortification and flood control, made of collapsible wire mesh containers with heavy-duty fabric liners. Can be used as separate cells or joined together for larger defensive structures.
Product Description
Also known as defensive bastion, defense wall, blast wall, sand cage, welded gabion box, or stone cage, this prefabricated multi-cellular system is constructed from Galfan-coated steel welded mesh and lined with non-woven geotextile.
Units can be extended and joined using provided joining pins, requiring minimal manpower and common equipment for installation. When filled with sand or stone, it forms a sturdy defense wall or bunker, widely used in military applications for safety protection.
Specifications
  • Wire Diameter: 4-5mm
  • Hole Size: 75×75mm, 76.2×76.2mm, 100×100mm
  • Geotextile: Heavy duty non-woven polypropylene
  • Color: Brown
  • Finish: Galfan wire coating
  • Packing: Palletized for shipping
Standard Dimensions
Product Height Width Length
No-1 54" (1.37m) 42" (1.06m) 32'9" (10m)
No-2 24" (0.61m) 24" (0.61m) 4' (1.22m)
No-3 39" (1.00m) 39" (1.00m) 32'9" (10m)
No-4 39" (1.00m) 60" (1.52m) 32'9" (10m)
No-5 24" (0.61m) 24" (0.61m) 10' (3.05m)
No-6 66" (1.68m) 24" (0.61m) 10' (3.05m)
No-7 87" (2.21m) 84" (2.13m) 91' (27.74m)
No-8 54" (1.37m) 48" (1.22m) 32'9" (10m)
No-9 39" (1.00m) 30" (0.76m) 30' (9.14m)
No-10 87" (2.21m) 60" (1.52m) 100' (30.5m)
No-11 48" (1.22m) 12" (0.3m) 4' (1.22m)
No-12 84" (2.13m) 42" (1.06m) 108' (33m)
Key Features
  • Collapsible Design: Assembled from panels and spring wire, foldable for efficient transportation and storage
  • Anti-Corrosion: Galfan coated wire provides durability for over 10 years of outdoor use
  • Easy Installation: Can be set up by 2-3 personnel with simple filling of sand or earth
Applications
  • Perimeter security barriers and defense walls
  • Temporary forts and command posts
  • Observation points and border checkpoints
  • Military barrier fortification systems
  • Equipment revetment
  • Explosives and contraband search areas
Galfan Welded Mesh Military Barrier 75x75mm Brown Gabion Wall 0
