itary Barrier / Defensive Bastion Or Army Defensive Bastion With Galfan wire
Product Description
Defensive barrier also named as Defensive bastion, defense wall, blast wall, Sand cage, Welded gabion box, Defense blast wall for itary use, Wire mesh gabion box, Stone cage etc.

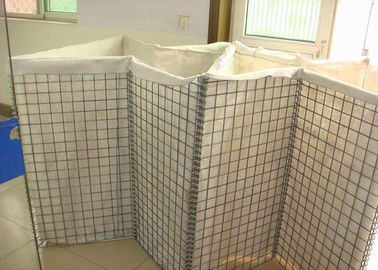

The Defensive barrier is a kind of modern gabion for itary fortification and Flood control. It is made of a collapsible wire mesh container and heavy duty fabric liner, it can be used in separate cell or some cells join together .
Defensive barrier is a prefabricated, multi-cellular system, made of galfan coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins.It is easy installed with using minimal manpower and commonly available equipment.After extended,it is filled into sand,stone,then Defensive barrier like a defence wall or bunker,it is widely use in itary to protect safety.
Specification
Wire Diameter: 4-5mm
Hole Size: 75*75mm,76.2*76.2mm,100*100mm
Geotextile: In heavy duty non-woven polypropylene;
Color: Brown
Finish: Galfan wire.
Packing: Packed in pallet
| Product |
Height |
Width |
Length |
| No-1 |
54"(1.37m) |
42"(1.06m) |
32'9"(10m) |
| No-2 |
24"(0.61m) |
24"(0.61m) |
4'(1.22m) |
| No-3 |
39"(1.00m) |
39"(1.00m) |
32'9"(10m) |
| No-4 |
39"(1.00m) |
60"(1.52m) |
32'9"(10m) |
| No-5 |
24"(0.61m) |
24"(0.61m) |
10'(3.05m) |
| No-6 |
66"(1.68m) |
24"(0.61m) |
10'(3.05m) |
| No-7 |
87"(2.21m) |
84"(2.13m) |
91'(27.74m) |
| No-8 |
54"(1.37m) |
48"(1.22m) |
32'9"(10m) |
| No-9 |
39"(1.00m) |
30"(0.76m) |
30'(9.14m) |
| No-10 |
87"(2.21m) |
60"(1.52m) |
100'(30.5m) |
| No-11 |
48"(1.22m) |
12"(0.3m) |
4'(1.22m) |
| No-12 |
84"(2.13m) |
42"(1.06m)
|
108'(33m)
|
Features of Defensive barriers
1. Collapsible
It is assembled by Panel and Spring Wire, When Loading and transportation, It is Foldable into one piece.
2. Anti-Corrosion
The Raw material is Galfan coated wire, it can use 10 years even more longer, fit for outside protection.
3. Easy Installation
After getting it, Just put it in the right place and open it, Full filled the sand and earth is okay. Even 2-3 persons can finish it.
Application
Perimeter Security Barrier and Defence Wall
Temporary Fort and Command Post
Observation Points and Border Checkpoints
itary Barrier Fortification System
Equipment Revetment
Explosives and Contraband Search Areas
