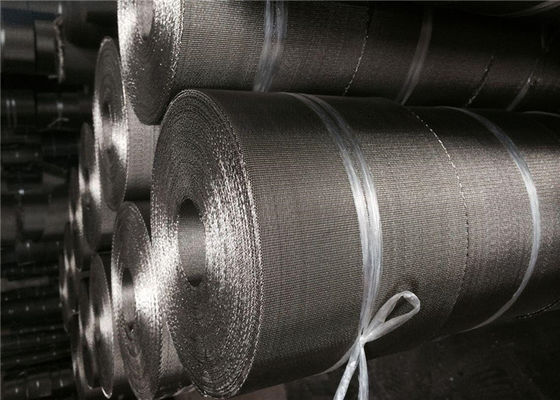

Reverse Dutch Weaving Stainless Steel Wire Mesh/Stainless Steel Twill Dutch Weave Wire Mesh Belt

Name: Reverse Dutch Weaving Stainless Steel Wire Mesh/Stainless Steel Twill Dutch Weave Wire Mesh Belt
Brand: NOVA
SKU: NOVA
Price: 1 USD
Availability: InStock
Rating: 4.8 (172 reviews)

Large Image : Reverse Dutch Weaving Stainless Steel Wire Mesh/Stainless Steel Twill Dutch Weave Wire Mesh Belt

Product Details:

Place of Origin:	CHINA
Brand Name:	NOVA

Payment & Shipping Terms:

Minimum Order Quantity:	5m2 size
Price:	>=1 Square Meters $18.50
Packaging Details:	Inside the roll with "paper tube" to reduce the pressure while loading; Then wrapped with "plastic film" as well as the "woven bag" on the finished roll; Final loaded in the strong wooden case or as customers' requirement.
Delivery Time:	Quantity(Square Meters) 1 - 200 >200 Est. Time(days) 2 To be negotiated
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 Square Meter/Square Meters per Week

Contact Now

Detailed Product Description

Material:	Stainless Steel	Width:	Usually 127mm, Or Customized
Wire Diameter:	0.02mm-0.5mm	Feature:	High Strength,corrosion Resistant,heat Resistant
Shape:	In Roll	Package:	Plywood Case
Application:	Filtering Of Plastic Wire Drawing Bench	Weave Style:	Dutch Weave
Sample:	Free	Certificated:	ISO-9001:2008
High Light:	113m Squared Stainless Steel Wire Mesh , Dutch Weave SS Wire Mesh , 260X40 Stainless Steel Wire Mesh

Reverse Dutch Weaving Stainless Steel Wire Mesh/Stainless Steel Twill Dutch Weave Wire Mesh Belt

Effective area of screen: 113m squared (adjustable)
Filtering precision: 300-70um (adjustable according to sieve mesh)
Mesh belt length: 10m (adjustable)
The width:127mm (adjustable)
Thickness: 2.5mm (adjustable)

Product name	Mesh 260X40 Reversed Dutch Woven Stainless Steel Mesh Belt Filter Screen For Plastic Extruder
Material	Stainless steel 304,201,316 etc
Weaving	Dutch weaving
Mesh size	Mesh 48X10,72x15,132x14,260x40 etc
Width	100mm -1200mm
Length	10-30m

Reverse Dutch Weaving Stainless Steel Wire Mesh/Stainless Steel Twill Dutch Weave Wire Mesh Belt 0

Mesh count	Wire diameter(mm)	Thickness(mm)	Width(mm)
54*15	0.45*0.6	1.75	50--800
72*15	0.45*0.55	1.7	50--800
132*17	0.23*0.45	1.2	50--1000
160*18	0.28*0.45	1.27	50--1000
200*40	0.17*0.27	0.7	50--1500
260*40	0.15*0.27	0.65	50--1500
300*40	0.13*0.27	0.65	50--1500
350*40	0.13*0.27	0.6	50--1500

Reverse Dutch Weaving Stainless Steel Wire Mesh/Stainless Steel Twill Dutch Weave Wire Mesh Belt 1

Application of reverse dutch weaving wire mesh:

--Be widely used in ribbon style continuous screen changers. (automatic screen changers).

--Major in Plastic Extrusion,Melt Filtration and other plastic industry Filed for PP,PS,PVC,ABS,PE,PET etc.

Reverse Dutch Weaving Stainless Steel Wire Mesh/Stainless Steel Twill Dutch Weave Wire Mesh Belt 2

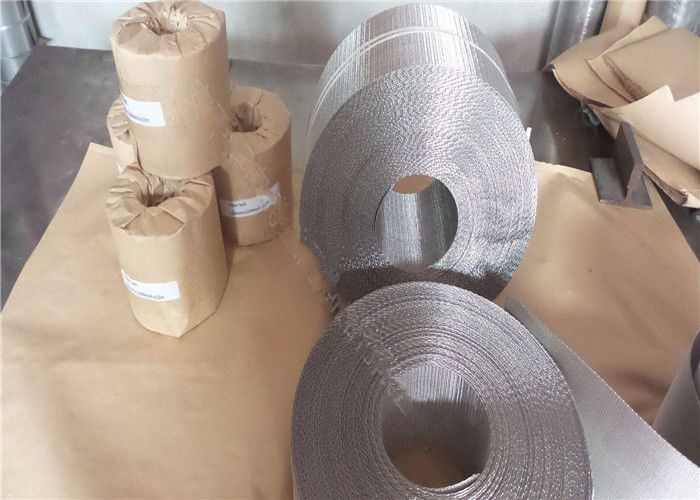

Inside the roll with "paper tube" to reduce the pressure while loading;
Then wrapped with "plastic film" as well as the "woven bag" on the finished roll;
Final loaded in the strong wooden case or as customers' requirement.
We weave wire cloth in all meshes from large openings to fine mesh filter cloth, they are in all types of weaves in any metal that your application requires. We are pleased to supply small or large quantities in roll stock, cut-to size, slit rolls, aggregate screens, discs, circles, heavy woven mesh or custom weaves.


1. Are you a trading company or manufacturer?
-We are manufacturer with more than 14 years production experience, and have our own factory in Anping,hebei
2. Can you provide OEM service?
- Yes, welcome.
3. Can you send me a sample? Is it free?
- Yes, the samples is free, but the courier charge should be on your side
4.The price that you offer me, Could be more discount?
- It will depend on order quantity.
5.Is there any warranty, can exchange it?
- Normally our warranty period is six months. If it is quality problem, we support a replacement, refund.
