32x4mm 30x100mm Drainage Galvanized Bar Grating

Name: 32x4mm 30x100mm Drainage Galvanized Bar Grating
Brand: NOVA
SKU: NOVA
Price: 29.68 USD
Availability: InStock
Rating: 5 (140 reviews)

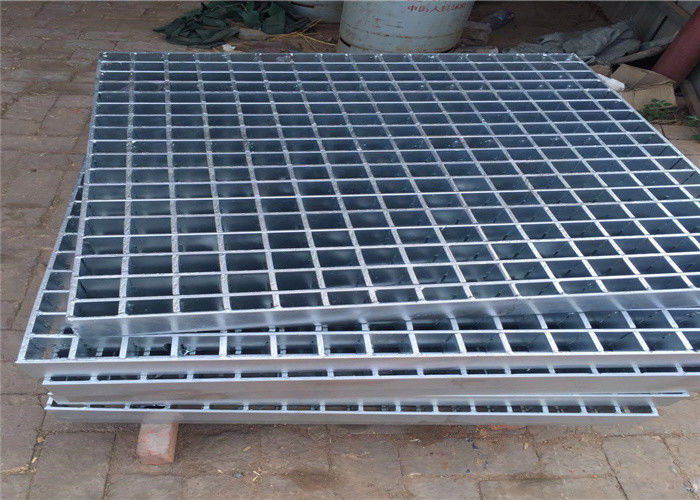

Large Image : 32x4mm 30x100mm Drainage Galvanized Bar Grating

Product Details:

Place of Origin:	CHINA
Brand Name:	NOVA

Payment & Shipping Terms:

Minimum Order Quantity:	5 Ton/Tons
Price:	$29.68 - $59.87/ Ton
Packaging Details:	1. Bandage and Paperboard: Generally applies to neat steel plate; 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; 3. Steel Pallet: Traditional export packing.
Delivery Time:	Quantity(Tons) 1 - 1200 >1200 Est. Time(days) 30 To be negotiated
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Ton/Tons per Week

Contact Now

Detailed Product Description

Material:	Lower Carbon Steel	Steel Grating Size:	3'x20', 3'x24', 3'x30'
Steel Bearing:	30,40,60,100mm	Surface Treatment:	Mild, Galvanized,power Coating
Application:	Trench Drains,Driveway Road,Garage Trench Drain	Specification:	19-w-4, 15-w-2, 30/100, 40/50
Pitch Of Bearing Bar:	15-30mm, 40mm, 60mm, 80mm, 90mm Etc. With 30, 40mm Rec	Pitch Of Cross Bar:	30, 38, 50, 76, 100mm Etc. With 50, 100mm Recommended.
Highlight:	drainage galvanized bar grating , 32x4mm galvanized bar grating , 30x100mm galvanized bar grating

32x4mm 30x100mm drainage steel grating shower drain grates trench drain cover/stainless steel floor drain grate Exterior

Material: Low carbon steel , Stainless steel, etc

Bearing Bar Width: 25mm, 30mm, 32mm, 40mm, 60mm, 80mm, etc

Bearing Bar Thickness: 2.5mm, 3mm, 4mm, 5mm, etc

Bearing Bar Pitch: 30mm, 40mm, 50mm, etc

Cross Bar Diameter: 5mm, 6mm, 8mm, etc.

Surface treatment: Hot dip galvanized, Untreatd, Stainless steel , etc

32x4mm 30x100mm Drainage Galvanized Bar Grating 0

Product name	Steel Grating
Grating Style	Plain type, Serrated type, I Type and Serrated I type steel gratings
Surface Treatment	Black/Untreated (U), Hot dip galvanizing (G), Painting (P)
Usage	industry of Power plant, Oil Refineries,Petrochemistry, Chemical Plant, Water and Waste treatment plant, Ship-building, offshore projects and civil construction (like roads, park) ., etc.

Bearing bar (width * thickness)	253mm,254mm,255mm,303mm,304mm,305mm,323mm,325mm,403mm,404mm,405mm,503mm,504mm,505mm Etc.
Bearing bar pitch (mm)	12.5, 15, 20, 25, 30, 34.3, 35.3, 40,41.25, 50, 60...(30, 40,50 mm are recommended ),also can do the size as customer's request
Cross bar pitch (mm)	38.1, 50, 76.2, 100, 101.6 . Etc.(30, 50, 100 ,150 mm are recommended ),also can do the size as customer's request

32x4mm 30x100mm Drainage Galvanized Bar Grating 1

Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar(width×thickness)
Pitch of Bearing bar	Cross-bar Pitch	20×3	25×3	32×3	40×3	20×5	25×5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar(width×thickness)
Pitch of Bearing bar	Cross-bar Pitch	32×5	40×5	45×5	50×5	55×5	60×5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

Application of drainage trench cover steel grating

Steel grating is mainly used in the chemical industry, food processing, catwalk and trench cover and other industrial as listed: Power plant, Chemical plant, Oil refinery, Steel plant, Machinery plant, Paper-making factory, Waste water treatment, Pharmacy industrial, Food processing,etc.

32x4mm 30x100mm Drainage Galvanized Bar Grating 3

Steel grating usual package:
1. Strap Packaging.
2. Pallet Packaging.
3. Screw Rod Fixation.
4. Other pacakge is available.

32x4mm 30x100mm Drainage Galvanized Bar Grating 4

Q1. Can you provide free sample?

Yes, we can provide 1 free sample.

Q2. Lead time?

7-10 days per container, Challenge the industry's fastest time!

Q3. I need special material, can you help?

Yes, high standards material and high zinc thick can be chosen.

Q4: How can I get a quote?
