304 316l ODM Steel Rope Mesh For Animal Enclosure

304 316l ODM Steel Rope Mesh For Animal Enclosure
304 316l ODM Steel Rope Mesh For Animal Enclosure 304 316l ODM Steel Rope Mesh For Animal Enclosure 304 316l ODM Steel Rope Mesh For Animal Enclosure 304 316l ODM Steel Rope Mesh For Animal Enclosure 304 316l ODM Steel Rope Mesh For Animal Enclosure 304 316l ODM Steel Rope Mesh For Animal Enclosure

Large Image :  304 316l ODM Steel Rope Mesh For Animal Enclosure

Product Details:
Place of Origin: CHINA
Brand Name: NOVA
Payment & Shipping Terms:
Minimum Order Quantity: 10 Square Meter/Square Meters
Price: $5.22 - $26.88/ Square Meter
Packaging Details: (1)bundles or as request (2)Inside the roll with "paper tube" to reduce the pressure while loading. Then wrapped with "plastic film" as well as the "woven bag" on the finished roll. Final loaded in the strong wooden case or as customers' requirement. (3)Th
Delivery Time: Quantity(Square Meters) 1 - 2000 >2000 Est. Time(days) 8 To be negotiated
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Square Meter/Square Meters per Week Rope Mesh 500 sqm per month
Contact Now
Detailed Product Description
Material: Stainless Steel Type: 7x7;7x19
Open Size: 20x20,76x76,120x120 ,etc Wire Diameter: 1.5-2mm
Feature: Acid-resisting Width: 0.1m-8m
Length: 1-30m Hole Shape: Diamond Hole
Usage: Zoo Mesh Aviary Mesh Business Type: Manufacture & Trading
High Light:

316l steel rope mesh

,

304 steel rope mesh

,

ODM steel rope mesh

      304 316L SS rope cable wire net/stainless steel wire rope mesh net/zoo mesh/wire rope mesh for animal enclosure





Specifications of  Stainless Steel Wire Rope Net

Material: SUS302, 304, 316, 316L

Wire diameter: 1.0mm-3.0mm

Structure:7*7,7*19.

Mesh Opening Size:1"*1",2"*2",3"*3",4"*4".

Weaving Types Handwoven, Open type buckle, Closed type buckle.

304 316l ODM Steel Rope Mesh For Animal Enclosure 0

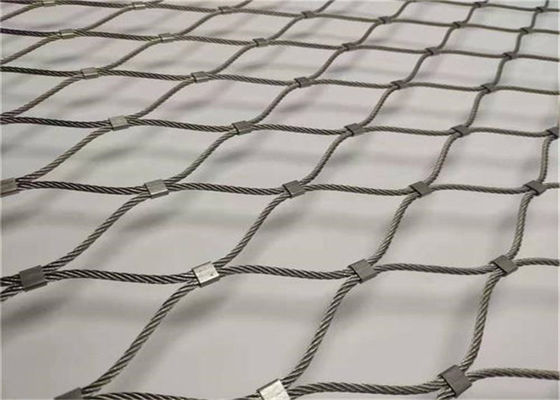

1:Flexible stainless steel cable mesh (Knotted type) Our Flexible stainless steel cable mesh products are supplied in two main series: Inter-woven and Ferrule Type. Inter-woven mesh are hand-woven which was also called hand-woven mesh is made from fine s.s.wire rope . The rope construction is 7 x 7 or 7 x 19 and made from AISI 304 or AISI 316 material group.
Code
Rope Construction
Rope Diameter
Opening Size
Breaking Force
Inch
mm
Inch
mm
KN
WY-01
7 × 19
1/8
3.2
4.7" × 4.7"
120 × 120
7.38
WY-02
7 × 19
1/8
3.2
4" × 4"
102 × 102
7.38
WY-03
7 × 19
1/8
3.2
3.6" × 3.6"
90 × 90
7.38
WY-04
7 × 19
1/8
3.2
3" × 3"
76 × 76
7.38
WY-05
7 × 19
1/8
3.2
2" × 2"
51 × 51
7.38
WY-06
7 × 7
3/32
2.4
4" × 4"
102 × 102
4.18
WY-07
7 × 7
3/32
2.4
3.6" × 3.6"
90 × 90
4.18
WY-08
7 × 7
3/32
2.4
3" × 3"
76 × 76
4.18
WY-09
7 × 7
3/32
2.4
2.4" × 2.4"
60 × 60
4.18
WY-10
7 × 7
3/32
2.4
2" × 2"
51 × 51
4.18
WY-11
7 × 7
5/64
2
3" × 3"
76 × 76
3.17
WY-12
7 × 7
5/64
2
2.4" × 2.4"
60 × 60
3.17
WY-13
7 × 7
5/64
2
2" × 2"
51 × 51
3.17
WY-14
7 × 7
5/64
2
1.5" × 1.5"
38 × 38
3.17
WY-15
7 × 7
1/16
1.6
3" × 3"
76 × 76
2.17
WY-16
7 × 7
1/16
1.6
2" × 2"
51 × 51
2.17
WY-17
7 × 7
1/16
1.6
1.5" × 1.5"
38 × 38
2.17
WY-18
7 × 7
1/16
1.6
1.2" × 1.2"
30 × 30
2.17
WY-19
7 × 7
1/16
1.6
1" × 1"
25 × 25
2.17
WY-20
7 × 7
3/64
1.2
2" × 2"
51 × 51
1.22
WY-21
7 × 7
3/64
1.2
1.5" × 1.5"
38 × 38
1.22
WY-22
7 × 7
3/64
1.2
1.2" × 1.2"
30 × 30
1.22
WY-23
7 × 7
3/64
1.2
1" × 1"
25 × 25
1.22
WY-24
7 × 7
3/64
1.2
0.8" × 0.8"
20 × 20
1.22
2:Flexible stainless steel cable mesh (Ferrule type) The ferrule type series are sub-divided into aluminum alloy mesh ,stainless steel ,tinned copper and nickled copper mesh by the material of the ferrule. The ferrule type mesh, are more used in fields like balustrades on WYidges and staircases, large barrier fences, and building facade trellis systems.
Code
Rope Construction
Rope Diameter
Aperture
Breaking Force
Inch
mm
mm
kN
WY-01
7 × 19
1/8
3.2
120 × 208
7.38
WY-02
7 × 19
1/8
3.2
100 × 173
7.38
WY-03
7 × 19
1/8
3.2
90 × 156
7.38
WY-04
7 × 7
3/32
2.4
100 × 173
4.18
WY-05
7 × 7
3/32
2.4
90 × 156
4.18
WY-06
7 × 7
3/32
2.4
80 × 139
4.18
WY-07
7 × 7
3/32
2.4
70 × 121
4.18
WY-08
7 × 7
5/64
2
100 × 173
3.17
WY-09
7 × 7
5/64
2
90 × 156
3.17
WY-10
7 × 7
5/64
2
80 × 139
3.17
WY-11
7 × 7
5/64
2
70 × 121
3.17
WY-12
7 × 7
1/16
1.6
80 × 139
2.17
WY-13
7 × 7
1/16
1.6
70 × 121
2.17
WY-14
7 × 7
1/16
1.6
60 × 104
2.17
WY-15
7 × 7
1/16
1.6
51 × 87
2.17
WY-16
7 × 7
3/64
1.2
80 × 139
1.22
WY-17
7 × 7
3/64
1.2
60 × 104
1.22
WY-18
7 × 7
3/64
1.2
50 × 87
1.22
WY-19
7 × 7
3/64
1.2
40 × 69
1.22

304 316l ODM Steel Rope Mesh For Animal Enclosure 1

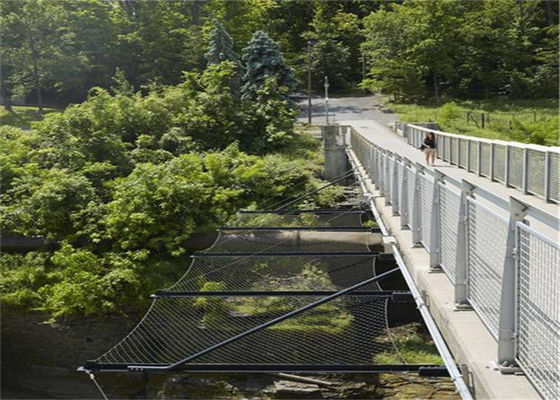

Application of stainless steel cable mesh

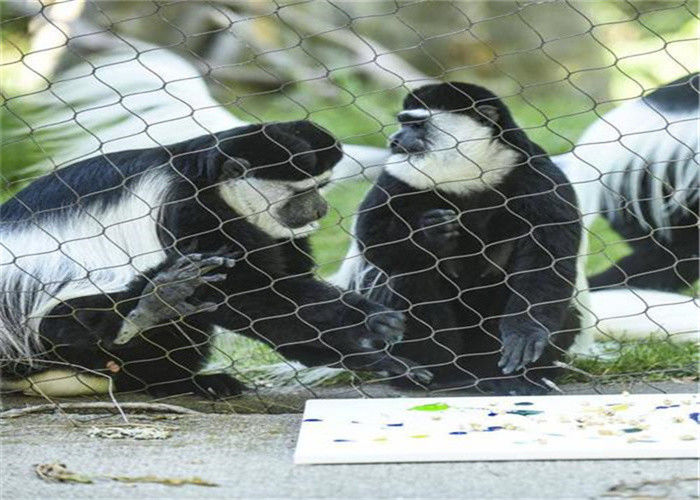

* Zoo construction: animal enclosures, aviary mesh, bird cage, wildlife park, marine park, etc.

* Protective device: playground fence, acrobatic show protection net, wire rope mesh fence, etc Architecture safety net: stair/balcony railing, balustrade, safety net, anti-fall net, etc.

* Decorative net: garden decoration, wall decoration, interior decoration net, outdoor decoration, green wall (plants climbing support)

304 316l ODM Steel Rope Mesh For Animal Enclosure 2

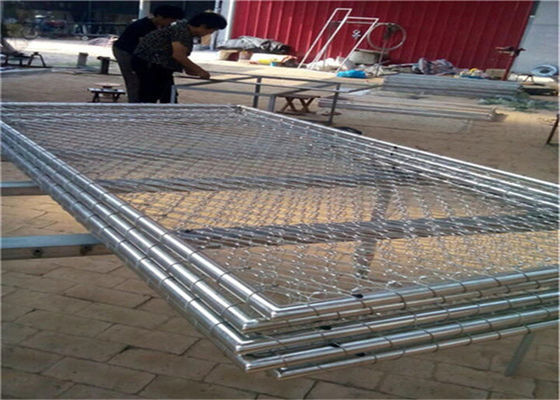

Packaging & Shipping

Inside plastic film, outside wooden case, or water proof weave bags.

304 316l ODM Steel Rope Mesh For Animal Enclosure 3



Our Service for stainless steel rope zoo mesh



1. Provide free samples quickly .



2.We have a professional team to design suitable field fence for you.



3.With the fastest speed of delivery.



4.High quality after-sales service (such as quality review, shipping tracking, etc.)





If you have any questions,please don't hesitate to contact us.



Tag:

decorative wire mesh panels,

decorative woven wire mesh,

chain mesh curtains
