Product Details:
Payment & Shipping Terms:
|
Material: | Metal Wire | Filter Rating: | 98% |
---|---|---|---|
Hole Shape: | Irregular | Width: | 30mm-1060mm |
Wire Diameter: | 0.1mm-0.30mm | Length: | 30-70m/roll |
Thickness: | 0.12-2.5 Mm | Feature: | Corrosion Resistance Light Weight |
Mesh Opening: | 4 Mm*3 Mm 5 Mm*6 Mm 4 Mm*5 Mm | Application: | Kinds Filtration Industry |
Package: | Opp Bag + Paper Carton | Core Components: | Gas Liquid Filter Wire Mesh |
Size: | 0.5m*1m/1m*1m/0.6m*1.2m/1.2m*1.2m | ||
High Light: | alcohol filter knitted copper mesh,gasoline filter knitted copper mesh,knitted copper mesh 30mm width |

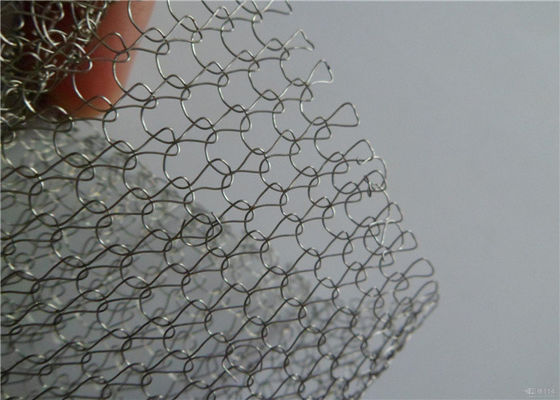

Knitted Wire Mesh Copper Wire 100% Pure Copper Alcohol Or Gasoline Used Gas-liquid Filter Mesh/150 mm Width Knitted Mesh
1. The range of silk warp: 0.07mm-0.55mm (commonly used silk warp is: 0.20mm-0.25mm) In addition, multiple strands of silk are twisted together to weave.
2. Opening size: from (2×3mm) to (4×5mm) to (12×6mm). In addition, the opening size can be fine-tuned according to customer requirements. The opening form is the cross arrangement of large and small holes (the size of the holes in the length direction is the same, the width is different)
3. The surface condition of the gas-liquid filter: flat mesh surface and corrugated mesh surface (the width and depth of the corrugation have different specifications)
4. Width range of gas-liquid filter: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400, 500mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm, etc.

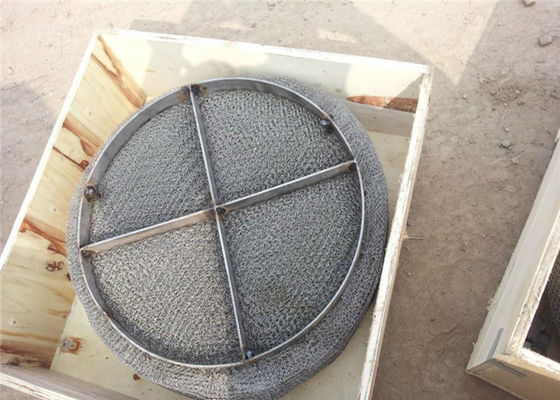

Application:Gas-liquid filter serves well in filtering and deleting the particle mixture in foam, liquid and air, by way of distillating, absorbing, evaporating and filtering process, in petroleum, chemicals, metallurgy, machine, pharmaceuticals, automobile and environmental protection
Specification
Material | Stainless steel, copper, brass, nickle, polypropylene, alloy or galvanized iron wire. |
Manufacturing method | Machine knitting. |
Type | Flattened type, ginning type. |
Wire shape | Round wire, flat wire. |
Wire number | Single wire, double wires, three wires. |
Specifications of stainless steel flat wire knitted mesh | |||||
Item | Wire diameter(mm) | Mesh Opening or Loop Size(mm) | Number of Needles | Maximum Width(mm) | Minimum Width(mm) |
01 | 0.1*0.3 | 2*4 | 36 | 60 | 55 |
02 | 0.1*0.3 | 4.5*4 | 34 | 150 | 100 |
03 | 0.1*0.4 | 4.5*5.5 | 40 | 150 | 120 |
04 | 0.1*0.4 | 4*3.5 | 56 | 205 | 180 |
05 | 0.1*0.4 | 4*4 | 65 | 260 | 240 |
06 | 0.2*0.4 | 5.2*3.5 | 94 | 420 | 380 |
07 | 0.2*0.4 | 7.5*5.5 | 102 | 565 | 490 |
08 | 0.2*0.5 | 5*4 | 128 | 560 | 470 |
Features of Nickel Knitted Wire Mesh For Vapour Liquid Filtering:
A variety of metal wire and non-metallic silk production, the specific absorption of evaporation, and high temperatures, strong corrosion resistance, the elimination of steam in the attach the gas or liquid droplets.
Package of Knitted Wire Mesh For Vapour Liquid Filtering
A: Prompt, professional and patient reply
Offer best quality productsA: Timely tracking cargo transportation
Building customer files for regularly visitA: Special requirements can be customized.
A: Air Transportation,Sea Transportation
International Express: DHL,TNT,Fedex, UPS, EMS etc
