60 Mesh Electric Furnace Decorative Metal Mesh 300 Micron

      300 micron 60 mesh molybdenum wire mesh for electric furnace/molybdenum wire mesh/Molybdenum mesh screen

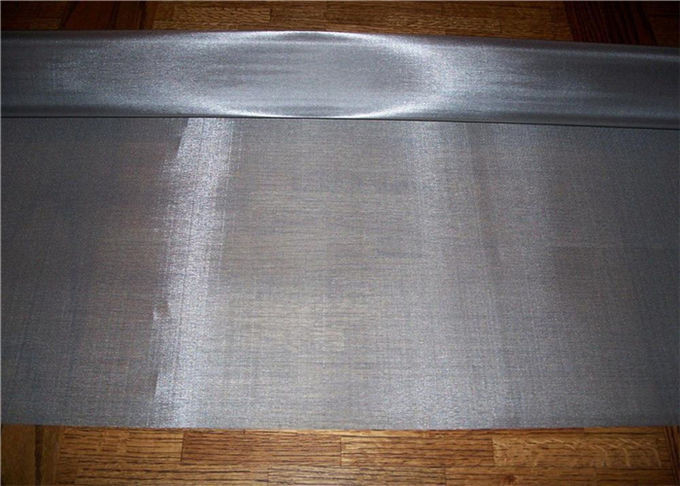

Molybdenum Wire Mesh

Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.

Molybdenum melting point is 2640 ℃, can resist high temperature. molybdenum material can reach 99.95% ~99.99 pure. Molybdenum wire mesh is stable in air and water in the normal temperature, there is no reaction in hydrochloric acid, hydrofluoric acid, nitric acid and alkali solution. Pure molybdenum wires was used forhigh temperature furnace and electric spark machining and cutting line.

The molybdenum wires can be woven to the wire cloth which widely used in sieving and filtering in aviation, aerospace, nuclear power, new energy and other fields.

Specification of Molybdenum Wire Mesh

Type: black molybdnum mesh and bright molybdnum mesh

Wire Diameter: 0.06mm--2.5mm

Aperture Size:0.025mm- 2mm

Mesh: 5-400 mesh

Woven Pattern: plain weave & twill weave

Width:1meter or as alients request

Usage : High-temperature electric furnace, petroleum, chemical equipment, food, medicine, machinery manufacturing, itary, aerospace, electronics, electrician, etc.

1. paper tube support inside + craft paper + wire mesh + craft paper + air bubble paper + paper tube + wooden box

2. Special packing can be customized

3. Wooden Pallet

1. How to make a inquiry of Molybdenum Mesh ?
You need to provide material,mesh number, wire diameter,size and the quantity to ask an offer, you can also indicate if you have any special requirement. We'll providea formal quotatiom list after your inquiry received.

2. Could you provide free sample ?
Yes, we can provide free sample in half A4 size together with our catalogue. But the courier charge will on your side. We'll send back the courier charge if you make an order.
