1mx2m High Intensity Clashproof Gabion Barriers Used For itary Fortifications

1m*2m High Intensity Clashproof Gabion Barriers Known As Gabion Box Used For itary Fortifications

1, itary Sand Barrier Description:

The known colloquially as the Sand , Sand barrier or Sand bastion, is a modern gabion primarily used for flood control and itary fortifications,It's made of a collapsible wire mesh container and heavy duty fabric liner, are used as a temporary to semi-perment levee or blast wall against small-arms fire or explosives.

Originally designed for use on beaches and marshes for erosion and flood control, The Sand barrier quickly became a popular security device in the conflict area.


2,How to make the itary Sand Barrier in the factory?

 (1)we need to confirm the material details like wire surface treatment, the galvanized wire is highly used for this products. the hole size , we have 45mm*45mm,50mm*50mm hole size could be used , but it's adjustable, the bigger size  we could save the cost .

(2) Geotextile cloth would be used 100g/per meter and the sand color would be recommanded.

(3) the wire mesh panel size and geotextile cloth size would be confirmed based on the designer from the customer.

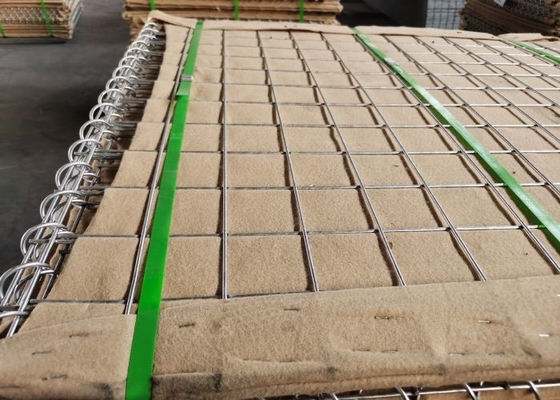

(4)we would used the spring wire to assemable the wire mesh panel into box and air nail gun to punch the geotextile cloth into the box

(5) Quality check

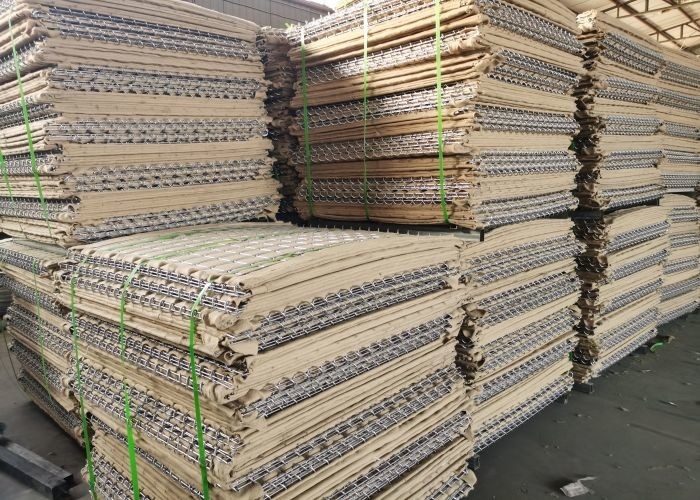

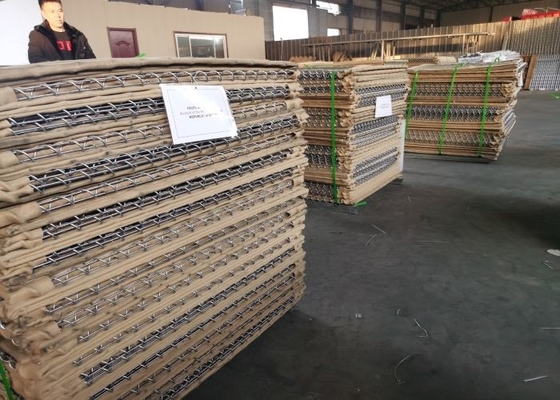

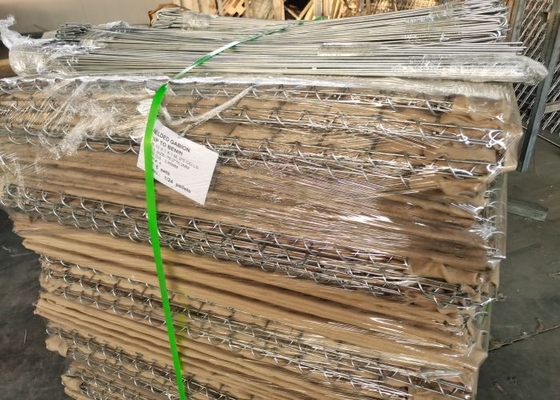

(6)Packing

3 How to assembe the Sand Barrier:

Assembling the Sand DB units entails unfolding it and filling it with sand,soil or gravel,usually using a front end loader, the placement of the barrier is generally very siar to the placement of a sandbag barriers or earth berm except that room must generally be allowed for the equipment used to fill the barrier.

4 The advantage of Sand barrier

The main advantageof Sand barriers stronglt contributing to their popularity with troops and flood fighters, is the quick and easy setup, Previously ,people had to fill sandbags, a slow undertaking with one worker filling about 20 sandbags per hour, Workers using Sand barriers and a front end loader can do ten times the work of those using sandbags

The Sand barrier is designed to be quickly and easily assembled, requiring minimal manpower and equipment. The interconnected cells allow for flexibility in shape and size, enabling the construction of straight or curved barriers to suit the specific project requirements.

These barriers are highly effective in providing protection against ballistic threats, vehicle-borne improvised explosive devices (VBIEDs), and erosion control in flood-prone areas. They are also reusable and can be disassembled and relocated as needed.

Overall, the Sand barrier system offers a versatile and efficient solution for perimeter security, itary operations, disaster response, and other applications that require rapid and reliable protection or containment.
