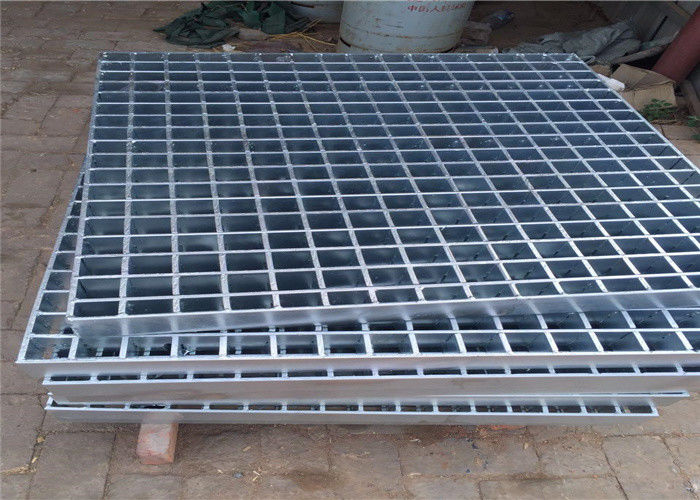

Galvanized Steel Bar Grating 32x4mm 30x100mm for Drainage

Galvanized Steel Bar Grating 32x4mm 30x100mm for Drainage
Galvanized Steel Bar Grating 32x4mm 30x100mm for Drainage

Large Image :  Galvanized Steel Bar Grating 32x4mm 30x100mm for Drainage

Product Details:
Place of Origin: CHINA
Brand Name: NOVA
Payment & Shipping Terms:
Minimum Order Quantity: 5 Ton/Tons
Price: 1-50US$/m2
Packaging Details: 1. Bandage and Paperboard: Generally applies to neat steel plate; 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; 3. Steel Pallet: Traditional export packing.
Delivery Time: Quantity(Tons) 1 - 1200 >1200 Est. Time(days) 30 To be negotiated
Payment Terms: L/C,T/T,Western Union
Supply Ability: 60 Ton/Tons per Week
Contact Now

Galvanized Steel Bar Grating 32x4mm 30x100mm for Drainage

Description
Material: Lower Carbon Steel Steel Grating Size: 3'x20', 3'x24', 3'x30'
Steel Bearing: 30,40,60,100mm Surface Treatment: D, Galvanized,power Coating
Application: Trench Drains,Driveway Road,Garage Trench Drain Specification: 19-w-4, 15-w-2, 30/100, 40/50
Pitch Of Bearing Bar: 15-30mm, 40mm, 60mm, 80mm, 90mm Etc. With 30, 40mm Rec Pitch Of Cross Bar: 30, 38, 50, 76, 100mm Etc. With 50, 100mm Recommended.
Highlight:

drainage galvanized bar grating

,

32x4mm galvanized bar grating

,

30x100mm galvanized bar grating

32x4mm 30x100mm Drainage Galvanized Bar Grating
32x4mm 30x100mm drainage steel grating shower drain grates trench drain cover/stainless steel floor drain grate Exterior
Material Options
  • Low carbon steel
  • Stainless steel
  • Other materials available
Standard Specifications
  • Bearing Bar Width: 25mm, 30mm, 32mm, 40mm, 60mm, 80mm, etc
  • Bearing Bar Thickness: 2.5mm, 3mm, 4mm, 5mm, etc
  • Bearing Bar Pitch: 30mm, 40mm, 50mm, etc
  • Cross Bar Diameter: 5mm, 6mm, 8mm, etc.
  • Surface treatment: Hot dip galvanized, Untreated, Stainless steel, etc
Galvanized Steel Bar Grating 32x4mm 30x100mm for Drainage 0
Product name Steel Grating
Grating Style Plain type, Serrated type, I Type and Serrated I type steel gratings
Surface Treatment Black/Untreated (U), Hot dip galvanizing (G), Painting (P)
Usage Power plants, Oil Refineries, Petrochemical plants, Chemical Plants, Water and Waste treatment plants, Ship-building, offshore projects and civil construction (roads, parks), etc.
Detailed Specifications
Bearing bar (width × thickness) 25×3mm, 25×4mm, 25×5mm, 30×3mm, 30×4mm, 30×5mm, 32×3mm, 32×5mm, 40×3mm, 40×4mm, 40×5mm, 50×3mm, 50×4mm, 50×5mm, etc.
Bearing bar pitch (mm) 12.5, 15, 20, 25, 30, 34.3, 35.3, 40, 41.25, 50, 60 (30, 40, 50mm recommended), custom sizes available
Cross bar pitch (mm) 38.1, 50, 76.2, 100, 101.6 (30, 50, 100, 150mm recommended), custom sizes available
Galvanized Steel Bar Grating 32x4mm 30x100mm for Drainage 1
Standard Product Codes
Pitch of Bearing bar Cross-bar Pitch Specification of bearing bar (width×thickness)
30 100 G203/30/100, G253/30/100, G323/30/100, G403/30/100, G205/30/100, G255/30/100
50 G203/30/50, G253/30/50, G323/30/50, G403/30/50, G205/30/50, G255/30/50
40 100 G203/40/100, G253/40/100, G323/40/100, G403/40/100, G205/40/100, G255/40/100
50 G203/40/50, G253/40/50, G323/40/50, G403/40/50, G205/40/50, G255/40/50
60 50 G253/60/50, G403/60/50, G205/60/50, G255/60/50
Galvanized Steel Bar Grating 32x4mm 30x100mm for Drainage 2
Applications
Steel grating is primarily used in chemical plants, food processing facilities, catwalks, trench covers, and various industrial settings including:
  • Power plants
  • Chemical plants
  • Oil refineries
  • Steel plants
  • Machinery plants
  • Paper-making factories
  • Waste water treatment facilities
  • Pharmaceutical industry
  • Food processing plants
Galvanized Steel Bar Grating 32x4mm 30x100mm for Drainage 3
Packaging Options
  • Strap Packaging
  • Pallet Packaging
  • Screw Rod Fixation
  • Custom packaging available
Galvanized Steel Bar Grating 32x4mm 30x100mm for Drainage 4
Frequently Asked Questions
Q1. Can you provide free sample?
Yes, we can provide 1 free sample.
Q2. Lead time?
7-10 days per container, challenging the industry's fastest time!
Q3. I need special material, can you help?
Yes, high standards material and high zinc thickness can be chosen.
Q4: How can I get a quote?
Contact us with specification, size, quantity and your port, then fast quote will be sent.
