Easy Install Hot - Dipped Galvanized Reno River Mattress For Protection

small.img.alt small.img.alt

Large Image :  Easy Install Hot - Dipped Galvanized Reno River Mattress For Protection

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-201
Payment & Shipping Terms:
Minimum Order Quantity: 1000 sets
Price: Negotiable
Packaging Details: Covered with plastic, in pallet.
Delivery Time: 5-10 days, according to buyer's requirement
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets per week
Detailed Product Description
Wire Diameter: 2.0-4.0mm Aperture Sizes: 60*80,80*100,100*120,120*150mm Etc
Type: Hexagonal Mesh Material: Galvanized Iron Wire,galvanized Steel Wire
Length: 2m,3m,4m,6m Width: 1m, 2m
Color: Silver Feature: Easily Assembled
High Light:

metal welded wire mesh


landscape rock cages

Easy Install Hot-dipped Galvanized Reno River Mattress For Protection


Product Description:


Gabions & Reno Mattresses are rectangular baskets made of heavily galvanized, double twisted, steel woven wire mesh. The single unit constructed baskets are assembled, laced together and then filled with stone to form a monolithic structure.

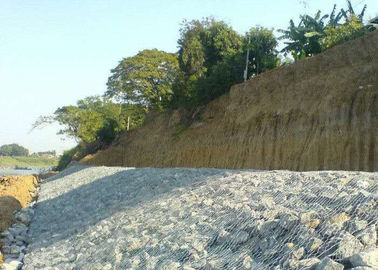

On sites where less depth and more surface area protection is required, a special type of gabion is used. Referred to as Reno Mattresses, these units are wider, with less depth than standard gabions. Reno Mattresses are often used as flexible foundation slabs under gabions. Or you may see them used as channel linings and revetment mats.


Specification of River Mattress

Length(m) width(m) height(m) Diaphragm quantity
3m 1m 0.15-0.45 2
4m 1m 0.15-0.45 3
5m 1m 0.15-0.45 4
6m 1m 0.15-0.45 5


Gabion mesh Features:


ENVIRONMENTAL FRIENDLINESS–Gabions and Reno mattresses are environmentally friendly products.


PERMEABILITY–The stone fill allows the water to seep through the structure while retaining the soil, therefore no additional drainage is required to relieve the hydrostatic pressures.


EASY TO BUILD–Gabions and Reno mattresses construction does not require skilled labor because they are very easy to build.


How to built gabion mattress?


Step 1 Reno Mattress Erosion Control

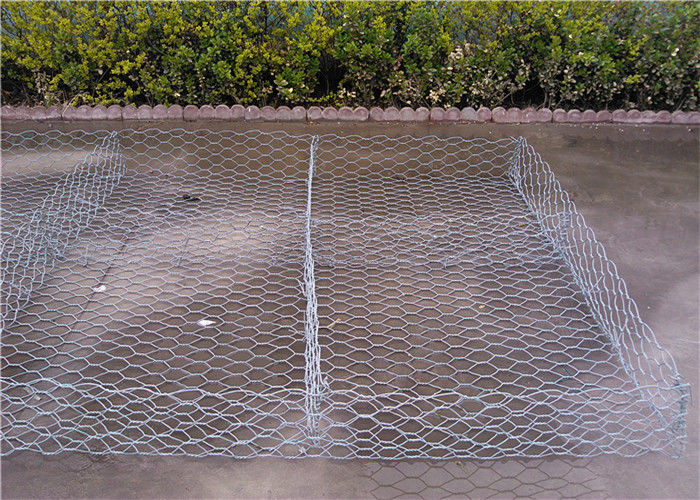

Individual Mattress is first unfolded on flat, hard ground and stamped to remove all kinks. The two long sides and both end panels are then lifted upright and secured in position by tying the selvedge wires together.


Step 2 Reno Mattress Assembly

The vertical edges of all internal diaphragms are attached to the sides and laced with typing wire or approved interlocking wire fastener.


Step 3 Reno Mattress Slopes River Beds

The assembled Mattress is then aligned in the required position and tied or fastened to adjacent mattress along the whole length of selvedge wire. Mattress units should be placed in proper position so that movement of rock fill inside the cage -- due to gravity or flowing current -- is minimal. Thus, on slopes, Mattresses should be placed with its internal diaphragms at right angles to the direction of the slope. On river beds, position Mattress with the internal diaphragms at right angles to the direction flow.


Step 4 Reno Mattress Hexagonal Mesh

The stone is placed into the compartments (cells). If it's a slope, start from the bottom. One or more Mattresses can be filled at the same time.


Step 5 Reno Mattress Erosion Control

Sequence the installation by keeping the stone filling crew well ahead of the lid placement crew. Lids or top panels must be securely tied or fastened to side-tops and end panels and also to the top of the inner partitions.


Step 6 Reno Mattress Form Cut Assembly

The Mattresses may be either telescoped or cut to form and tied at required shape when necessary, e.g. when Mattresses are laid on a radius. For a sharp curve, it may be necessary to cut the Mattress diagonally into triangular sections and tie the open side securely to an intact side panel.


When requesting a quote, please specify:

size of units (LxWxH)
type of mesh size (60*80,80*100mm)
type of coating (galvanized wire, galfan wire,pvc coated wire)
Wire diameter(2mm,3mm)
