|Hole Shape:||Square||Size:||1*1*1,2*1*1,3*1*1 Etc|
|Surface:||Galvanized Or Galfan Coated||Material:||Galfan Wire|
|Applications:||Architectural Wall Cladding Gabions||Feature:||Strong|
wire mesh stone retaining wall,
gabion wire mesh panels

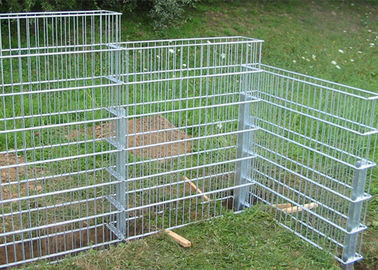

Welded mesh gabions for architectural wall cladding / galfan coated gabions

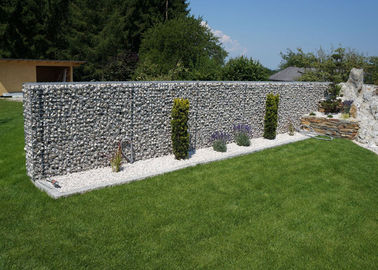

Welded Gabions are mostly used as soil protection retaining wall or mass gravity retaining structures for landscape construction. Weld Mesh Gabions also have been regularly used as architectural retaining walls, as well as architectural cladding for buildings, there are 3 types of architectural gabions: Galvanized steel wire gabions, pvc coated gabions or Galfan coated welded gabions. The cages are filled with stone to form a flat container form, then placed one by one and connected firmly to each other with high tensile lacing wire. They are used to build an ancient-feeling cladding for the walls in castles or villa. Welded mesh gabions inner lined with geo-mat can be used for military bastion.
|Nominal gabions basket size (m)||No. of diaphragms
|Capacity per basket
Advantages of Gabions:
One of the most important advantages of double twisted mesh gabions & reno mattresses is their flexibility both for the individual unit and the overall gabion or reno mattress structure. The Double Twisted Hexagonal Mesh construction of the units permits it to tolerate differential settlement without failure. This property is especially important when a structure is on unstable soil conditions or in areas where scour from wave action or currents can undermine the toe of the structure and cause structural settlement.
Gabions & Reno Mattresses built from high strength double twisted hexagonal mesh filled with natural hard durable stone and connected together to create a monolithic mass structure capable of undergoing structural movement without any loss of structural integrity creating a highly durable structure.
Double Twisted Hexagonal Mesh Gabions & Reno Mattresses possess the strength and flexibility to withstand forces generated by water and earth masses. The most important and relevant strength characteristics pertaining to gabion and reno mattress design standards are the mesh punch strength, the mesh tensile strength, the pull apart resistance strength of the mesh, and the corrosion resistance of the mesh. The strength values of the double twisted mesh are located within the individual product specifications for each product and are represented in ASTM A975-97.
Gabions & Reno Mattresses create structures that are naturally free draining. Hydrostatic heads do not develop behind gabion and reno mattress structures. Drainage is accomplished by gravity and by evaporation as the porous structure permits an active air circulation through it. Moreover, as soil is deposited and plant growth invades the structure, transpiration further assist in removing moisture from the soil being protected.
Gabions & Reno Mattresses offer an environmentally sensitive solution to soil retention slope stabilization. Gabion and reno mattress structures utilize natural stone for their stability and strength. Constructed of natural stone fill the gabions are naturally porous allowing interaction between the land and the water table. Soil will generally be deposited in the small voids of the stone fill material during drainage and draw down and will promote vegetated growth inundating the structure. Over time in some applications the structure can become so inundated with vegetation as to no longer be visible. Vegetation, plant and tree growth can be implemented at the time of construction utilizing several methods to ensure vegetation occurs immediately.
The overall strength characteristics offered by the double twisted hexagonal mesh gabion and reno mattress listed above and the long successful history of the material usage world wide ensures that the double twisted mesh gabions and reno mattresses will perform as designed.
Low Construction Cost
Gabions & Reno Mattress installations are very cost effective. Gabions & Reno Mattresses are easy to construct requiring limited equipment, unskilled labor, minimal foundation preparation, no drainage provisions, and low cost stone fill generally provided by a local stone or rock supplier. Gabion & Reno Mattress structures require very little if any maintenance and if designed and built properly can be a permanent structure.
Gabions & Reno Mattresses constructed with care can create visually pleasing structures. Unlike other types of materials such a modular block walls the gabion stones do not discolor due to drainage. In fact the longer a gabion or reno mattress structure is in place and becomes inundated with vegetation the more aesthetic it becomes.
you’ll find them used extensively where a neat appearance and clean outline are important, such as public areas, housing developments, landscaping and gardens.
Retaining wall structures
River and canal training
Erosion and scour protection; roadway protection; bridge protection
Hydraulic structures, dams and culverts
Coastal embankment works
Rockfall and soil erosion protection
Architectural cladding for walls and buildings
Freestanding walls, noise and environmental barriers
Architectural Gabion Applications
When requesting a quote, please specify:
size of units (LxWxH)
type of mesh size (50*50,100*100mm)
type of coating (galvanized wire, galfan wire)
