Galvanized Hexagonal Wire Mesh 2.7mm 6x8cm for Slope Protection

Large Image : Galvanized Hexagonal Wire Mesh 2.7mm 6x8cm for Slope Protection

Product Details:

Place of Origin:	China
Brand Name:	Nova
Certification:	ISO9001
Model Number:	Nova-237

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meter
Price:	1-50US$/m2
Packaging Details:	In Roll
Delivery Time:	10-15 days after received the deposit
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	10000 square meters per month

Contact Now

Galvanized Hexagonal Wire Mesh 2.7mm 6x8cm for Slope Protection

Description

Material::	Galvanized Wire	Wire Diameter::	2.7 Mm / 3.0 Mm.
Mesh Size::	6 Cm × 8 Cm, 8 Cm × 10 Cm.	Roll Width::	Max.4m
Roll Length::	50m,100m	Surface:	Galvanized,pvc Coated
Highlight:	rockfall fence , metal ring mesh

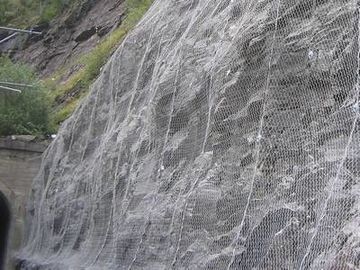

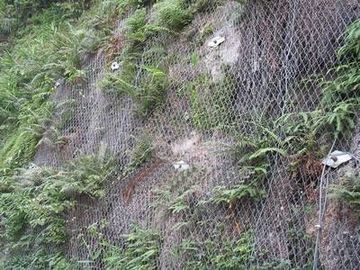

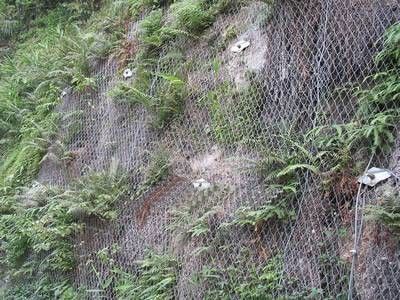

Galvanized Hexagonal Wire Mesh for Bank & Mountain Protection

Product Description

Hexagonal wire mesh is constructed from high carbon steel wire, forming part of the Tecco mesh system - an active rockfall barrier solution. The complete system includes Tecco mesh, wire rope anchors, spike plates, boundary ropes, sewing ropes, and steel clips.

This system is designed for:

Stabilization and reinforcement of soil and rock slopes
Reinforcement of isolated dangerous rock formations
Sliding control measures when combined with deep anchoring

Our production system is ISO 9001 certified, ensuring consistent quality standards.

Technical Specifications

Parameter	TECCOG45/2	TECCOG65/3	TECCOG65/4
Tensile strength wire mesh	min.85 kN/m	min.150 kN/m	min.250 kN/m
Number of meshes transverse	16.1 pcs./m	12 pcs./m	12 pcs./m
Number of meshes longitudinal	10.5 pcs./m	7 pcs/m	7.2 pcs./m
Wire diameter	2.0 mm	3.0 mm	4.0 mm
Steel quality	high-tensile steel wire
Diagonal	62*95 mm(+/-3%)	83*143 mm (+/-3%)	83*138mm(+/-3%)
Mesh width	48 mm (+/-3%)	65 mm (+1-3%)	63 mm(+/-3%)
Weight per m²	1.15 kg/m²	1.65 kg/m²	3.3 kg/m²
Corrosion protection	Zn/Al coating of steel wires
Compound of protection	95%Zn/5%Al
Coating thickness	≥115 g/m²	≥150 g/m²	≥150 g/m²
Bearing resistance against puncturing	80/110 kN	180/240 kN	180/240 kN
Bearing resistance against shearing-off	10/10 kN	30/45 kN	50/75 kN
Bearing resistance against slope-parallel tensile stress	40/55 kN	90/120 kN	140/185 kN
