Galvanized Welded Military Gabion Box 50x50mm Mesh Hot Dip Galvanized

Galvanized Welded Military Gabion Box 50x50mm Mesh Hot Dip Galvanized
Galvanized Welded Military Gabion Box 50x50mm Mesh Hot Dip Galvanized Galvanized Welded Military Gabion Box 50x50mm Mesh Hot Dip Galvanized Galvanized Welded Military Gabion Box 50x50mm Mesh Hot Dip Galvanized Galvanized Welded Military Gabion Box 50x50mm Mesh Hot Dip Galvanized

Large Image :  Galvanized Welded Military Gabion Box 50x50mm Mesh Hot Dip Galvanized

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-244
Payment & Shipping Terms:
Minimum Order Quantity: 100 sets
Price: 1-50US$/m2

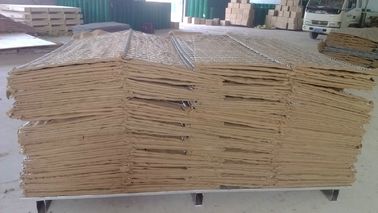

Packaging Details: Defensive barrier were packed on pallets, then wrapped with plastic film
Delivery Time: 10-15 days after received the deposit
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 3000 sets per week
Contact Now

Galvanized Welded Military Gabion Box 50x50mm Mesh Hot Dip Galvanized

Description
Material：: Hot Dip Galvanized Wire Color：: Sliver
Wire Diameter :: 2-6mm Spring Wire Diameter :: 3mm,4mm,5mm,6mm Etc
Mesh Hole Size :: 50x50mm
Highlight:

welded bastion wall

,

welded army barrier

,

galvanized army barrier

Galvanized Welded Army Barrier Military Sand Wall Defensive Security Military Gabion Box

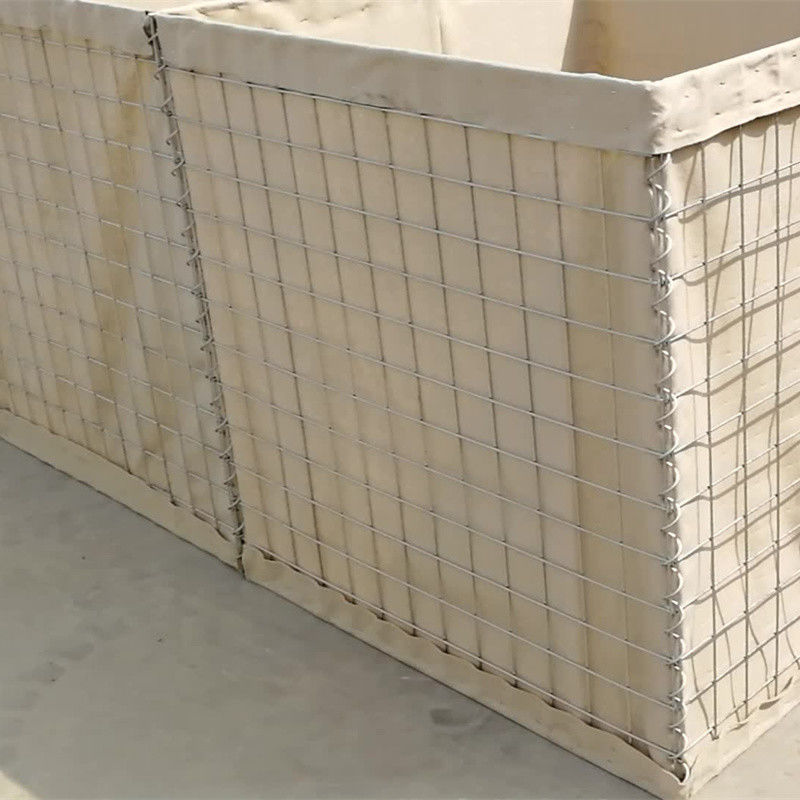

The Welded Military Gabion Box is a multi-cellular wall system manufactured from welded Zinc-Aluminum coated/hot dipped galvanized steel wire mesh and joined with vertical, helical coil joints.

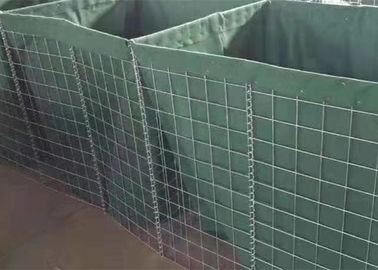

The units are lined with either beige or green colored heavy-duty non-woven polypropylene geotextile. Can be filled with sand, earth, cement, or stone to function as a defense wall or bunker, widely used in military applications for safety protection.
Unlike common welded gabions, after setup in the field, this defensive barrier can be filled with soil, sand or gravel to become a protection wall. This makes raw materials very easy to obtain, especially suitable for coastal areas where sand is abundant.
Specifications
Material Galvanized Iron Wire
Type Welded Mesh
Hole Shape Square
Aperture 50×50mm
Wire Diameter 2.0-6.0mm
Surface Treatment Galvanized
Usage Protection
Feature Easily Assembled
Packing Pallet
Length 30m
Width 0.5m-3m
Standard Dimensions
Height Width Length Cells
54" (1.37m) 42" (1.06m) 32'9" (10m) 1×4+1×5 cells
24" (0.61m) 24" (0.61m) 4' (1.22m) 2 cells
39" (1.00m) 39" (1.00m) 32'9" (10m) 2×5 cells
39" (1.00m) 60" (1.52m) 32'9" (10m) 2×5 cells
24" (0.61m) 24" (0.61m) 10' (3.05m) 5 cells
66" (1.68m) 24" (0.61m) 10' (3.05m) 5 cells
87" (2.21m) 84" (2.13m) 91' (27.74m) 2×4+1×5 cells
Features of Military Barriers
  • Strong and durable structure
  • Quality geotextile lining
  • Labor saving design
  • Quick and easy to assemble and deploy
  • Long service life
Barrier Applications
  • Perimeter security and defense walls
  • Equipment revetments
  • Personnel and material bunkers
  • Observation points
  • Defensive firing positions
  • Guard posts
  • Protection engineering of seaside areas
  • Border crossing checkpoints
  • Protecting existing structures
  • Flood control retaining wall
Galvanized Welded Military Gabion Box 50x50mm Mesh Hot Dip Galvanized 0
