Galvanized Welded Wire Mesh Gabions High Strength Long Service Life

Certification
China Hebei Nova Metal Wire Mesh Products Co., Ltd. certification
China Hebei Nova Metal Wire Mesh Products Co., Ltd. certification
Hanna..you are FANTASTIC!! I am so happy that I found you.

—— Rich sr

I know I keep repeating myself but words cannot express how grateful we are for your hospitality and generosity. We look forward to doing business with you and helping you build and promote your company and it's capabilities. We are both very excited about the future

—— Craig

I'm Online Chat Now

Galvanized Welded Wire Mesh Gabions High Strength Long Service Life

Galvanized Welded Wire Mesh Gabions High Strength Long Service Life
Galvanized Welded Wire Mesh Gabions High Strength Long Service Life Galvanized Welded Wire Mesh Gabions High Strength Long Service Life

Large Image :  Galvanized Welded Wire Mesh Gabions High Strength Long Service Life

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-008
Payment & Shipping Terms:
Minimum Order Quantity: 50 sets
Price: Negotiable
Packaging Details: Covered with plastic and then put on wooden pallet
Delivery Time: 10-15 days, according to buyer's requirement
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets per week
Detailed Product Description
Material: Galvanized Wire,galfan Wire Wire Diameter: 3.0-6.0mm
Hole Size: 50*50,75*75,50*100 Etc Hole Shape: Square
Surface Treatment: Zinc Coated Feature: High Strength, Long Service Life
Application: Garden Wall, Landscape Size: Can Be Customized
High Light:

gabion rock wall cages

,

gabion planter box

Product Description:



Our gabion stone basket can be field cut to fit curves, culverts, or angles.Unlike competitor's gabions, ours utilize wire stiffeners at all exterior corners of the structure. This reinforces the sides to avoid bulging and also creates a larger opening for easy backfill. The wire gage and length of the welded wire soil reinforcement mats will vary as required for each specific site.

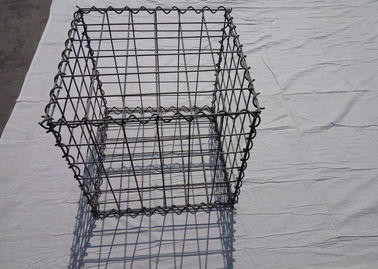

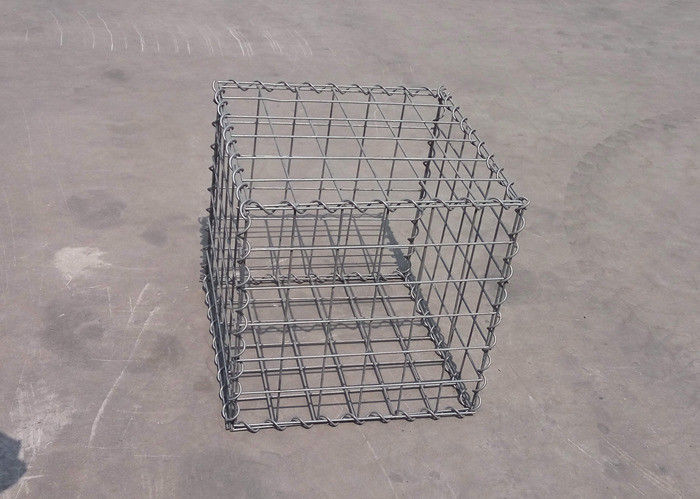

Galvanized Welded Wire Mesh Gabions High Strength Long Service Life 0



Galvanized Welded Wire Mesh Gabions High Strength Long Service Life 1



Welded Gabion specifications
Wire diameter:3.0-6.0mm
Size M Mesh size MM DiaphragmsNo. CBM
1.0*1.0*0.5 50*50 75*75 50*100 100*100 0 0.5
1.0*1.0*1.0 0 1.0
1.5*1.0*0.5 0 0.75
1.5*1.0*1.0 0 1.5
2.0*1.0*0.5 1 1.0
2.0*1.0*1.0 1 2.0
3.0*1.0*0.5 2 1.5
3.0*1.0*1.0 2 3.0
4.0*1.0*0.5 3 2.0
4.0*1.0*1.0 3 4.0
The specifications can be customized.



The Welded Stone Box retaining wall system is a cost-effective and durable way of creating a long-lasting retaining wall, with a decorative facade. The gabion effect is achieved by fixing vertical supports to the exposed face of your precast retaining wall, This can then be filled with any gabion stone filling to create a strong, durable and attractive retaining wall.



How to install welded gabion box:



Step 1
Open the bundle and unfold each unit.
Step 2
Lift the sides, the ends and the diaphragms of each unit into vertical position.
Step 3
Attach the sides of four corners together with locking wire fastener or lacing wire and the diaphragms to the front and back of the gabion.





Applications:



Gabions are used in many situations including the stabilization of earth movement and erosion, river control, reservoirs, canal refurbishment, landscaping and retaining walls. They can be manufactured in welded mesh or woven wire. Welded mesh gabions are faster to erect and do not need tensioning. This allows them to keep their shape, to be free from bulges and depressions and fit easily against the wall.



Galvanized Welded Wire Mesh Gabions High Strength Long Service Life 2



Packing details



Packing: In pallet or in bundle, put in wooden case or cartons,as buyer's requirement.



Galvanized Welded Wire Mesh Gabions High Strength Long Service Life 3



Galvanized Welded Wire Mesh Gabions High Strength Long Service Life 4
