Heavy Zinc Coated Galvanized Wall Basket Square Hole Shape For Gardens / Parks

Certification
China Hebei Nova Metal Wire Mesh Products Co., Ltd. certification
China Hebei Nova Metal Wire Mesh Products Co., Ltd. certification
Hanna..you are FANTASTIC!! I am so happy that I found you.

—— Rich sr

I know I keep repeating myself but words cannot express how grateful we are for your hospitality and generosity. We look forward to doing business with you and helping you build and promote your company and it's capabilities. We are both very excited about the future

—— Craig

I'm Online Chat Now

Heavy Zinc Coated Galvanized Wall Basket Square Hole Shape For Gardens / Parks

Heavy Zinc Coated Galvanized Wall Basket Square Hole Shape For Gardens / Parks
Heavy Zinc Coated Galvanized Wall Basket Square Hole Shape For Gardens / Parks Heavy Zinc Coated Galvanized Wall Basket Square Hole Shape For Gardens / Parks

Large Image :  Heavy Zinc Coated Galvanized Wall Basket Square Hole Shape For Gardens / Parks

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-015
Payment & Shipping Terms:
Minimum Order Quantity: 50 sets
Price: Negotiable
Packaging Details: Covered with plastic and then put on wooden pallet
Delivery Time: 10-15 days, according to buyer's requirement
Payment Terms: T/T, Western Union
Supply Ability: 1000 sets per week
Detailed Product Description
Material: Galvanized Wire,galfan Wire Wire Diameter: 3.0mm
Hole Size: 50*50,75*75,50*100,100*100mm Etc Hole Shape: Square
Surface Treatment: Heavy Zinc Coated Feature: Easy To Install,high Strength
Application: Decorative Gabions Size: Can Be Customized
High Light:

retaining wall gabion cages

,

garden gabion baskets

Product Description:



Gabions are wire mesh baskets that are filled on site with typically stone or rock to form larger building modules (Landscape Designers for Gardens & Parks).



Although gabions could theoretically be manufactured of any type of wire or plastic mesh, the most suitable type of material is galvanized wire or galfan wire, 3.0mm Galvanised wires are best used where the additional PVC coating is not a requirement, such as freshwater river applications and low height retaining walls on dry land where aesthetics are not paramount.

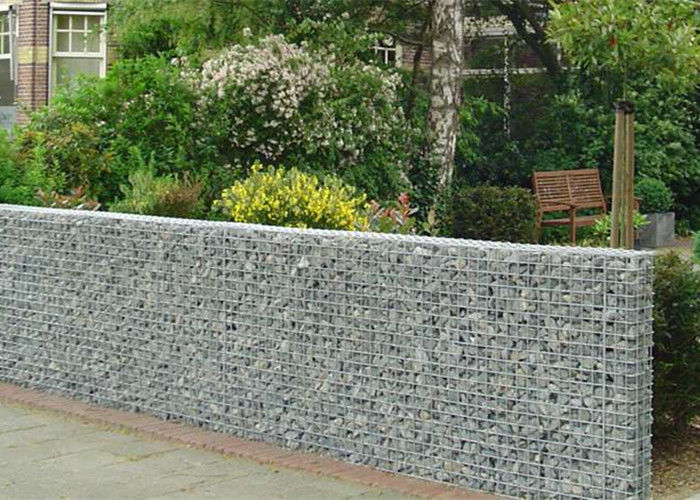

Heavy Zinc Coated Galvanized Wall Basket Square Hole Shape For Gardens / Parks 0



Welded Gabion specifications
Wire diameter:3.0-6.0mm
Size M Mesh size MM DiaphragmsNo. CBM
1.0*1.0*0.5 50*50 75*75 50*100 100*100 0 0.5
1.0*1.0*1.0 0 1.0
1.5*1.0*0.5 0 0.75
1.5*1.0*1.0 0 1.5
2.0*1.0*0.5 1 1.0
2.0*1.0*1.0 1 2.0
3.0*1.0*0.5 2 1.5
3.0*1.0*1.0 2 3.0
4.0*1.0*0.5 3 2.0
4.0*1.0*1.0 3 4.0
The specifications can be customized.



Welded gabion baskets are popular with economical and simple installation performance.

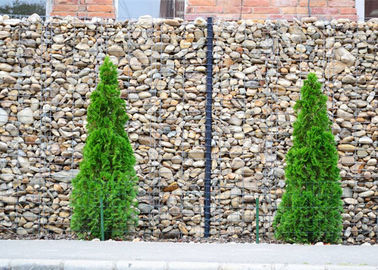

Heavy Zinc Coated Galvanized Wall Basket Square Hole Shape For Gardens / Parks 1



How to install welded gabion box:



1) Foundation preparation


The foundation on which the gabions are to be placed shall be cut or filled and graded as required. Surface irregularities, loose material, vegetation, and all foreign matter shall be removed from foundation surface area. Extra care should be taken with foundation preparations in order to ensure a level and smooth surface.



2) Assembly


Rotate the gabion panels into position and join the vertical edges with fasteners for gabion assembly. Where spiral fasteners are used, crimp the ends to secure the spirals in place. Where C ring type alternate fasteners are used for basket assembly, install the fasteners at a maximum spacing of 150 mm. Use the same fastening procedures to install interior diaphragms where they are required. Interior diaphragms will be required where any inside dimension exceeds 1m for gabion baskets. Diaphragms will be installed to assure that no open intervals are present that exceeds 1m.



3) Placement


Place the empty gabions on the foundation and interconnect the adjacent gabions along the top, bottom, and vertical edges using spirals or C rings.



Modular Assembly



Gabion cages can be built in a modular method by eliminating an end panel for each cage so no two panels need be connected together. The same method may also be used for successive courses including lid and base panels. Interconnect each layer of gabions to the underlying layer of gabions along the front, back, and sides.



4) Filling


Staking of the gabions may be done to maintain the established proper alignment prior to the placement of rock. Connecting lacing wire and other fasteners shall be attached during the filling operation to preserve the strength and shape of the structure.
Internal connecting cross-tile (stiffener) wires shall be placed in each unrestrained gabion cell, including gabion cells left temporarily unrestrained. In welded mesh gabions these crossties or stiffeners will be placed across the corners of the gabions providing diagonal bracing. Lacing wire or preformed wire stiffeners may be used.
The gabions shall be carefully filled with rock, ensuring alignment, avoiding bulges, and providing a compact mass that minimizes voids.
The last layer of rock shall be uniformly leveled to the top edges of the gabions. Lids shall be placed over the rock filling using only approved lid closing tools as necessary. The use of crowbars or other single point leverage bars for lid closing is prohibited due to the potential for damage to the baskets. The gabion lid shall then be secured to the sides, ends, and diaphragms with spiral binders, approved alternate fasteners, or lacing wire wrapped with alternating single and double halfhitches in the mesh openings.



Applications:



Welded gabion baskets can control soil erosion well and provide a neat and very pleasing appearance. So welded gabion baskets are popularly used in road protection and landscape construction.



Heavy Zinc Coated Galvanized Wall Basket Square Hole Shape For Gardens / Parks 2



Packing details



Packing: In pallet or in bundle, put in wooden case or cartons,as buyer's requirement.



Heavy Zinc Coated Galvanized Wall Basket Square Hole Shape For Gardens / Parks 3



Heavy Zinc Coated Galvanized Wall Basket Square Hole Shape For Gardens / Parks 4
