|Wire Diameter:||2.0-4.0mm||Hole Shape:||Hexagonal|
|Feature:||Anti-corrosion, Low Cost||Material:||Galvanized Wire, Pvc Coated Wire|
|Type:||Woven Mesh||Hole Size:||60*80mm|
|Surface:||Galvanized Or Pvc Coated|
bank retaining mesh,
wire rock baskets

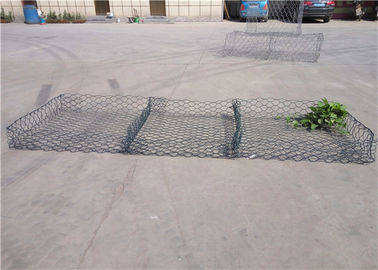

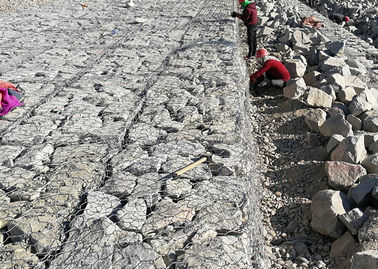

60*80 mm Gabion mattresses for erosion protection / gabion wire mesh baskets
Our gabion wire mesh are made from Class A galvanized mild tensile steel wire in accordance with the SANS 675 specification.
The gabion mesh is hexagonal in shape meeting with the 80×100 mm mesh aperture for gabions with a mesh wire diameter of 2.7mm and selvedge wire of 3.4mm diameter.
Mattresses also have a hexagonal mesh spec. of 80×100mm with 2.5mm mesh wire and 3.0mm selvage wire diameter. All gabions and mattresses use a 2.20mm wire diameter lacing wire which is supplied with the baskets and used to lace together the mesh panels during the erection process.
Mattresses and gabion baskets are also available with a 0.5mm nominal thickness P.V.C. coating to enhance the resistance of the baskets to corrosion of the wire mesh. This provides a overall increase in diameter of 1mm to all wires used in the manufacturing process.
|HEXAGONAL WIRE MESH IN ROLLS (ROCK-FALL NETTING)|
|LENGTH OF ROLL
|WIDTH OF ROLL
|3.00||80 x 100||20||0.50 – 1.00 – 1.50 – 2.00
2.50 – 3.00 - 3.50 – 4.00
Advantages of Rockfall Protection netting:
* Low cost
* Ease of construction
* Free draining
* Easily vegetated
* Flexibility and durability
* High tension and punching stress resistance
Gabions have been around for many years internationally and have a wide range of uses, as beow:
Mass-Gravity Retaining Walls
River canal lining
River training structures
Dam embankment protection structures
Roadway culvert in or outlet structures
Rockfall mesh netting
River diversion structures
Bridge abutment protection.
Packing & Delivery:
Packing Details: In pallet or in bundle, as buyer's requirement.
Delivery Details: 5-10 Days after received the deposit by TT, according to buyer's quantity.
We can offer a range of wire diameters to suit the application.
