High Strength Rockfall Protection Netting / Slope Stabilization Protective Mesh

large.img.alt
small.img.alt small.img.alt

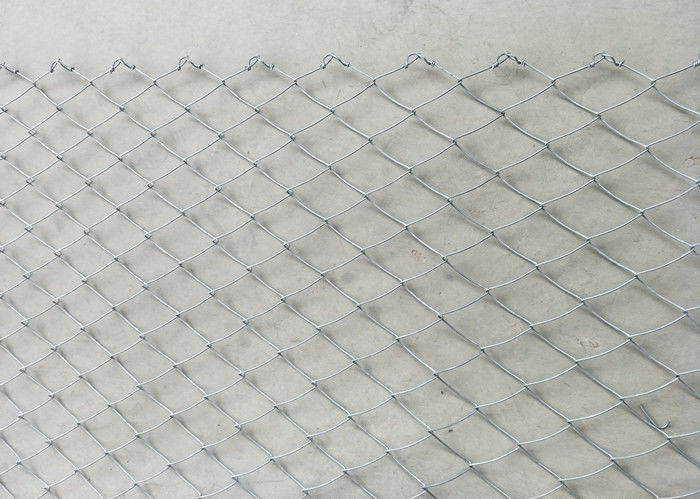

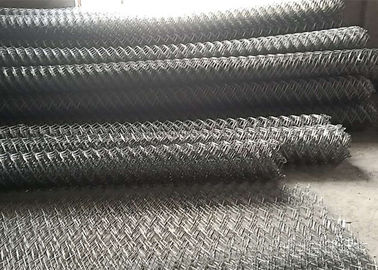

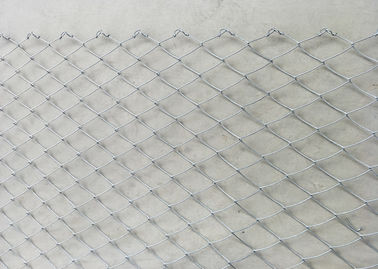

Large Image :  High Strength Rockfall Protection Netting / Slope Stabilization Protective Mesh

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-222
Payment & Shipping Terms:
Minimum Order Quantity: 10 rolls
Price: 5-15 USD/m2
Packaging Details: In bundle
Delivery Time: 20-30 days after received the deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000 Square meters per month
Detailed Product Description
Hole Shape: Diamond Material: High Tensible Carbon Steel
Wire Diameter: 2mm, 3mm Or 4mm Wire Strength: 1770Mpa
Hole Size: G80, G65, G45 Or G40 Tensile Strength: 150KN/m
Width: 1-3.5m
High Light:

rockfall fence

,

metal ring mesh

High Strength Tecco Slope Stabilization System / Slope Stabilization Protective Mesh



Product description:



rockfall protection system Also known as tecco system, consists of five main components, as below:



1). Rockfall protection netting(Tecco mesh)



Rockfall protection mesh is made of high-tensile steel wire with an ultimate tensile strength of 1770 N/mm2.



High Strength Rockfall Protection Netting / Slope Stabilization Protective Mesh 0



2). Claw type Spike Plate



The claw type spike plate is commonly used with nails to fasten the tecco mesh onto the slope firmly. The claw design make the spike plate a more stable and firm structure.



The plates are galvanized and have dimensions of 13.0''*7.5"*0.4"(330mm*190mm*10mm), also can be customized.



High Strength Rockfall Protection Netting / Slope Stabilization Protective Mesh 1



3). Tecco mesh connection fittings



There are 2 types of connection way for Tecco mesh, Clips or Sewing rope.



Connection Clips. The connection clips are used to connect the neighbor tecco mesh rolls firmly, and the connection is commonly without overlap, these claw are hot dip galvanized and consist of 0.25"(6mm) thick steel spiral.



Sewing rope, it's used for connecting the neighbor tecco meshes. And the connection is commonly have overlaps. It can be used to replace the clips.



High Strength Rockfall Protection Netting / Slope Stabilization Protective Mesh 2



4). Soil or rock nails



The main anchors of the system are installed in a grid typically from 6.6 to 13.1 ft (2.0 to 4.0m) horizontal and vertical spacing, Anchor consist of steel bars ranging from 1.0 to 1.25 ft (25 to 32mm).



High Strength Rockfall Protection Netting / Slope Stabilization Protective Mesh 3



5). Boundary rope.



Pass through the tecco mesh and then be fixed onto the anchor for tecco mesh and system stability.



High Strength Rockfall Protection Netting / Slope Stabilization Protective Mesh 4



Surface treatment zinc-aluminum coated, ≥150g/m2
Breaking load of single wire 12.5KN
Inscribed circle diameter 65 mm, 80mm, 45mm, 40mm, 60mm, 55mm, 70mm, 75mm etc.
Roll length 10-30m



Tecco mesh Advantages:



Safety.
The tecco mesh can be used to stabilize any kinds of slope, including rocks and loose soil slopes.



High tensile strength.
The tecco mesh is made of high tensile steel wire, which the tensile strength is more than 1770 MPa, which can supply maximum protection to the slope and people.



Environmental friendly.
The rhomboid mesh can let the plants grow regularly and make the slope or maintain be more beautiful.



Rhomboid mesh structure.
This structure provide most stability for the geological conditions and can be tightly secured on the slope even on the irregular mountains.



Knotted ends.
Different from the chain link fence which has wrapped edge, the tecco mesh has knotted ends which can improve the tensile strength and stability of the structure.



Lightweight.
The tecco mesh has excellent strength-to-weight ratio, which make it easy to install and transport.



Durable.
Heavy zinc coated surface let the tecco mesh has outstanding corrosive resistance performance, and the high tensile strength material make the tecco mesh be used for a long service life.



Tecco mesh Applications:



The whole system is composed of high-strength steel wire, bolt and other installation components, also known as safety netting system, it's widely used to cover and intercept slope reinforcement, to defend various geological disasters. It can not only stabilize the slope and replace the traditional mortar slag stones structure, it is also environmental friendly, which can ensure the plant growth.



High Strength Rockfall Protection Netting / Slope Stabilization Protective Mesh 5
