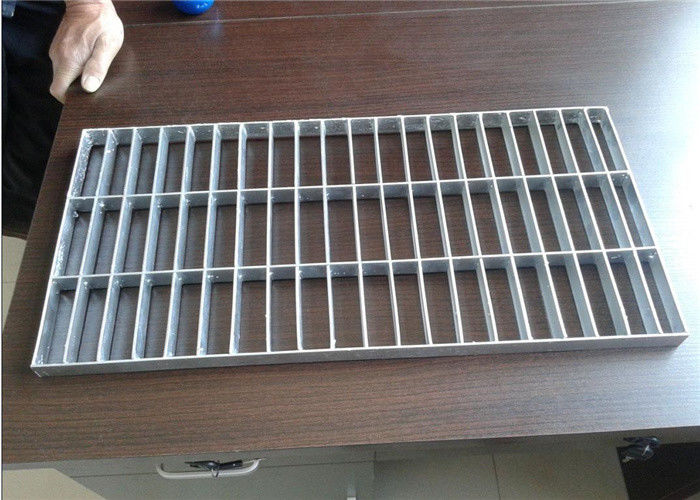

Hot Dipped Galvanised 32 X 5mm 19w4 Welded Bar Grating

Hot Dipped Galvanised 32 X 5mm 19w4 Welded Bar Grating
Hot Dipped Galvanised 32 X 5mm 19w4 Welded Bar Grating

Large Image :  Hot Dipped Galvanised 32 X 5mm 19w4 Welded Bar Grating

Product Details:
Place of Origin: CHINA
Brand Name: NOVA
Payment & Shipping Terms:
Minimum Order Quantity: 5 Ton/Tons
Price: $29.68 - $59.87/ Ton
Packaging Details: 1. packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.there are four or six pieces of M10 long bolt penetrading the gratings and screwing together
Delivery Time: Quantity(Tons) 1 - 1200 >1200 Est. Time(days) 30 To be negotiated
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Ton/Tons per Week
Detailed Product Description
Material: Lower Carbon Steel Steel Grating Size: 3'x20', 3'x24', 3'x30'
Steel Bearing: 30,40,60,100mm Surface Treatment: Mild, Galvanized,power Coating
Application: Trench Drains,Driveway Road,Garage Trench Drain Specification: 19-w-4, 15-w-2, 30/100, 40/50
Pitch Of Bearing Bar: 15-30mm, 40mm, 60mm, 80mm, 90mm Etc. With 30, 40mm Rec Pitch Of Cross Bar: 30, 38, 50, 76, 100mm Etc. With 50, 100mm Recommended.
High Light:

hot dipped galvanised welded bar grating

,

32 x 5mm welded bar grating

,

19w4 welded bar grating

    Hot Dipped 32 x 5mm Galvanized Steel Grating/hot dipped galvanized steel grating/ stainless steel heavy duty steel grating





product name steel grating , steel grille
Material Standard Low carbon steel (ASTM A36, A1011, A569, S275JR, SS304, SS400,UK: 43A)
Bearing bar 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm,or as customers’ requirement.
Bearing bar pitch 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm,or as customers’ requirement.
Cross bar 5x5, 6x6, 8x8mm (twisted bar or round bar)
Cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’ requirement.
Surface treatment Black, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers’ requirement.
Flat bar type Plain, Serrated (tooth-like), I bar (I section)
Galvanizing standard CN: GB/T13912, US: ASTM (A123), UK: BS729
Steel grating standards

A. China: YB/T4001-1998

B. USA: ANSI/NAAMM (MBG 531-88)

C. UK: BS4592-1987

D. Australia: AS1657-1988

E: Japan:JJS



Hot Dipped Galvanised 32 X 5mm 19w4 Welded Bar Grating 0

Cross Rod Pitch load Bar Pitch load Bar Specification(Width×Thickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 - G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Cross Rod Pitch load Bar Pitch load Bar Specification(Width×Thickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50



Hot Dipped Galvanised 32 X 5mm 19w4 Welded Bar Grating 1

Steel grating is widely used in parking lot,walkways, platforms, stairs, fences for mining industry, power plants, Petrochemical industry, machinery, light industry, railways, bridges, docks, schools, water plants, sewage treatment plants, etc.

Hot Dipped Galvanised 32 X 5mm 19w4 Welded Bar Grating 2

Packing details

1. wooden pallet

2.as customer'r demand

Port: Tianjin or as customer's requirement

Lead time: 10-15 days after payment

Hot Dipped Galvanised 32 X 5mm 19w4 Welded Bar Grating 3

1.Is your company near the train station or airport?Yes.Our company is close to the Peking Airport and Hengshui North Station.We can pick you up at the station or airport.
2.Can you provide samples for free?
Of course we can.
3.What are your payment terms?
T/T,L/C,Western Union or Credit card.
4.How long have you been in this field?
More than 15 years.
