Galvanized Steel Ring Mesh 8.0mm Wire Diameter 300mm Mesh Size

Large Image : Galvanized Steel Ring Mesh 8.0mm Wire Diameter 300mm Mesh Size

Product Details:

Place of Origin:	China
Brand Name:	Nova
Certification:	ISO9001
Model Number:	Nova-237

Payment & Shipping Terms:

Minimum Order Quantity:	1 square meter
Price:	1-50US$/m2
Packaging Details:	In Roll
Delivery Time:	10-15 days after received the deposit
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	10000 square meters per month

Contact Now

Galvanized Steel Ring Mesh 8.0mm Wire Diameter 300mm Mesh Size

Description

Material::	Galvanized Steel Wire	Type::	Ring Mesh
Weave Style::	Plain Weave	Wire Diameter::	8.0mm
Mesh Size::	300mm	Color::	Sliver
Highlight:	rockfall fence , metal ring mesh

Hot Dipped Galvanized Steel Metal Ring Mesh Plain Weave Slope Stabilization System

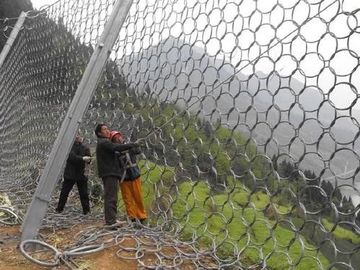

Ring Net System Slope Stabilization System

The Steel Ring Net System is a specialized passive protection system with higher strength than standard systems. It effectively intercepts rockfall, avalanches, and debris flows in mountainous terrain, protecting buildings and infrastructure from damage.

The ring network is formed by single wires with overlapping ends (minimum 100mm). Rings are secured with steel or aluminum alloy fasteners using at least three uniformly distributed locking hoops, including one at each joint end. Each ring connects with four surrounding rings.

Standard Specifications of Rockfall Barrier System

Item	Net Size	Supporting Rope	Upper Anchor Rope	Anchor Rope	Sewing Rope	Loading Capacity
RX-025	Wire diameter: 8mm Mesh size: 250mm × 250mm	12mm double steel wire rope 3 decompression rings per spacer	16mm single steel wire rope 1 decompression ring	12mm single steel wire rope	8mm	≤ 250 kJ
RX-050	Wire diameter: 8mm Mesh size: 200mm × 200mm	16mm double steel wire rope 6 decompression rings per spacer	14mm single steel wire rope 1 decompression ring	16mm single steel wire rope	8mm	≤ 500 kJ
RX-075	Wire diameter: 8mm Mesh size: 150mm × 150mm	18mm double steel wire rope 10 decompression rings per spacer	18mm single steel wire rope 2 decompression rings	18mm single steel wire rope	8mm	≤ 750 kJ
RXI-025	5 rings Wire diameter: 3mm Circle diameter: 300mm	18mm single steel wire rope	16mm single steel wire rope	16mm single steel wire rope	8mm	≤ 250 kJ
RXI-050	7 rings Wire diameter: 3mm Circle diameter: 300mm	22mm single steel wire rope	18mm single steel wire rope	18mm single steel wire rope	8mm	≤ 500 kJ
RXI-075	5 rings Wire diameter: 3mm Circle diameter: 300mm	16mm double steel wire rope 6 decompression rings total	14mm single steel wire rope 1 decompression ring	14mm single steel wire rope	8mm	≤ 750 kJ
RXI-100	9 rings Wire diameter: 3mm Circle diameter: 300mm	18mm double steel wire rope 6 decompression rings total	16mm single steel wire rope 1 decompression ring	16mm single steel wire rope	12mm	≤ 1000 kJ
RXI-150	12 rings Wire diameter: 3mm Circle diameter: 300mm	22mm double steel wire rope 6 decompression rings total	18mm single steel wire rope 1 decompression ring	18mm single steel wire rope	12mm	≤ 1500 kJ
RXI-200	19 rings Wire diameter: 3mm Circle diameter: 300mm	18mm double steel wire rope 8 decompression rings total	18mm single steel wire rope 1 decompression ring	18mm single steel wire rope	14mm	≤ 2000 kJ

Key Features of Slope Stabilization Mesh

High flexibility and strength for superior protection
Easy installation and adaptability to any terrain
Ideal for broken mountain slopes and challenging landscapes

Applications

Protection and stabilization of steep slope surfaces
Static and dynamic load support on weak subgrade soils
Multi-layered earth-retaining and water-retaining structures
Dike or retaining wall construction
Composite retaining walls for slope protection and load bearing
Free standing walls, docks, and breakwaters
