Hot Dipped Galvanized Gabion Mesh 2.0-4.0mm Wire Diameter 60x80mm Hole

Hot Dipped Galvanized Gabion Mesh 2.0-4.0mm Wire Diameter 60x80mm Hole
Hot Dipped Galvanized Gabion Mesh 2.0-4.0mm Wire Diameter 60x80mm Hole Hot Dipped Galvanized Gabion Mesh 2.0-4.0mm Wire Diameter 60x80mm Hole

Large Image :  Hot Dipped Galvanized Gabion Mesh 2.0-4.0mm Wire Diameter 60x80mm Hole

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-107
Payment & Shipping Terms:
Minimum Order Quantity: 3000 square meters
Price: 1-50US$/m2
Packaging Details: Covered with plastic, in pallet.
Delivery Time: 5-10 days, according to buyer's requirement
Payment Terms: T/T,Western Union
Supply Ability: 100000 square meters per week
Contact Now

Hot Dipped Galvanized Gabion Mesh 2.0-4.0mm Wire Diameter 60x80mm Hole

Description
Wire Diameter: 2.0-4.0mm Type: Woven Mesh
Hole Size: 60*80mm Surface: Galvanized Or Pvc Coated
Material: Low-Carbon Iron Wire,Galvanized Iron Wire,Plastic Coated Iron Wire,Stainless Steel Wire Surface Treatment: Galvanized+PVC Coated,PVC Coated,galfan,Hot Dipped Galvanized
Highlight:

bank retaining mesh

,

woven gabion baskets

Hot Dipped Rock Baskets Wire Mesh Low Carbon Iron Wire ISO9001 Approved
Hot dipped galvanized gabion rock wire mesh / gabion wire mesh for retaining wall
Retaining walls hold back earth on slopes and hills, preventing erosion and soil movement. These structures are commonly used in landscaping applications for gardens, driveways, roads, and other outdoor features. Wire and rock retaining walls provide a cost-effective solution, with gabion baskets offering superior performance and ease of installation.
Product Specifications
Length (m) Width (m) Height (m) Spacer number Volume (m²) Tolerance range
2.0 1.0 0.15-0.3 1 0.3-0.6 Length: ±3%
Width: ±5%
Height: ±5%
3.0 1.0 0.15-0.3 2 0.45-0.9
4.0 1.0 0.15-0.3 3 0.6-1.2
2.0 1.0 0.5 1 1.0
3.0 1.0 0.5 2 1.5
4.0 1.0 0.5 3 2.0
1.0 1.0 1.0 0 1.0
1.5 1.0 1.0 0 1.5
2.0 1.0 1.0 1 2.0
3.0 1.0 1.0 2 3.0
4.0 1.0 1.0 3 4.0
Gabion Mesh Advantages
  • Cost-effective and environmentally friendly solution
  • Blends harmoniously with natural surroundings
  • Simple and speedy installation process
  • Flexible structure that can deform without cracking, maintaining stability during movement or settlement
  • Enhanced resistance to natural forces due to superior tensile strength
  • Easy to repair with minimal expense
Installation Guide: Building a Retaining Wall
Step 1: Planning
Measure and record the width, height, and length of the area where you will build the retaining wall. Select appropriate gabion sizes based on your requirements.
Step 2: Site Preparation
Use a shovel and rake to level the area where you will place the gabions, ensuring a stable foundation.
Step 3: Gabion Placement

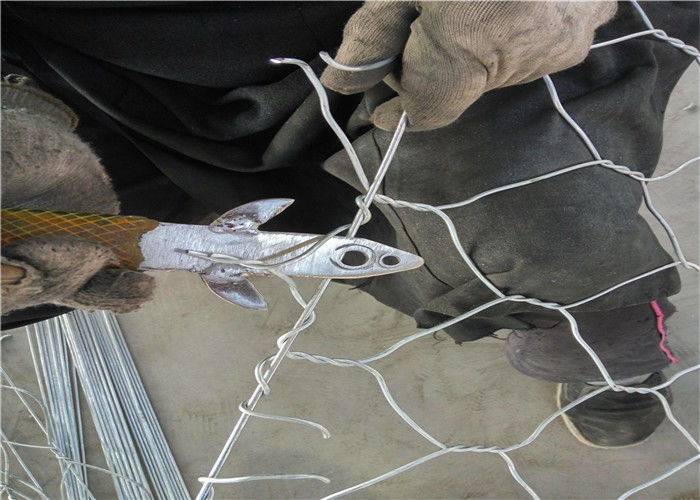

Position the gabions along the planned retaining wall line. Secure them together using steel wire and pliers.
Step 4: Rock Filling
Fill each gabion completely with rocks. Ensure the rocks have a larger diameter than the wire mesh openings to prevent them from falling out.
Hot Dipped Galvanized Gabion Mesh 2.0-4.0mm Wire Diameter 60x80mm Hole 0

Tag:

bank retaining mesh,

wire rock baskets,

woven gabion baskets
