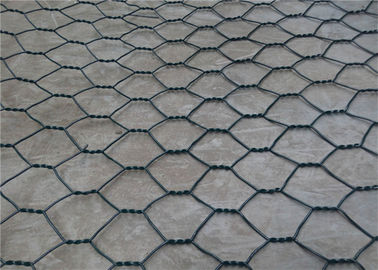

PVC Coated Gabion Basket and Reno Mattresses For Flood Protection

large.img.alt
small.img.alt small.img.alt

Large Image :  PVC Coated Gabion Basket and Reno Mattresses For Flood Protection

Product Details:
Place of Origin: China
Brand Name: Nova
Certification: ISO9001
Model Number: Nova-209
Payment & Shipping Terms:
Minimum Order Quantity: 1000 sets
Price: Negotiable

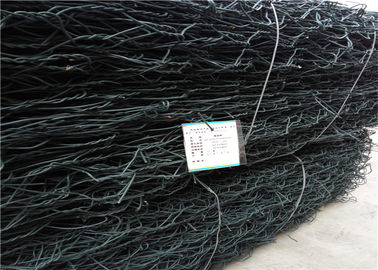

Packaging Details: Covered with plastic, in pallet.
Delivery Time: 5-10 days, according to buyer's requirement
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets per week
Detailed Product Description
Wire Diameter: 2.0-4.0mm Aperture Sizes: 60*80,80*100,100*120,120*150mm Etc
Type: Hexagonal Mesh Material: Galvanized Iron Wire,galvanized Steel Wire
Length: 2m,3m,4m,6m Width: 1m, 2m
Name: PVC Coated Gabion Basket And Reno Mattresses For Flood Protection
High Light:

metal welded wire mesh

,

landscape rock cages

PVC Coated Gabion Basket and Reno Mattresses For Flood Protection



Product Description:



Gabions are an ideal choice for river erosion control as well as coastal management and as sea levels are rising, there is an increased risk to coastal communities. The PVC coated wire mesh used to make Gabions and Renos is one of the few construction materials that can withstand highly corrosive marine environments. Gabions and Renos have an advantage over traditional construction materials such as concrete because they are extremely strong and will not be washed away. They are also permeable and are flexible enough to conform to ground movement, as well as helping to dissipate and slow the water flow.



Gabions basket sizes: 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m etc.


Reno mattress sizes: 3m*1m*0.17m, 3m*1m*0.25m, 4m*1m*0.25m, 4m*1m*0.3m, 6m*2m*0.23m, 6m*1m*0.3m etc.



Specification of River Mattress

Length(m) width(m) height(m) Diaphragm quantity
3m 1m 0.15-0.45 2
4m 1m 0.15-0.45 3
5m 1m 0.15-0.45 4
6m 1m 0.15-0.45 5



Gabion mesh Features:



ENVIRONMENTAL FRIENDLINESS–Gabions and Reno mattresses are environmentally friendly products.



PERMEABILITY–The stone fill allows the water to seep through the structure while retaining the soil, therefore no additional drainage is required to relieve the hydrostatic pressures.



EASY TO BUILD–Gabions and Reno mattresses construction does not require skilled labor because they are very easy to build.



Gabion basket and mattress applications:



Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area.



How to built gabion mattress?



Step 1 Reno Mattress Erosion Control


Individual Mattress is first unfolded on flat, hard ground and stamped to remove all kinks. The two long sides and both end panels are then lifted upright and secured in position by tying the selvedge wires together.



Step 2 Reno Mattress Assembly


The vertical edges of all internal diaphragms are attached to the sides and laced with typing wire or approved interlocking wire fastener.



Step 3 Reno Mattress Slopes River Beds


The assembled Mattress is then aligned in the required position and tied or fastened to adjacent mattress along the whole length of selvedge wire. Mattress units should be placed in proper position so that movement of rock fill inside the cage -- due to gravity or flowing current -- is minimal. Thus, on slopes, Mattresses should be placed with its internal diaphragms at right angles to the direction of the slope. On river beds, position Mattress with the internal diaphragms at right angles to the direction flow.



Step 4 Reno Mattress Hexagonal Mesh


The stone is placed into the compartments (cells). If it's a slope, start from the bottom. One or more Mattresses can be filled at the same time.



Step 5 Reno Mattress Erosion Control


Sequence the installation by keeping the stone filling crew well ahead of the lid placement crew. Lids or top panels must be securely tied or fastened to side-tops and end panels and also to the top of the inner partitions.



Step 6 Reno Mattress Form Cut Assembly


The Mattresses may be either telescoped or cut to form and tied at required shape when necessary, e.g. when Mattresses are laid on a radius. For a sharp curve, it may be necessary to cut the Mattress diagonally into triangular sections and tie the open side securely to an intact side panel.



When requesting a quote, please specify:


size of units (LxWxH)
type of mesh size (60*80,80*100mm)
type of coating (galvanized wire, galfan wire,pvc coated wire)
Wire diameter(2mm,3mm)
